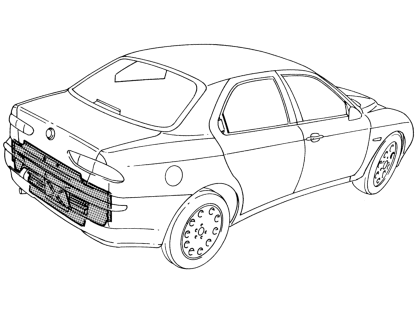

Rear trim

Operation 7210B70 · Structure elements-central and rear part

Removal

Check if any of the connected parts are deformed by checking body alignment dimensions. Use appropriate measurement tools (reference rigs, templates or gauges).

Straighten the body if necessary.

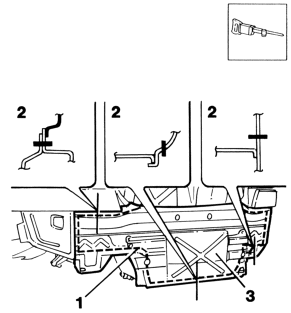

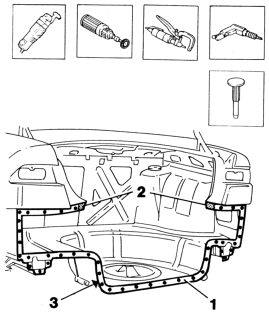

1 Use a pneumatic saw to follow the dotted cutting lines shown in the figure.

2 Cross-sections of key areas as a guide to allow the operator to adjust cutting position and depth in order to avoid damage to the underlying panels.

3 Remove the rear trim from the car.

Use a vibrating cutter with appropriate blade to remove P.V.C. from the cut end of the car rear trim.

Use a rotary brush to remove paint to gain access to the weld spots.

1 Use a chamfering machine to remove the weld spots shown in the figure.

Drill out any weld spots not accessible to the chamfering machine.

2 Use an oxyacetylene torch and steel brush to remove the braze welding.

Use a chisel and hammer to remove spots ground previously.

3 Remove the cut edge of the trim from the car.

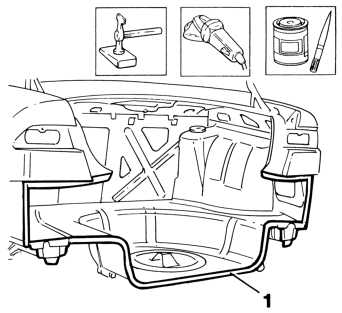

1 Straighten the edges using a mallet and profiled stake.

Use a grinding wheel to remove the weld spot residues.

Apply the electric weld paint finish.

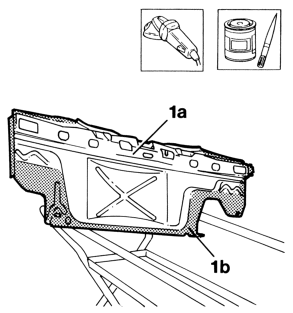

1 Use a grinding wheel to remove the corrosion-proofing 1b from around the edge of the part 1a.

Apply electrogalvanised paint to the edges in contact with the car.

Refitting

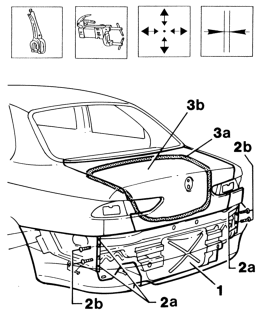

1 Position the part correctly on the car and secure using self-locking grippers.

2 Tack the part by carrying out some spot welds 2a. Then drill out and screw in Parker screws 2b.

Remove the self-locking clips.

3 Provisionally position rear bumpers, boot lid sealing strip 3a and boot lid 3b.

Check alignment and ensure the surrounding gap is even.

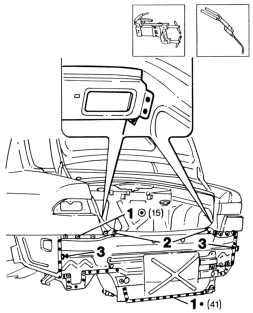

1 Use a spot welder to weld the areas shown in the figure.

2 Use an oxyacetylene torch to hard-solder the contact edges between rear trim and wings.

3 Crimp the tabs shown.

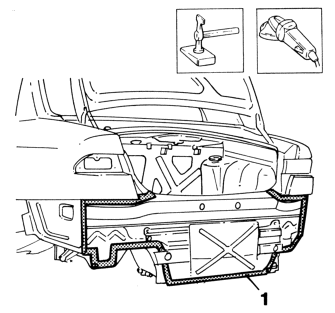

1 Correct any deformations in the panel using a profiled stake and mallet.

Use a grinding wheel to clean and level the newly-welded areas.

Apply rust-proofing to newly welded areas.

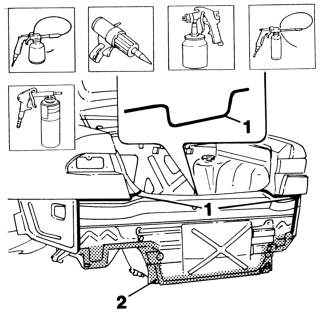

1 Seal the joint lines.

Apply paint and wax.

2 Reapply the PVC treatment.
