Rear trim (S.W.)

Operation 7210B70 · S.W. · Structure elements-central and rear part

Removal

See Op. 7210E56 Tail-gate

Check if any of the connected parts are deformed by checking body alignment dimensions. Use appropriate measurement tools (reference rigs, templates or gauges).

Straighten the body if necessary.

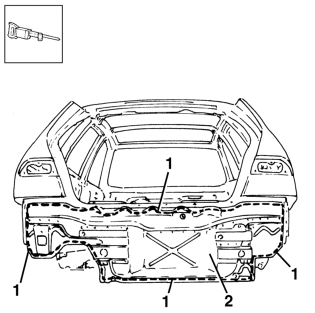

1 Using a power saw, cut along the edge of the rear trim.

2 Remove the trim.

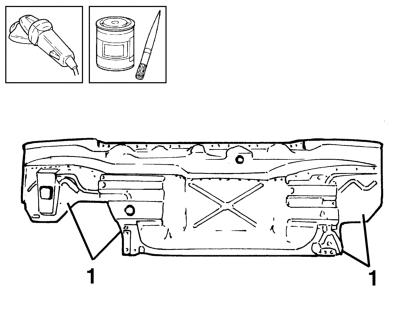

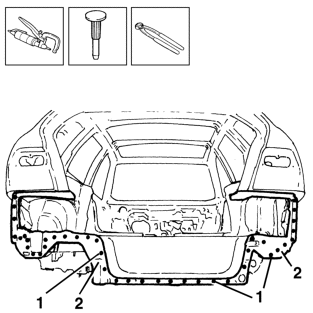

1 Dress down the spot welds on the edges of the trim.

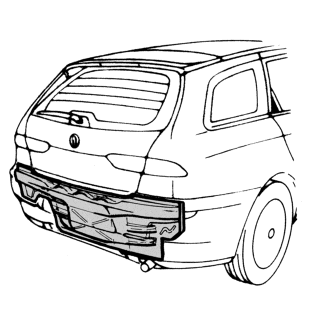

2 Remove the excess from the panel.

Use a grinding wheel to remove the weld spot residues.

Use a rotary brush to clean treated areas.

Straighten the outer edges.

Apply electroweldable paint to the areas to be welded.

1 Use a rotary brush to remove the rust-proofing from around the edge of the part.

Apply electroweldable paint finish to the affected parts.

Refitting

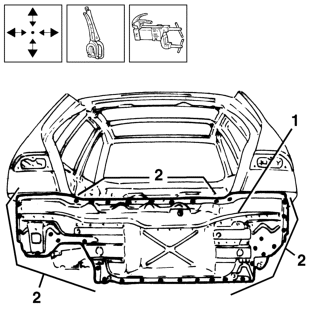

1 Correctly position the replacement part on the bodyshell, align it and secure it using self-locking clamps.

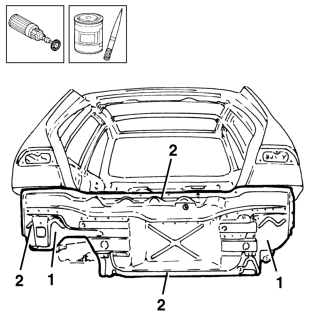

2 Use a spot welder to weld the trim in the areas shown in the figure.

Check that the welded parts are correctly aligned.

1 Level the spot welds using a disc grinder.

Use a brush to clean the areas concerned.

2 Apply rust-proofing to the newly welded areas.

See Op. 7210E56 Tail-gate
