BRAKE PEDAL - R+R MANUAL GEARBOX VERSIONS

Operation 3330B22 · PEDAL UNIT

Removing

Ensure that the ignition key is in the OFF position, then disconnect the negative battery terminal (-).

Proceed with removal

- 5550D10 brake light switch - r+r

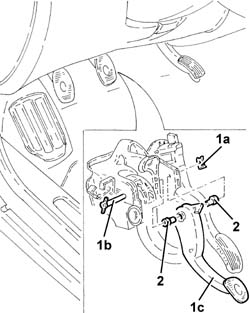

1. Release the retaining clips (1a) and disengage the brake pump (1b) from the brake pedal.

Take care not to damage the retaining clips.

1. Remove the stop clip (1a) and partially withdraw the bolt (1b) until the brake pedal (1c) is removed.

2. Recover the bushes.

Refitting

Refit in its seating the brake pedal complete with bushes, then secure it with the bolt and retaining clip.

Refit the brake pump in its seating, connecting it to the brake pedal.

Proceed with refitting

- 5550D10 brake light switch - r+r

Connect the negative (-) battery terminal
