CRANK CASE OIL SUMP

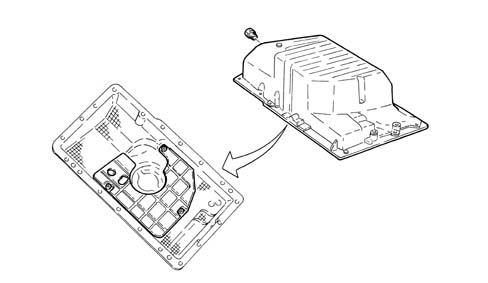

Description 1020A

2.0 JTS

CONSTRUCTION FEATURES

Made out of aluminium alloy, this is a structural part of the engine which, in addition to containing the engine oil, has mechanical functions as it is directly connected to the intermediate shaft support.

Baffles are fitted inside the sump.

When the oil sump is secured to the crankcase, sealant is interposed.

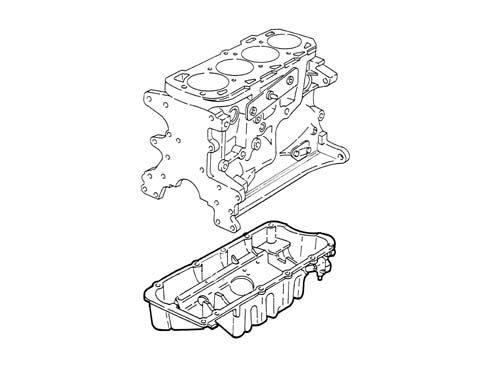

3.2 V6

CONSTRUCTION FEATURES

In aluminium alloy with baffles inside.

It is fastened to the crankcase with special sealant in between.

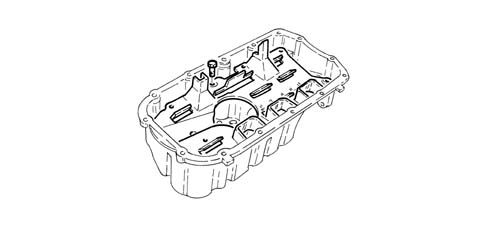

1.9 JTD 16V

CONSTRUCTION FEATURES

This is a structural part of the engine which, in addition to containing the engine oil, has mechanical functions as it is directly connected to the intermediate shaft support.

The aluminium alloy oil sump contains special partitions which prevent the engine oil from moving around too vigorously and possibly draining the pump.

There is a reinforcement plate in the lower part of the sump by the groove for housing the front section of the exhaust pipe designed to restrain the exhaust pipe in the case of sudden impacts.
