OIL SEALS ON CRANK SHAFT
CONSTRUCTION FEATURES

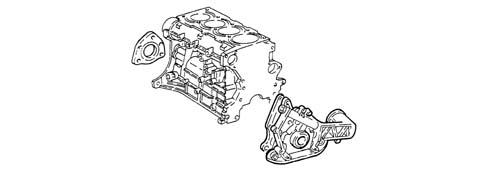

The crankshaft front seal is produced by an oil seal fitted on the front cover (oil pump casing).
The crankshaft rear fluid-tightness is ensured by an oil seal incorporated in the rear cover.
CONSTRUCTION FEATURES

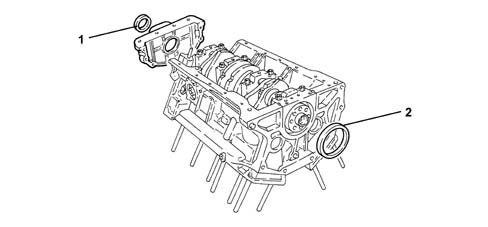

The crankshaft front seal (1) and rear seal (2) are achieved by oil seals fitted directly on the relevant covers.
The seal between rear main journal cap and crankcase is achieved by silicone sealant.
CONSTRUCTION FEATURES
The crankshaft front fluid-tightness is ensured by an oil seal fitted on the front cover (oil pump casing).
The crankshaft rear fluid-tightness is ensured by an oil seal incorporated in the rear cover.
