Group 21 - Gearbox - Differential
- Make
- Alfa Romeo
- Model
- GTV / Spider GTV and Spider (916) Factory Service Manual
- Year
- 1995–2000
- Section
- Specific tools › Group 21 - Gearbox - Differential
00 Technical data and maintenanceGroup 21 - Gearbox - Differential
Group 21 - Gearbox - Differential
| Part Description | |
|---|---|
| 1.820.018.000 | Half rings for: - removing transmission shaft rear bearing - removing transmission shaft 4th speed driving gear |
| 1.820.023.000 | Half plate for: removing secondary shaft front bearing |
| 1.820.024.000 | Half rings support plate (to be used with 1.820.018.000) |
| 1.820.043.000 | Half rings for: - removing secondary shaft 4th speed driven gear - removing secondary shaft rear bearing |
| 1.820.046.000 | Half rings for: - removing secondary shaft 2nd and 3rd speed driven gears - removing secondary shaft 2nd speed synchronizer - removing secondary shaft 1st speed driven gear hub-sliding sleeve |
| 1.820.047.001 | Half ring support plate (to be used with 1.820.043.000) |
| 1.820.047.003 | Half ring support plate (to be used with 1.820.046.000) |
| 1.820.085.000 | Tool for measuring thickness of differential carrier bearing adjustment ring |
| 1.820.125.000 | Spindle for checking differential backlash |
| 1.820.146.000 | Gearbox support plate on revolving stand |
| 1.820.208.000 | Support for removal/refitting gearbox (to be used with 1.820.230.000) |
| 1.820.226.000 | Engine support (to be used with 1.820.239.000 and 1.820.581.000) |
| 1.820.229.000 | Flange (to be used with 1.821.161.000) |
| 1.820.230.000 | Brackets for removal/refitting gearbox (to be used with 1.820.208.000) |
(CONTINUED)

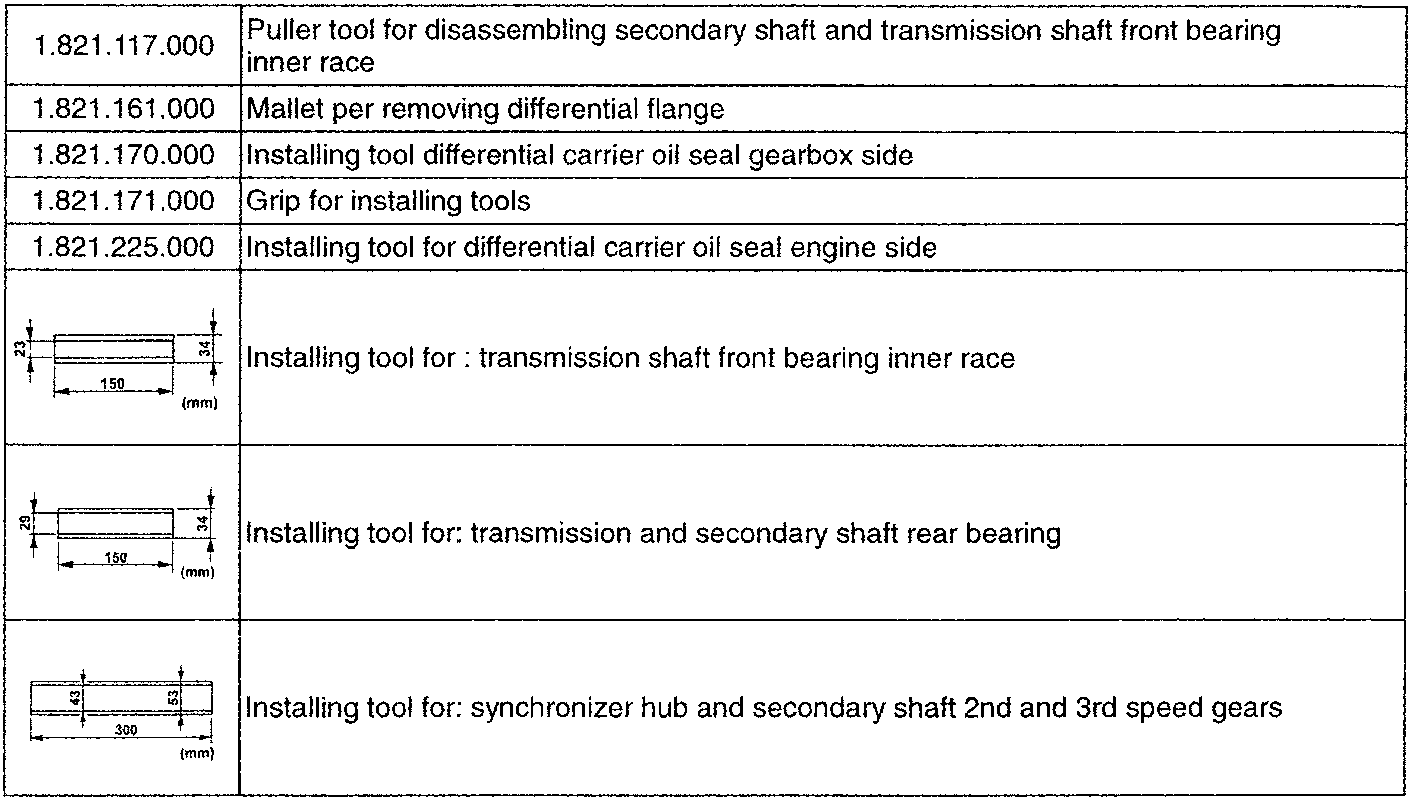

| Part Description | |
|---|---|
| 1.821.117.000 | Puller tool for disassembling secondary shaft and transmission shaft front bearing inner race |
| 1.821.161.000 | Mallet per removing differential flange |
| 1.821.170.000 | Installing tool differential carrier oil seal gearbox side |
| 1.821.171.000 | Grip for installing tools |
| 1.821.225.000 | Installing tool for differential carrier oil seal engine side |
|
Installing tool for: transmission shaft front bearing inner race |
|
|
Installing tool for: transmission and secondary shaft rear bearing |
|
|
Installing tool for: synchronizer hub and secondary shaft 2nd and 3rd speed gears |
