44 Suspension and wheelsChieks and inspections · page 2 of 2

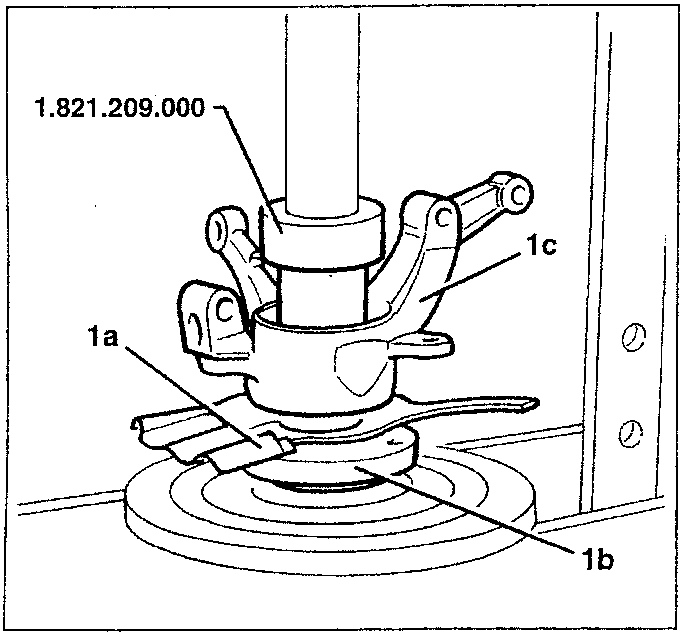

  1. Arrange the brake disk protection (1a) on the wheel hub (1b) then, working under the press and overturning installing tool no. 821.209.000 compared with the previous step, insert the hub in the wheel upright (1c).
Diagram showing brake disk protection (1a) on wheel hub (1b), with installing tool 1.821.209.000 and wheel upright (1c).

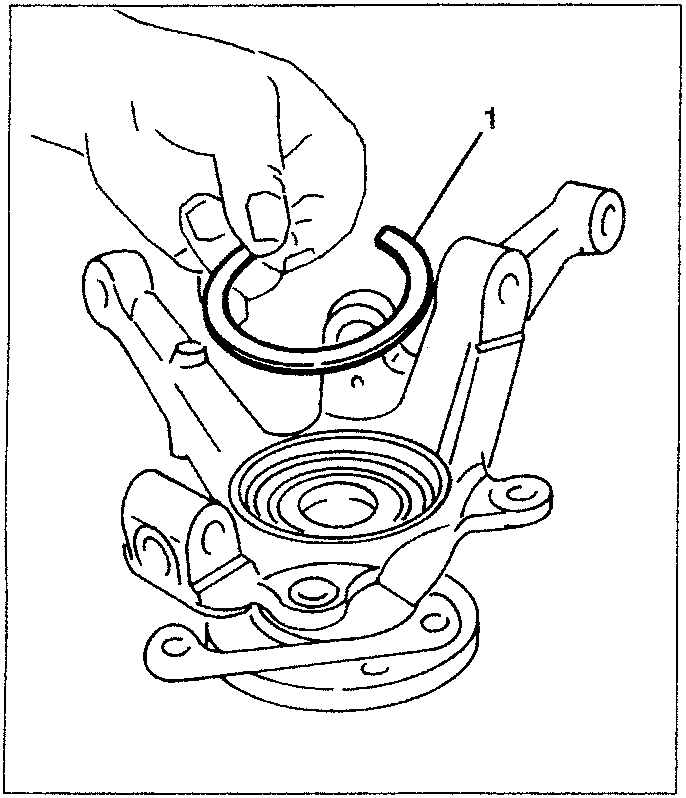

  1. Assemble, in the seat provided on the wheel upright, the flexible bearing retainer ring.
Diagram showing a hand placing a flexible bearing retainer ring (1) onto a wheel upright component.

Only for 6-cylinder vehicles

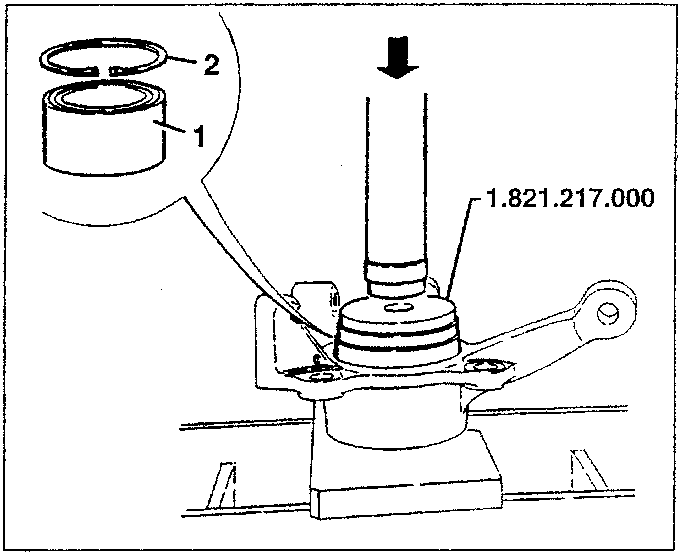

  1. Working under the press and using installing tool no. 1.821.217.000, insert the bearing in the wheel upright.
Diagram showing a bearing (1) with retainer ring (2) being inserted into a wheel upright using installing tool 1.821.217.000.
  1. In the seat on the wheel upright, install flexible bearing retainer ring.

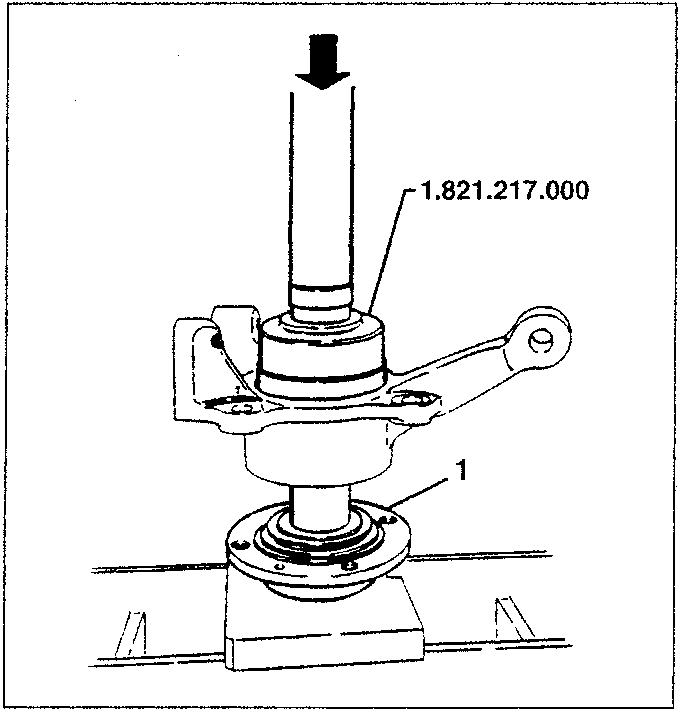

  2. Working under the press and using installing tool no.. 1.821.045.000, insert the hub in the wheel upright.
Diagram showing a hub (1) being inserted into a wheel upright using installing tool 1.821.217.000.
