Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)14 · 50 Heating, ventilation and air conditioning
14 · Heating & A/C

Disassembly (page 2 of 3)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Automatic climate control
50 Heating, ventilation and air conditioningDisassembly · page 2 of 3
Diagram showing components of the air mixing motor and linkage assembly with numbered parts
  1. Remove the air mixing motor.
  2. Remove the air distribution motor.
  3. Take the motor shaft.
  4. Remove the control linkage cover.
  5. Remove the linkage assembly .
  6. Remove the air intake motor.
  7. Take the control lever.

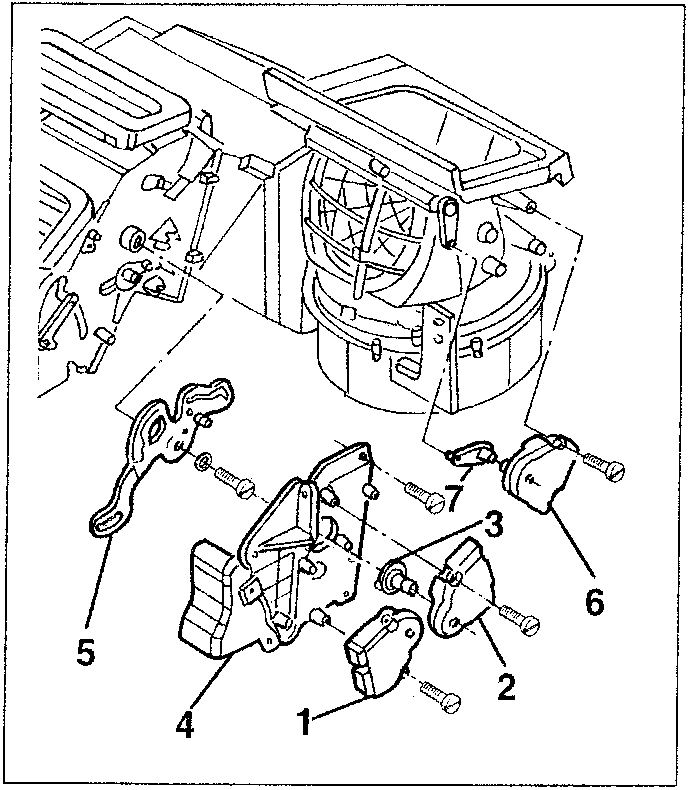

Diagram showing components of the control lever and linkage assembly with numbered parts

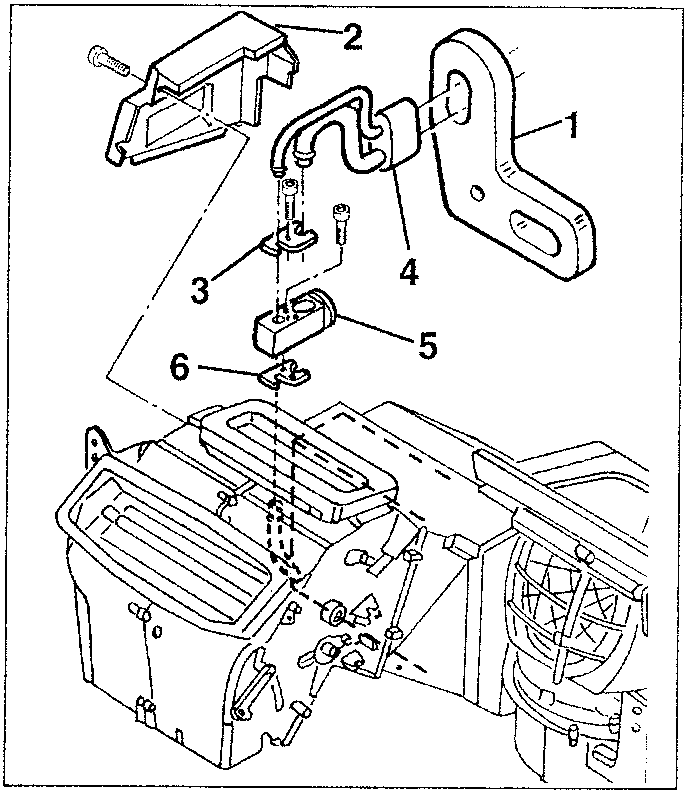

Diagram showing components of the expansion valve and evaporator assembly with numbered parts
  1. Use tool 1.823.014.000 to remove the half unit fastening pegs.
  2. Remove the lower half unit.
  3. Remove the evaporator.
  4. Remove the rubber protection.
  5. Remove the expansion valve cover.
  6. Remove the upper plate.
  7. Remove the coolant pipe fittings.
  8. Remove the expansion valve.
  9. Take the lower plate.
