Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)14 · 50 Heating, ventilation and air conditioning
14 · Heating & A/C

Disassembly (page 3 of 3)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Automatic climate control
50 Heating, ventilation and air conditioningDisassembly · page 3 of 3

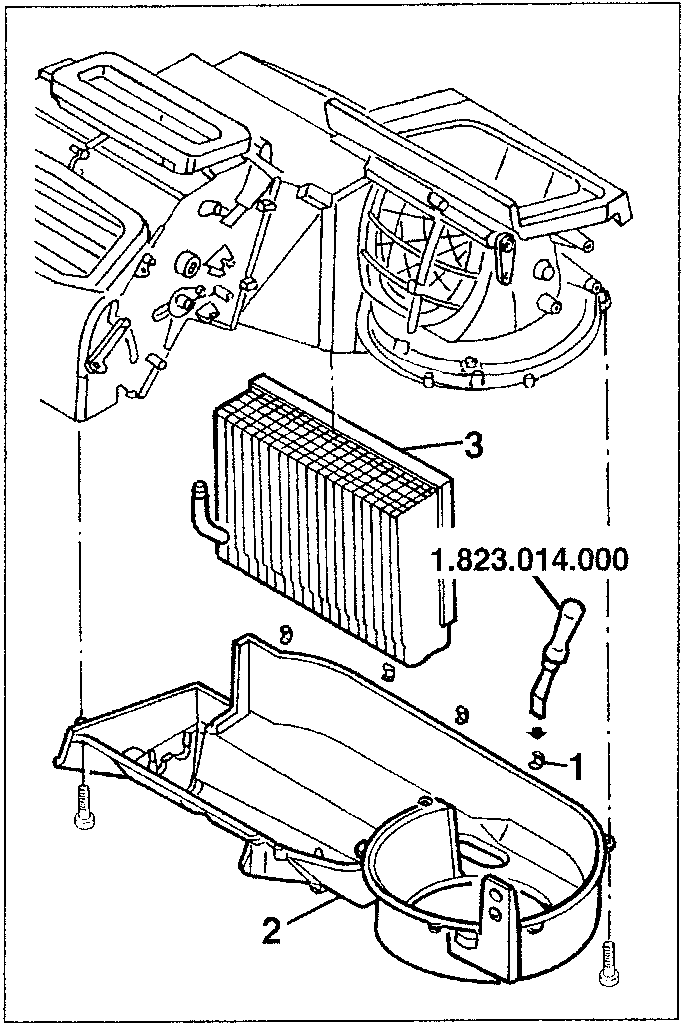

Diagram showing disassembly of air conditioning components including rubber guard, seal, fastening screw, air manifold, and recirculation flap.
  1. Cut the rubber guard.
  2. Cut the seal.
    3. Work with care to refit guard and seal by closing the two edges of the cut.
  3. Loosen the fastening screw.
  4. Remove the air manifold.
  5. Separate the two air manifold half casings.
  6. Remove the recirculation flap from the respective pin.

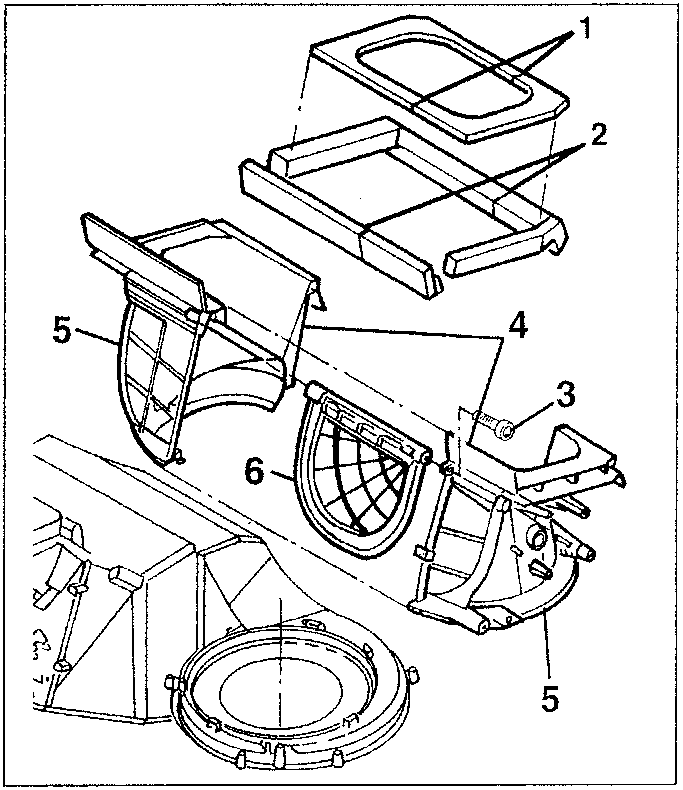

Diagram showing disassembly of upper half casing, seals, mixing flap, lower distribution flap, front distribution flap, and upper distribution flap.
  1. Loosen the upper half casing fastening screw.
  2. Turn the upper half casing upwards and remove it.
  3. Cut the seals.
    4. Work with care to refit the seal by closing the two edges of the cut.
  4. Separate the two half casings .
  5. Remove the mixing flap from its pin.
  6. Remove lower distribution flap from its pin.
  7. Remove the front distribution flap from its pin.
  8. Remove the upper distribution flap from its pin.
