Removal/refitting (page 2 of 2)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Charging

55 Electric systemRemoval/refitting · page 2 of 2

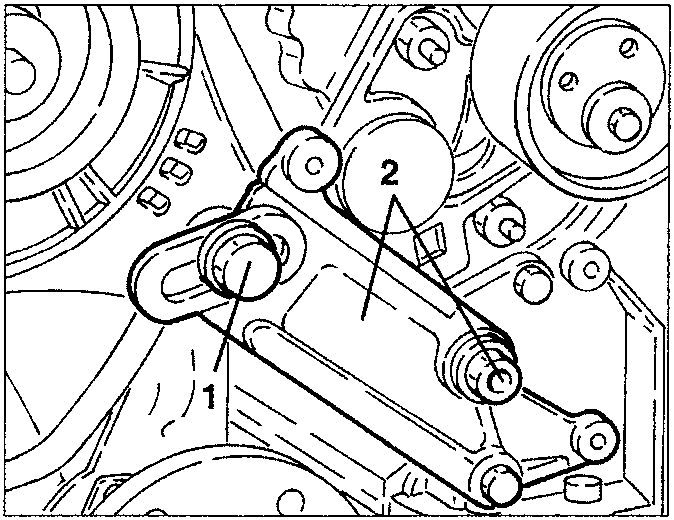

1. Slacken and remove the lower nut fastening the alternator to the support bracket.
2. Slacken the fastening screws and remove the alternator lower support bracket.

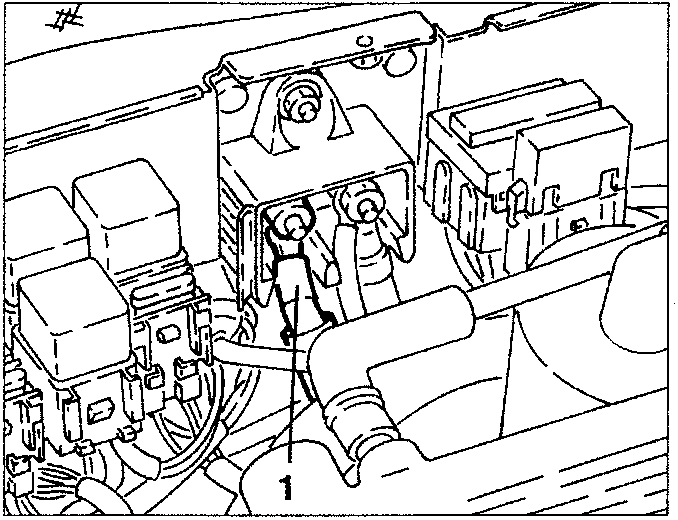

1. Disconnect the alternator supply cables from the branch box.

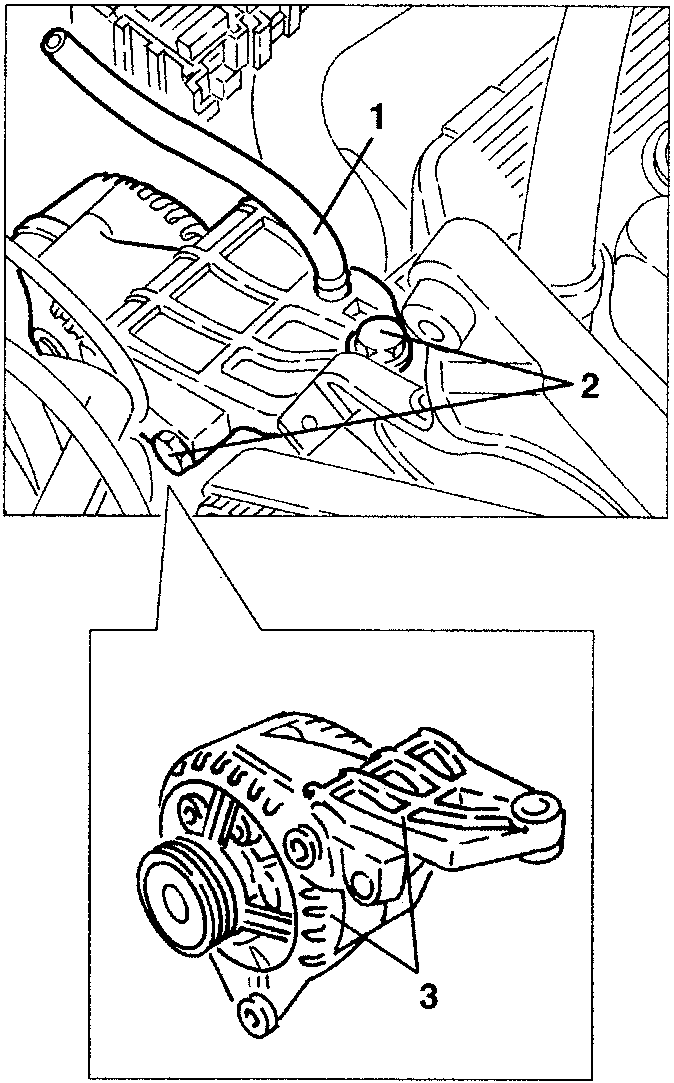

1. Disconnect the condensed oil recovery pipe from the alternator upper support bracket.
2. Slacken the two screws fastening the alternator upper support bracket to the cylinder head.
3. Remove the alternator complete with upper support bracket and dis-assemble them on the bench.
