REMOVAL/REFITTING

(2959 c.c. Engine)

  • Set the car on a lift.
  • Disconnect the battery (-) terminal.
  • Remove the right front wheel and mud flaps.

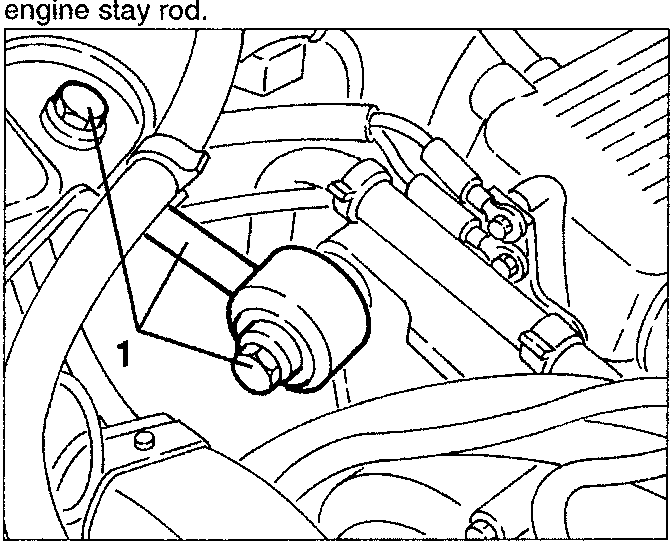

  1. Slacken the fastening screws and remove the engine stay rod.
Engine stay rod removal

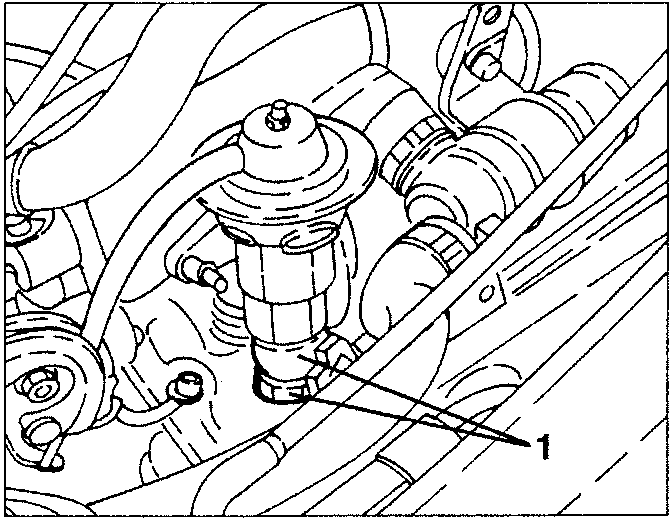

  1. Disconnect the exhaust gas takeoff pipe from the E.G.R. valve.
E.G.R. valve exhaust pipe disconnection

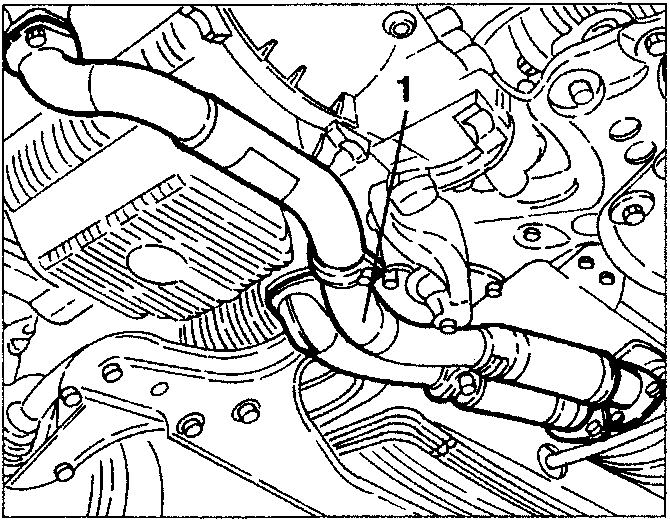

  1. Raise the car and remove the front section of the exhaust pipe slackening the fastenings.
Exhaust pipe removal

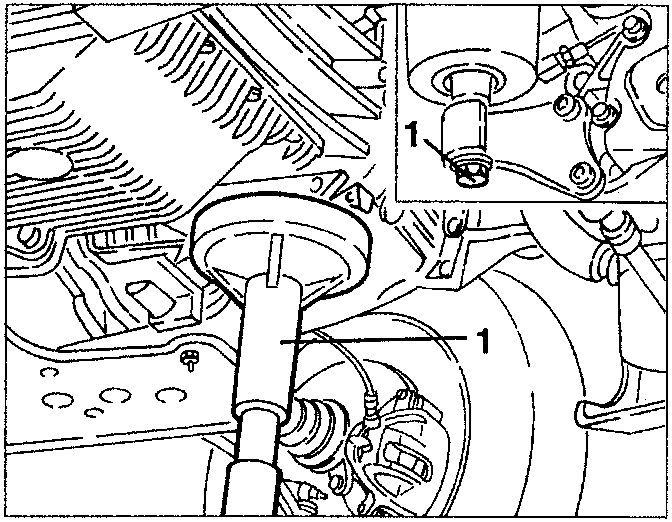

  1. Set a hydraulic jack under the gearbox, then slacken the power unit fastening screws on the gearbox side.
Power unit fastening screws on gearbox side

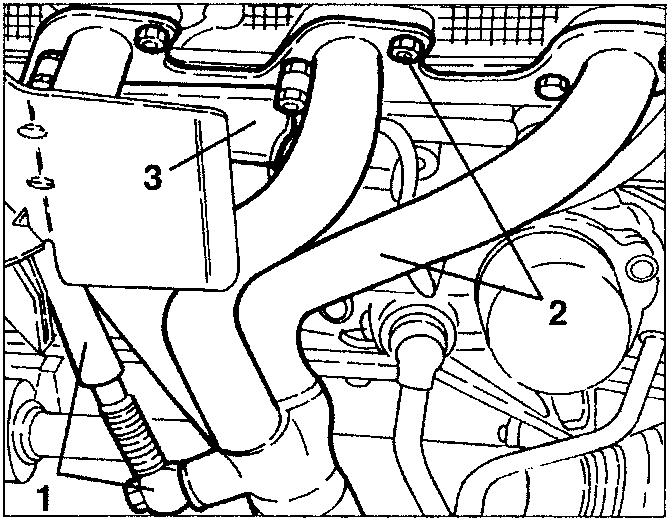

  1. Disconnect the the exhaust gas takeoff pipe from the manifold and remove it.
  2. Slacken the fastening nuts and remove the exhaust manifold from the right-hand cylinder head.
  3. Remove the starter motor heat shields.
Exhaust manifold and starter motor heat shields

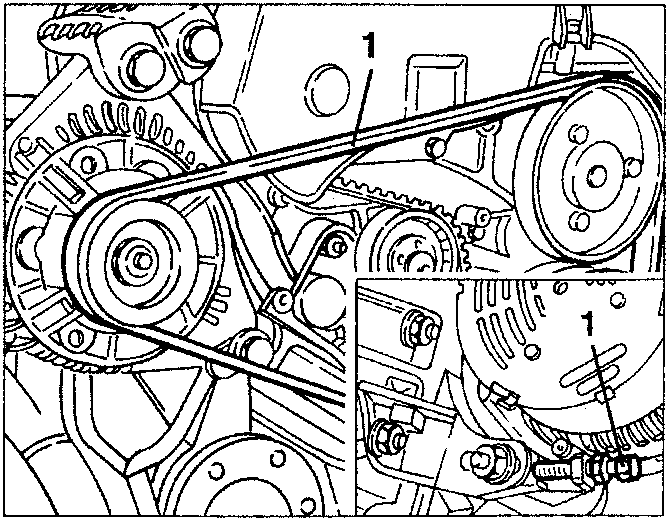

  1. Lower the car, slacken the tension of the alternator-water pump drive belt, then remove it.
Alternator-water pump drive belt removal
