Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)17 · 55 Electric system
17 · General

Removal/refitting

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Charging › Removal/refitting
55 Electric systemRemoval/refitting · page 1 of 2

REMOVAL/REFITTING

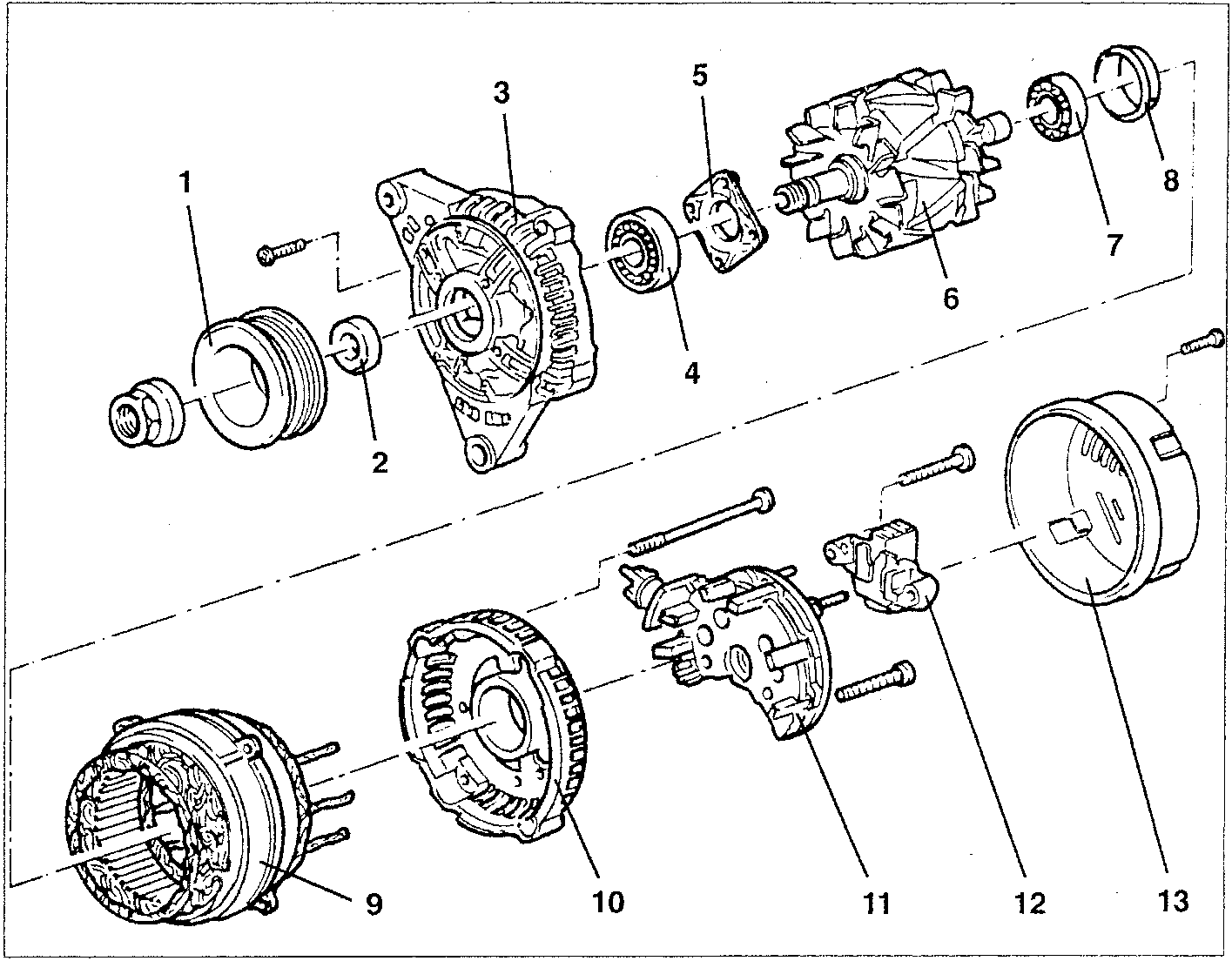

Exploded view of the charging system components with numbered parts
  1. Pulley
  2. Spacer
  3. Drive side support
  4. Drive side bearing
  5. Cover plate
  6. Rotor
  7. Regulator side bearing
  8. Centering ring
  9. Stator
  10. Support for collector rings
  11. Rectifier unit
  12. Voltage regulator - brush holder
  13. Protection cap
