Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)17 · 55 Electric system
17 · General

Removal/refitting (gtv) (page 2 of 2)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Charging
55 Electric systemRemoval/refitting (gtv) · page 2 of 2

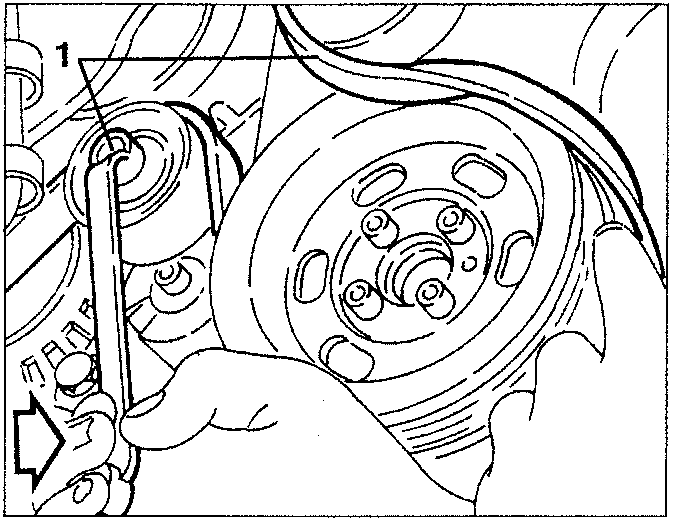

  1. Working as shown on the guide pulley, slacken the tension of the auxiliary components drive pulley and remove it.
Hand using a tool to slacken a bolt on a pulley system near an engine component
  1. Remove the reinforcement bracket.

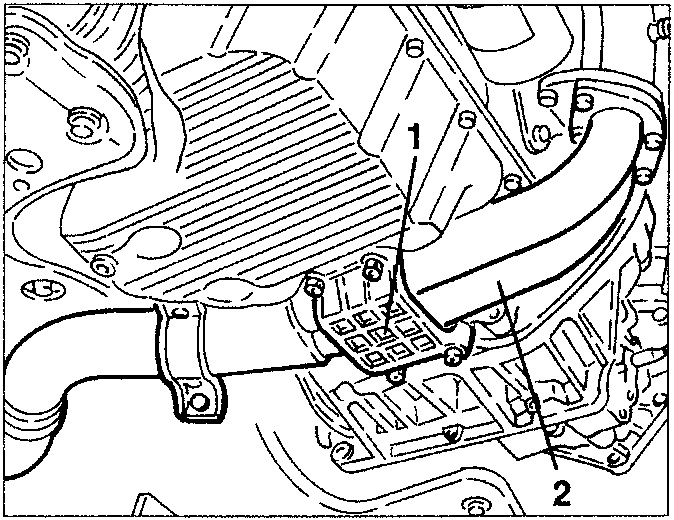

  2. Remove the front section of the exhaust pipe complete with lambda sensor after slackening the fastenings.
Exhaust pipe and lambda sensor being removed from under a vehicle, showing bolts and brackets
  1. Set a hydraulic jack under the gearbox as illustrated.

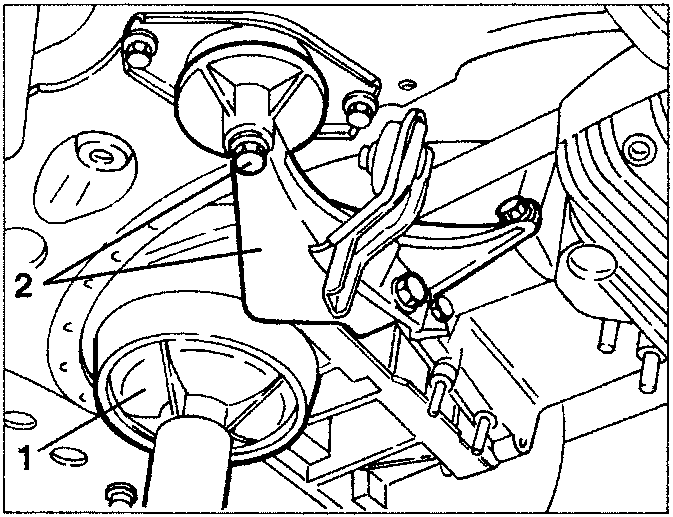

  2. Slacken the fastening screws and remove the rear power unit support.
Hydraulic jack positioned under a gearbox with a tool loosening a bolt on a support bracket

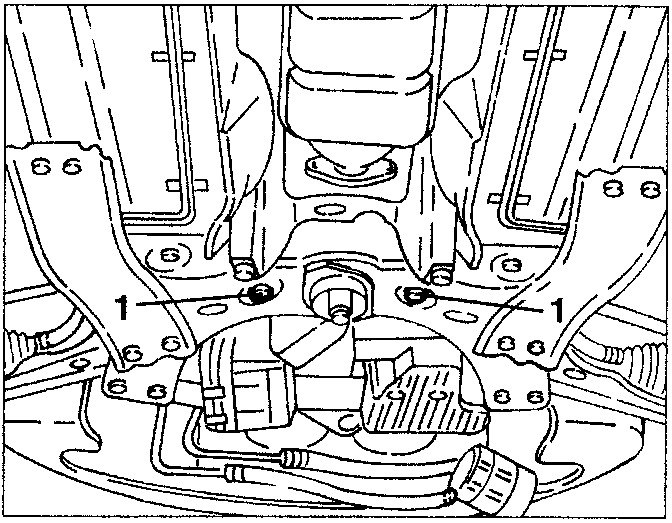

  1. Slacken the screws fastening the power steering box to the suspension crossmember.
Power steering box attached to a vehicle's suspension crossmember with bolts

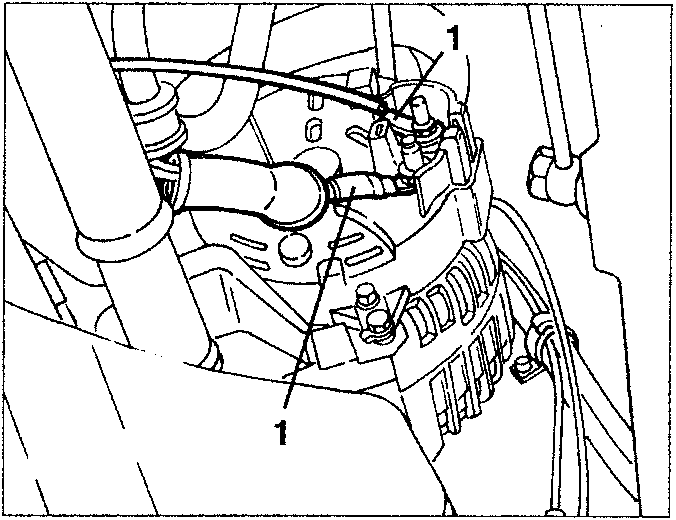

  1. Disconnect the electrical connections from the alternator.
Electrical connectors being disconnected from an alternator mounted on an engine

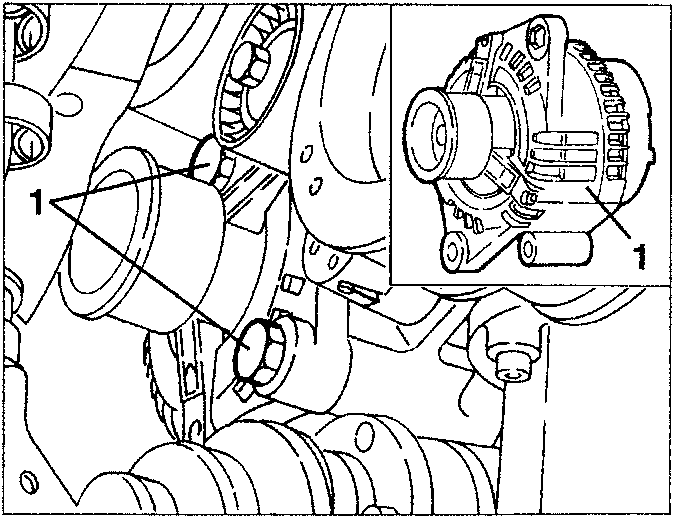

  1. Slacken the two fastening bolts and remove the alternator retrieving it from under the car pulling it out of the opening obtained by removing the power unit rear support.
Alternator being removed from under a vehicle, showing its mounting bolts and position relative to engine components
