Air cleaner cartridge replacement

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Air supply system › Air cleaner cartridge replacement

Variants – 3.0 V6 24VAir cleaner cartridge replacement

AIR CLEANER CARTRIDGE REPLACEMENT

• Make sure the ignition key is at "STOP" and disconnect the (-) battery terminal.

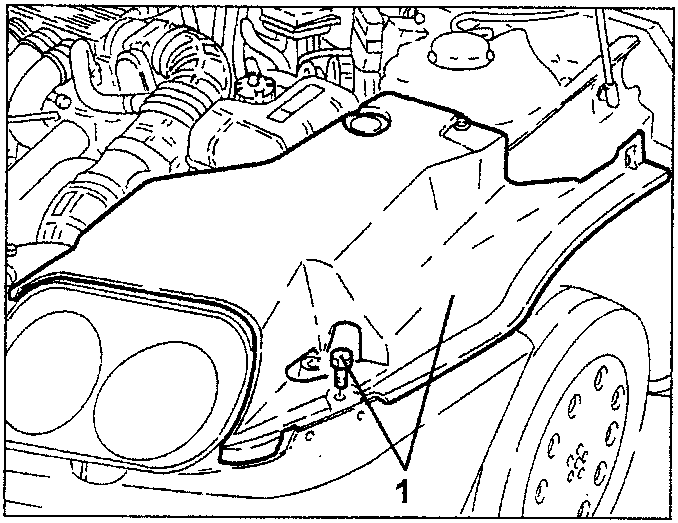

1. Loosen the screws and remove the engine compartment side guard.

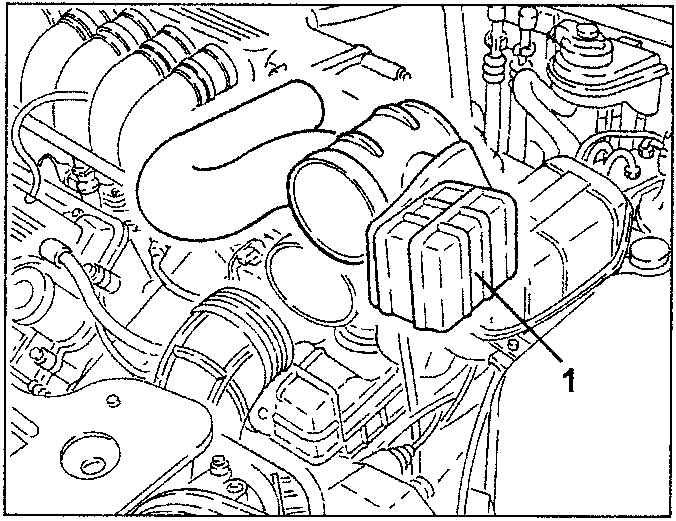

1. Loosen the fastening clips and remove the upper resonator.

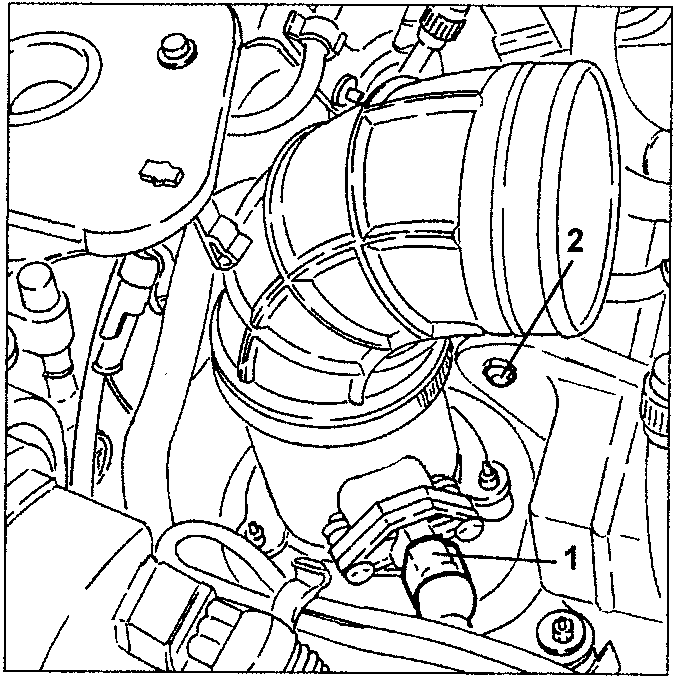

1. Disconnect the hot film flow meter electrical connection.
2. Release the corrugated sleeve elbow fastening button from the resonator.

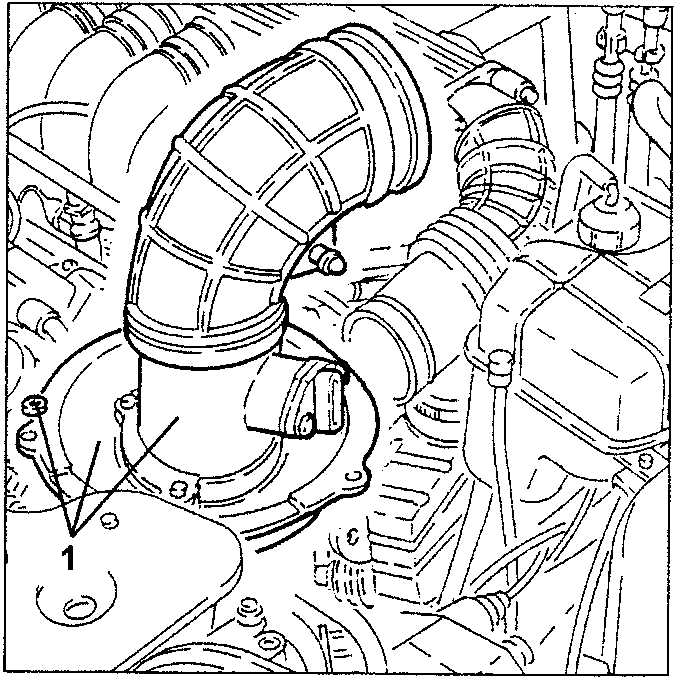

1. Loosen the fasten nuts and remove the air cleaner cover with hot film flow meter and corrugated sleeve.
