Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)12 · Variants – 3.0 V6 24V
12 · General

Intake manifold

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Air supply system › Intake manifold
Variants – 3.0 V6 24VIntake manifold · page 1 of 3
  1. Loosen the fasten nuts and remove the air cleaner cover with hot film flow meter and corrugated sleeve.

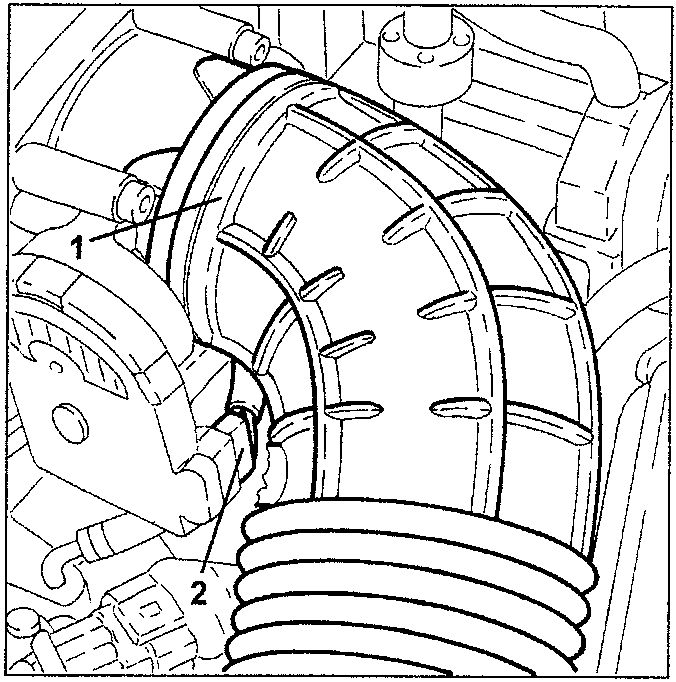

Air cleaner cover with hot film flow meter and corrugated sleeve removed
  • At the bench, separate the hot film flow meter from the air filter cover and from the corrugated sleeve elbow.

INTAKE MANIFOLD

REMOVAL/REFITTING

  • Make sure the ignition key is at "STOP" and disconnect the (-) battery terminal.
  1. Disconnect the corrugated sleeve from the throttle casing with built-in DVL.
  2. Disconnect the electrical connection from the throttle casing with built-in DVL.

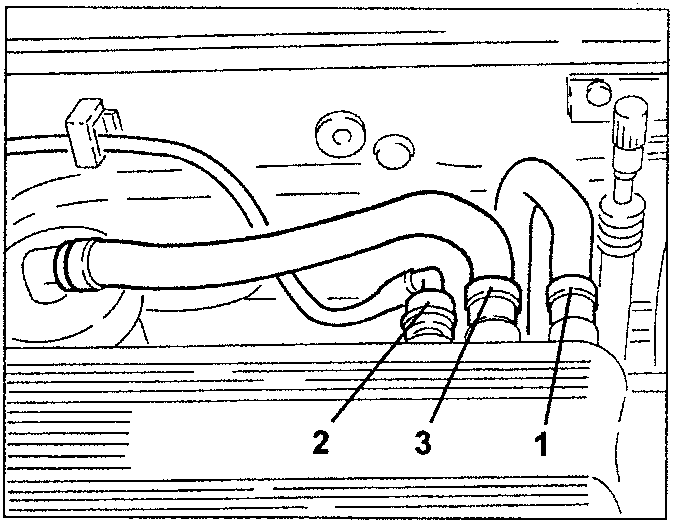

Intake manifold with brake booster vacuum pipe, fuel vapour recovery pipe and oil vapour recirculation pipe disconnected
  1. Disconnect the brake booster vacuum pipe from the intake manifold.
  2. Disconnect the fuel vapour recovery pipe from the intake manifold.
  3. Disconnect the oil vapour recirculation pipe from the intake manifold.

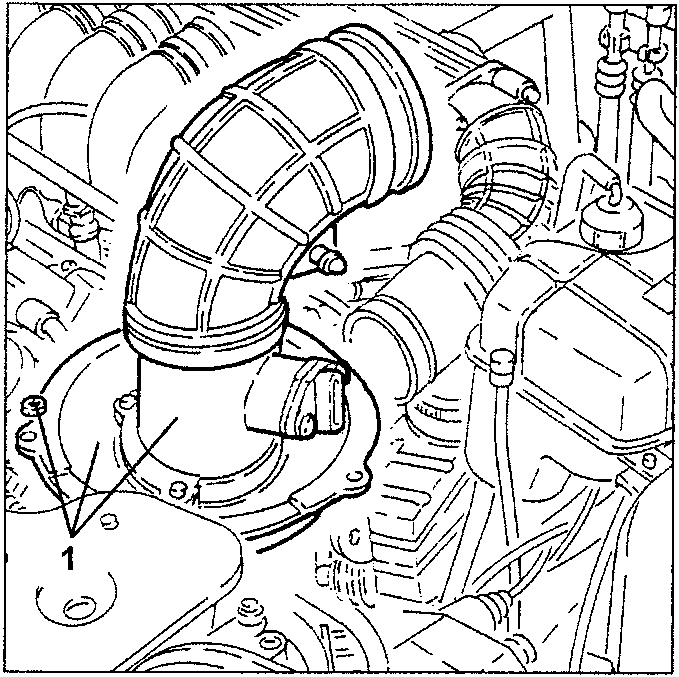

Intake manifold with corrugated sleeve, electrical connection and throttle casing connections
