Intake manifold (page 2 of 3)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Air supply system

Variants – 3.0 V6 24VIntake manifold · page 2 of 3

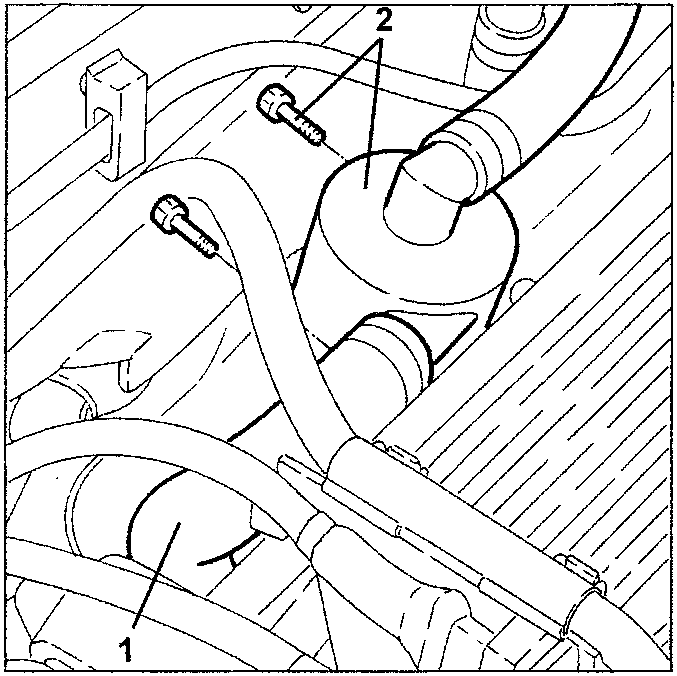

1. Disconnect the oil vapour recovery pipe from the right-hand cylinder head tappet cover.
2. Loosen the fastening screws and move the oil vapour separator from the intake manifold.

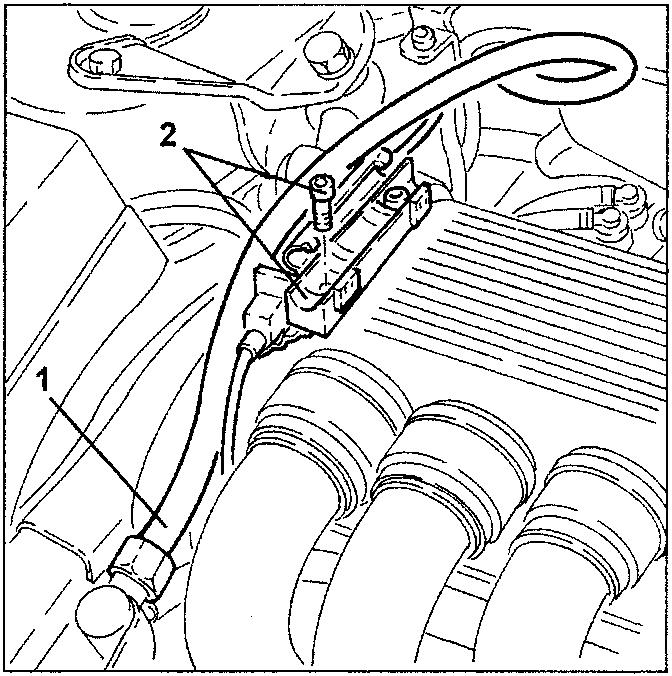

1. Release the fuel delivery pipe from the bracket.
2. Loosen the fastening screws and move the fuel feed delivery pipe bracket with front knock sensor electrical connection aside.

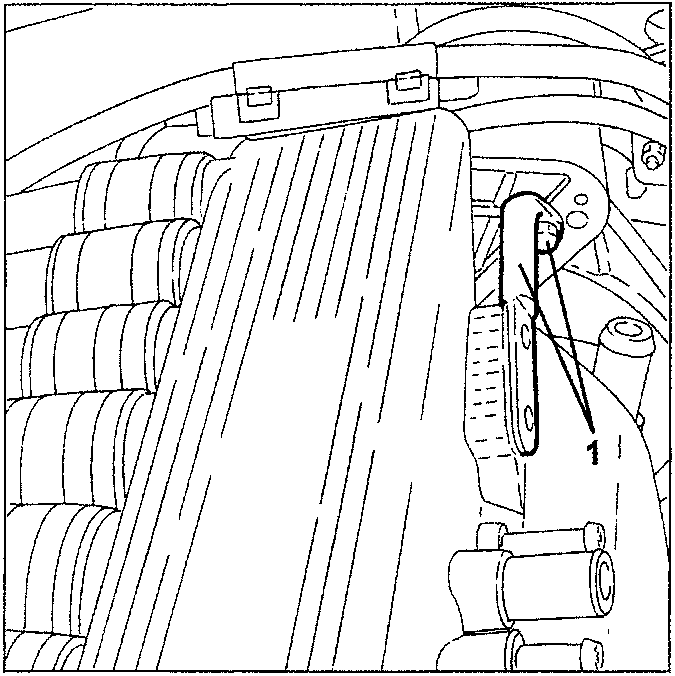

1. Loosen the screw and remove the intake manifold connection from the engine tie-rod bracket.

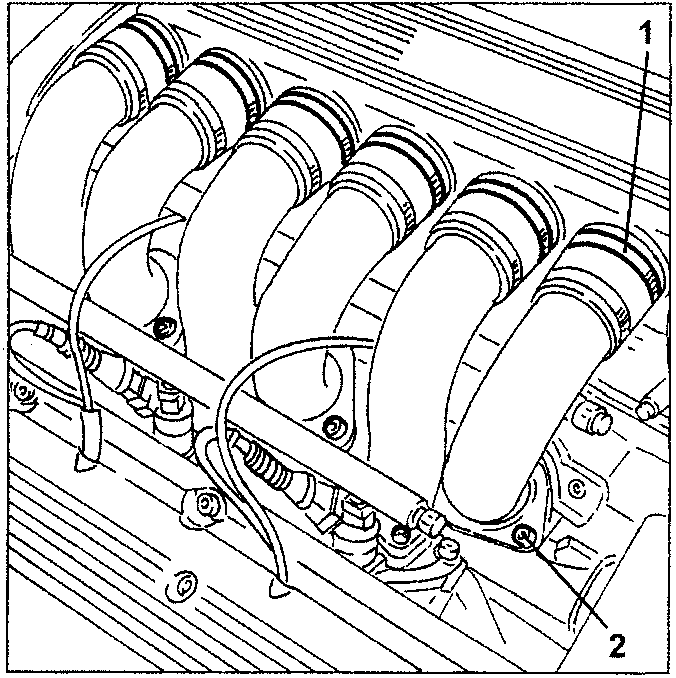

1. Loosen the intake manifold duct clips.
2. Loosen the intake manifold duct fastening screws.

• Release the ducts from the intake manifold.
