Air flow meter

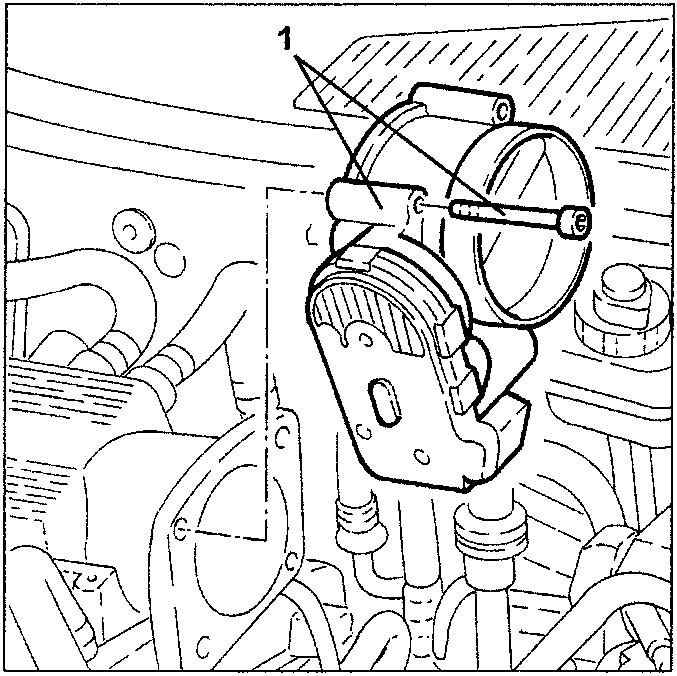

1. Loosen the fastening screws and remove the throttle casing with built-in DVL and seal.

NOTE: If the self-learning procedure is not correct, take the key to STOP and repeat the procedure. If the incorrect outcome persists, check the connection to the diagnostic socket and tool operation.

AIR FLOW METER

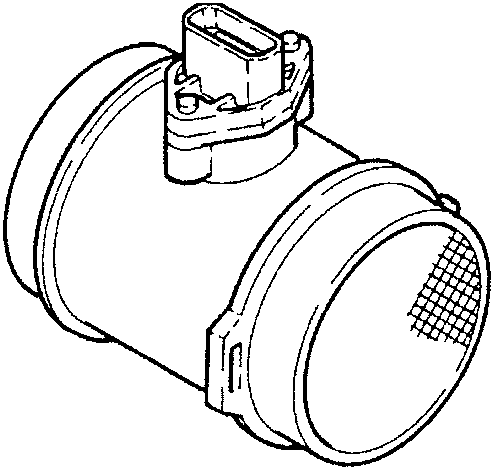

The "hot film" flow meter is located on the intake air sleeve.

An intake air temperature sensor is built into the flow meter.

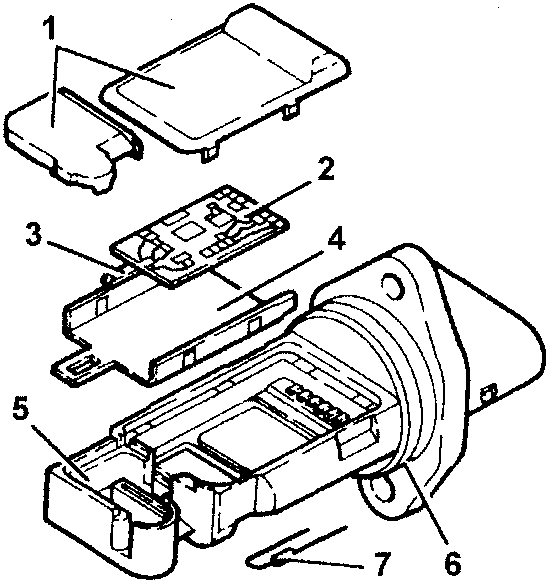

1. Covers
2. Electronic board
3. Sensor
4. Support plate
5. Bracket
6. O-Ring
7. Temperature sensor

IMPORTANT: After refitting, repeat the throttle casing with built-in DVL self-learning procedure described below.

IMPORTANT: During this procedure (from when the instrument panel is powered to the end of the self-learning procedure), do not press either the accelerator pedal, the brake pedal or the clutch pedal.

• Make sure the ignition key is at STOP.
• Connect tool no. 1.806.365.000 to the diagnostic socket and turn the knob to 3.
• Connect Examiner.
• Turn the ignition key to MAR.
• Wait for 60 seconds for the ECU to check the throttle internal spring and the maximum/minimum angular positions.
• Turn the ignition key to STOP.
• Wait for 15 seconds for the ECU to record the learnt values in the EPROM.
• With Examiner, check whether the idling self-learning procedure was ended correctly (SELF-LEARNING OUTCOME - OK; SELF-LEARNING STORAGE - Done).
