Variants – 3.0 V6 24VUpper resonator
  1. Remove the filtering element and manifold.

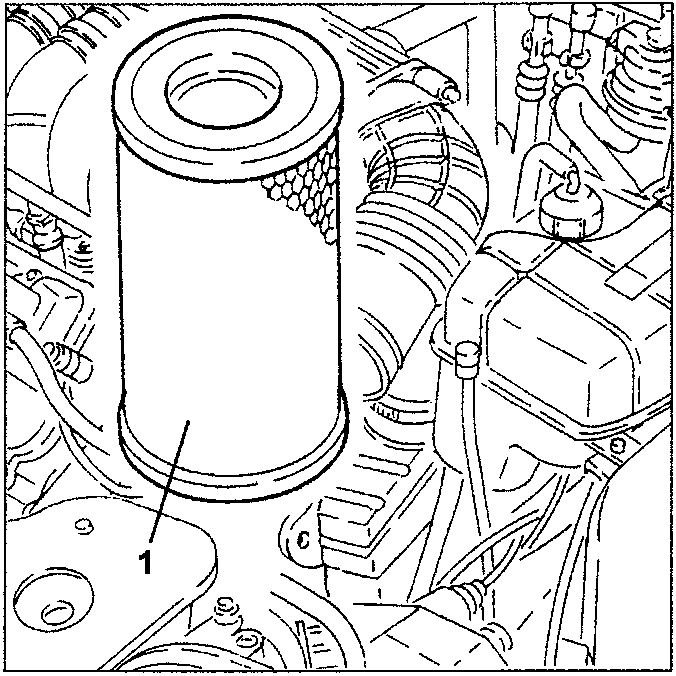

Filtering element and manifold removal

IMPORTANT: Cleaning operations can damage the filter and compromise correct engine operation.

  • Refit a new air cleaner by reversing the removal sequence.

UPPER RESONATOR

REMOVAL/REFITTING

  1. Loosen the screws and remove the engine compartment side guard.

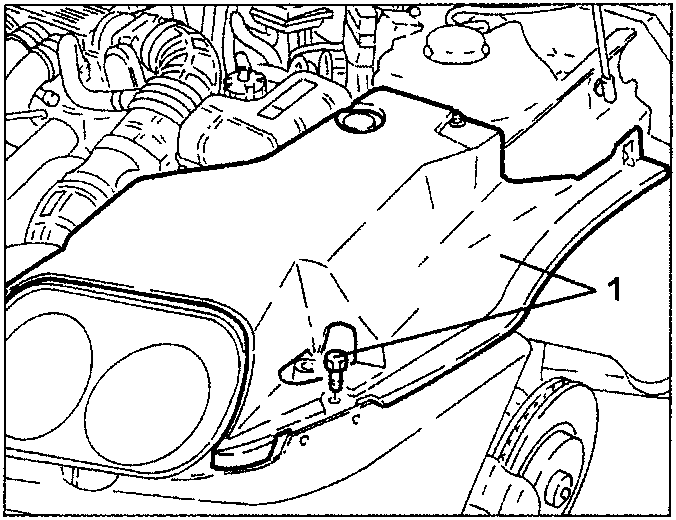

Illustrates removal of engine cover with bolt and gasket

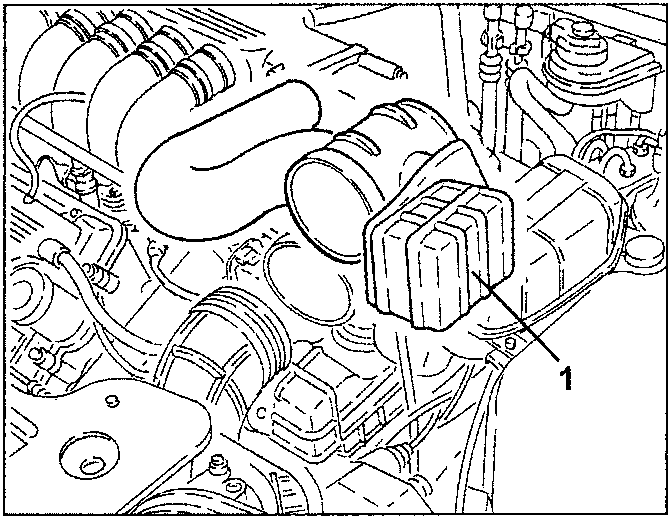

Upper resonator removal
  1. Loosen the fastening clips and remove the upper resonator.
Upper resonator removal

INTERMEDIATE RESONATOR

REMOVAL/REFITTING

  1. Loosen the screws and remove the engine compartment side guard.

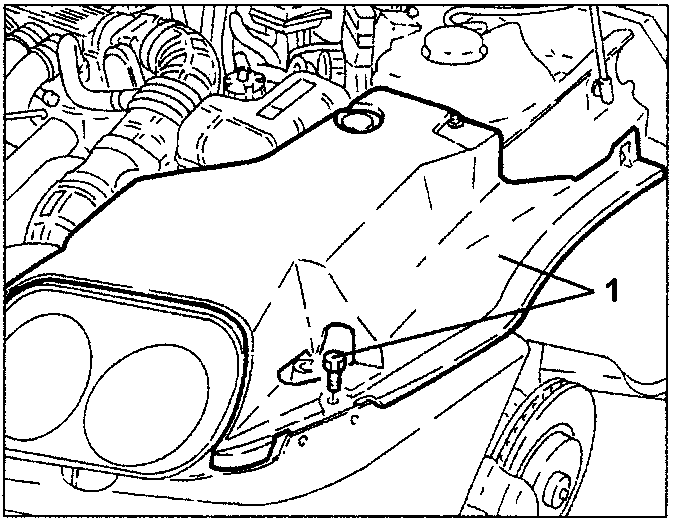

Intermediate resonator removal
