Air cleaner casing

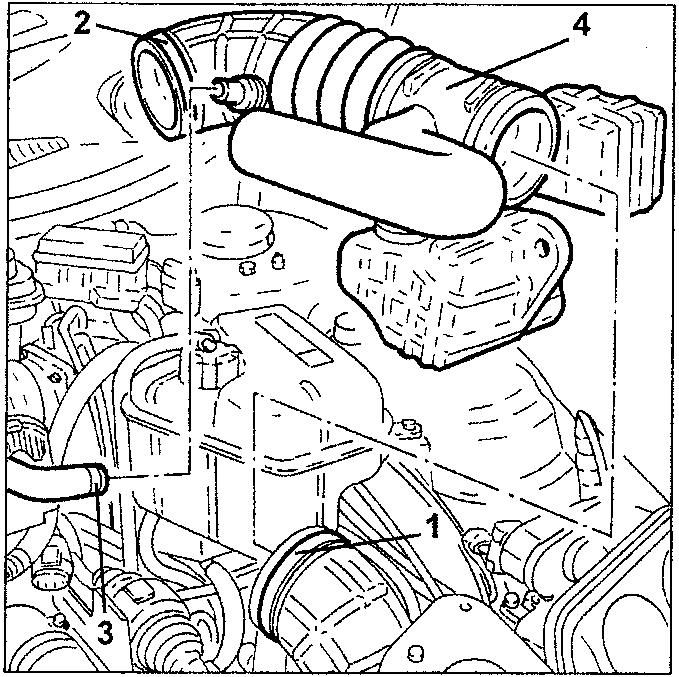

1. Loosen the clip fastening the upper resonator to the corrugated sleeve elbow.
2. Loosen the clip fastening the corrugated sleeve to the throttle casing with built-in DVL.
3. Loosen the clip and disconnect the oil vapour recirculation pipe from the corrugated sleeve.

• Release the button fastening the corrugated sleeve elbow to the resonator.

4. Remove the intermediate resonator with upper resonator and corrugated sleeve. Separate at the bench, if required.

1. upper resonator
2. corrugated sleeve
3. oil vapour recirculation pipe
4. throttle casing

• Lift the vehicle.

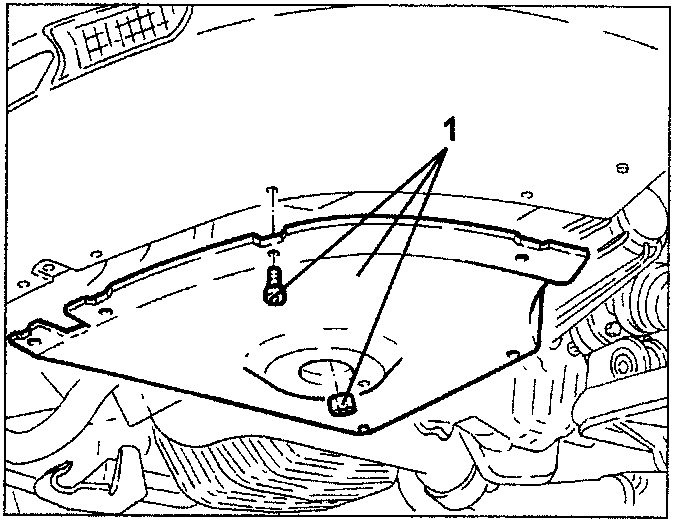

1. Loosen the screws and nut and then remove the air filter lower guard.

• Release the air cleaner casing from the lower resonator sleeve.

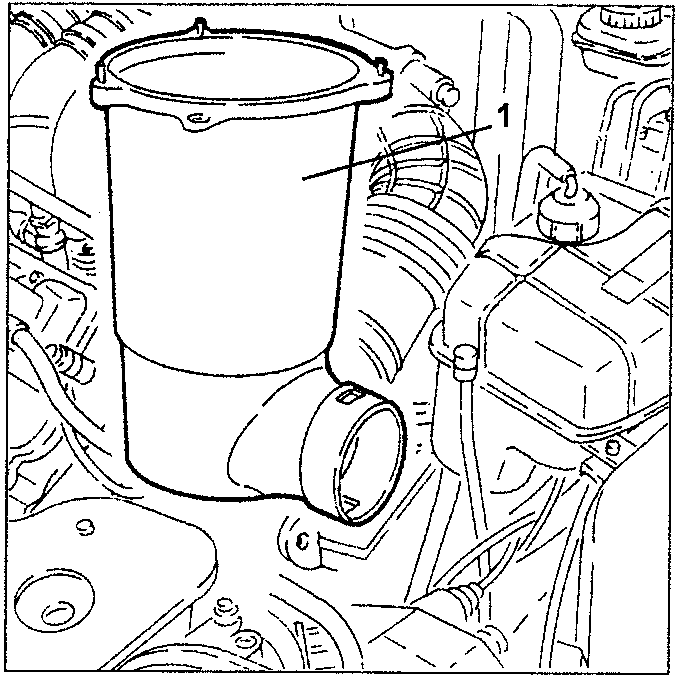

1. Lower the vehicle and remove the air cleaner casing.

AIR CLEANER CASING

REMOVAL/REFITTING

• Position the vehicle on a shop jack.
• Remove the air cleaner cartridge (see specific paragraph).

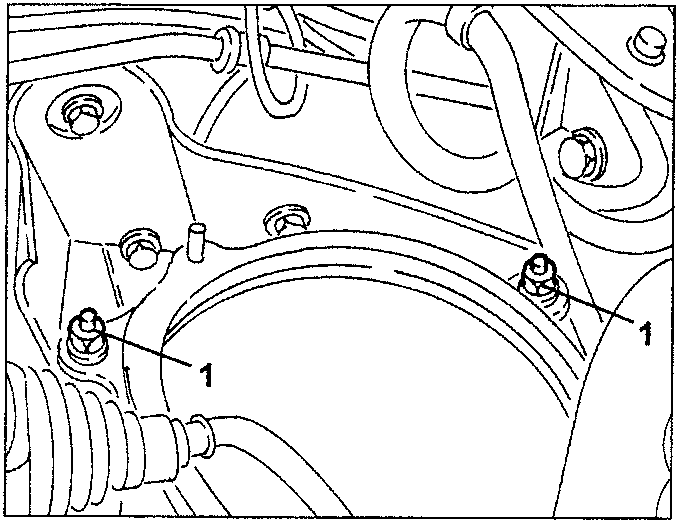

1. Loosen the air cleaner fastening nuts.
