Body Closures (01.03)

Make

Aston Martin

Model

DB9 Factory Workshop Manual

Year

Issue 2, 2005

Section

Body Closures › Body Closures (01.03)

01 Body systemBody Closures (01.03)

Body Closures (01.03)

Specifications

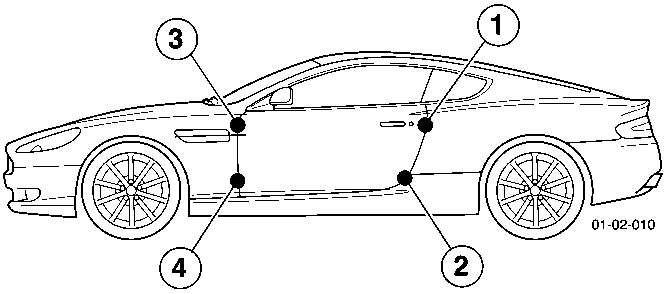

Doors

Door Standard (mm)
Item	1	*2	3	4
Nominal gap	3.5	3.00	3.00	3.75
Tolerance	±0.75	±1.0	±1.0	± 0.75
Flush	0.0	-1.0	-1.0	0.0
Tolerance	±1.5 / 0.0	+0.0 / -1.0	±1.0	±1.5
Taper	N/A
Symmetry	N/A

* Flushness blends to 0.0 at the rear quarter

* Gap blends to 3.5 at rear quarter

Torque Figures
Description	Nm.	lb. / ft.
Hinge to Door	47.5	33.5
Hinge to Body	36	26.5
Door Striker plate

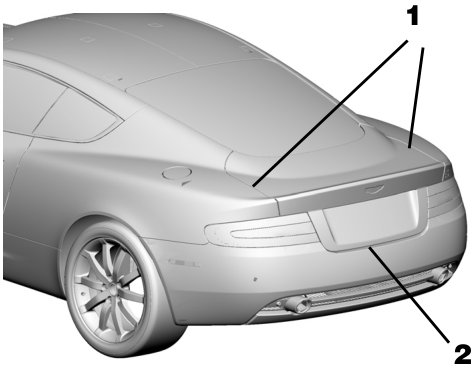

Boot Lid

Boot Standard (mm)
Item	1	2
Nominal gap	3.5	3.5
Tolerance	±0.75	±1.0
Flush	-0.5	N/A
Tolerance	+0.5 / -1.0	N/A
Taper	1 mm Max. across the length
Symmetry	1 mm Max. difference LH to RH

Torque Figures
Description	Nm	lb. / ft.
Hinge to Body	25	18

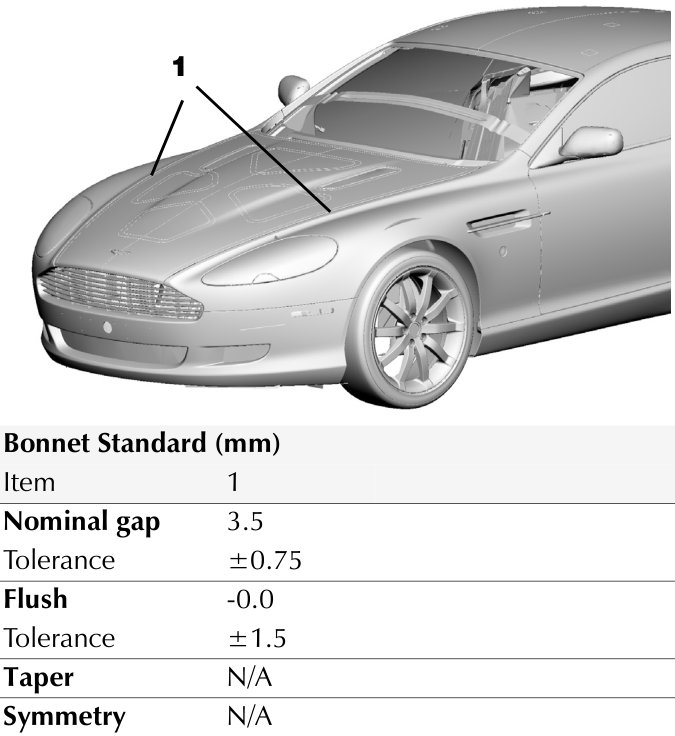

Bonnet

Bonnet Standard (mm)
Item	1
Nominal gap	3.5
Tolerance	±0.75
Flush	-0.0
Tolerance	±1.5
Taper	N/A
Symmetry	N/A

Torque Figures
Description	Nm	lb. / ft.
Hinge to Body	25	18
