Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005)02 · 01 Body system
02 · Body & interior

Installation (page 2 of 2)

Make
Aston Martin
Model
DB9 Factory Workshop Manual
Year
Issue 2, 2005
Section
Front End
01 Body systemInstallation · page 2 of 2
  1. Install the slam panel.

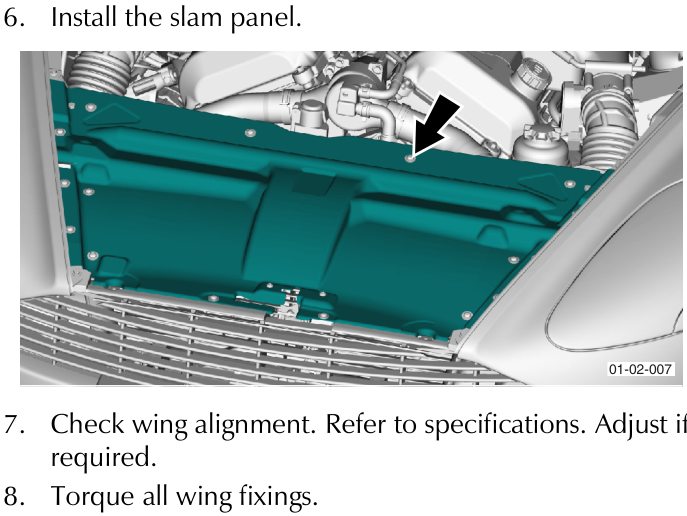

View of the slam panel being installed in the front engine bay area
  1. Check wing alignment. Refer to specifications. Adjust if required.
  2. Torque all wing fixings.

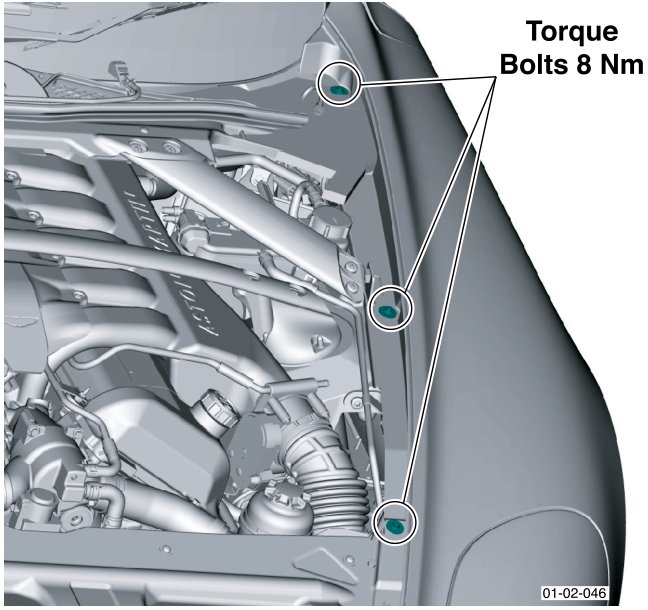

Detail of wing fixings with callout indicating torque specification

Torque
Bolts 8 Nm

View of the slam panel area with callout indicating torque specification for bolts
  1. Connect the side repeater lamp wiring harness plug.
  2. Install the road wheel and road wheel arch liner (Refer to 'Road Wheel Nut Torque Tightening', page 4-5-7).
  3. Connect the vehicle battery.
