01 Body systemSpecifications · page 2 of 2

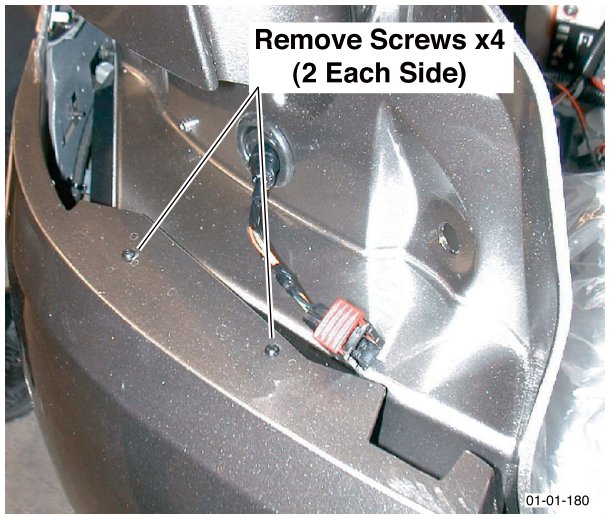

  1. Remove screws x4 (2 each side).
Rear bumper interior showing location of screws to remove, labeled Remove Screws x4 (2 Each Side)

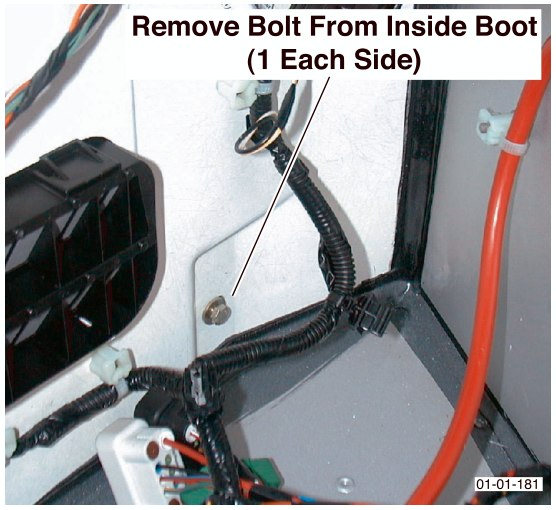

  1. Remove bolt from inside the boot (1 each side).
Interior boot area showing a bolt to be removed, labeled Remove Bolt From Inside Boot (1 Each Side)
  1. Remove the roadwheel and disconnect the rear section of the roadwheel arch liner.

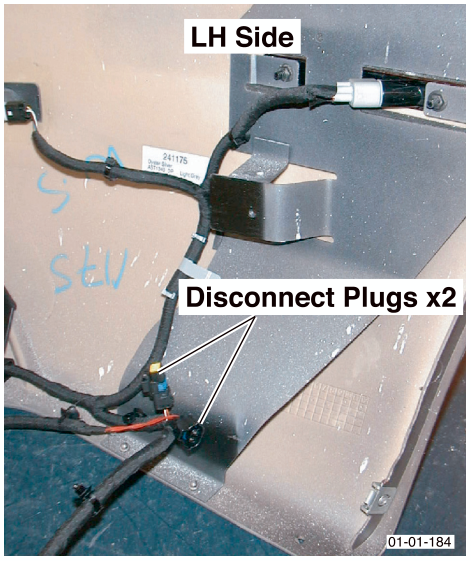

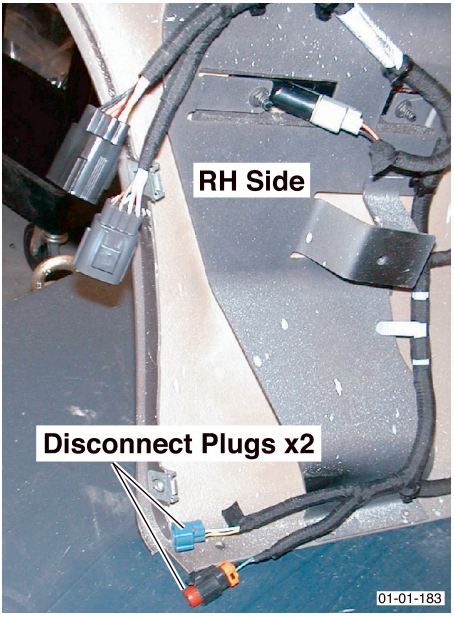

  2. Disconnect the wiring harness plugs (x2 (RH side)) and (x2 (LH side)).
Roadwheel arch liner area on RH side showing two wiring harness plugs to disconnect

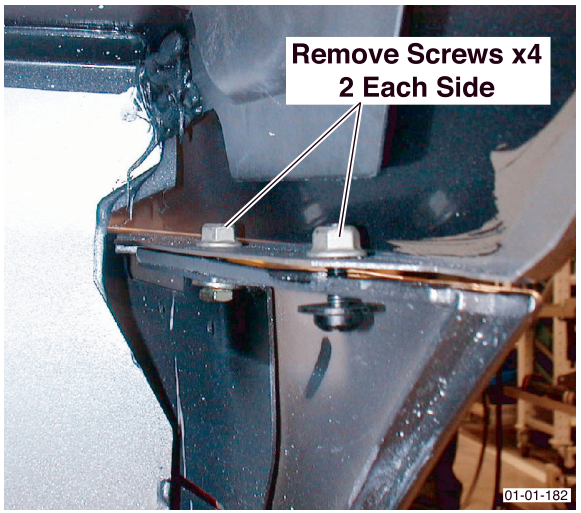

  1. Remove screws (x4 (x2 each side)) from the bumper.
LH side interior view showing two electrical plugs to disconnect
Bumper mounting area showing four screws to remove, labeled Remove Screws x4 2 Each Side

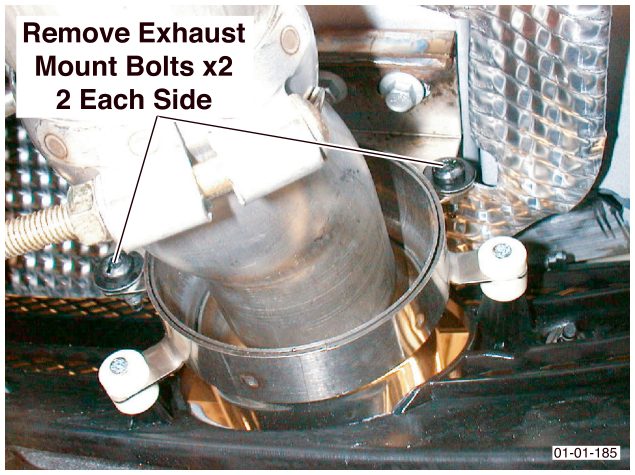

  1. Remove bolts (x4 (x2 each) that secure the exhaust mount to the end pipe trim.
Exhaust system showing two bolts securing the exhaust mount to the end pipe trim, labeled Remove Exhaust Mount Bolts x2 2 Each Side
