01 Body systemDoor Glass Setup
  1. Connect the inner release cable and install the door handle trim plate.

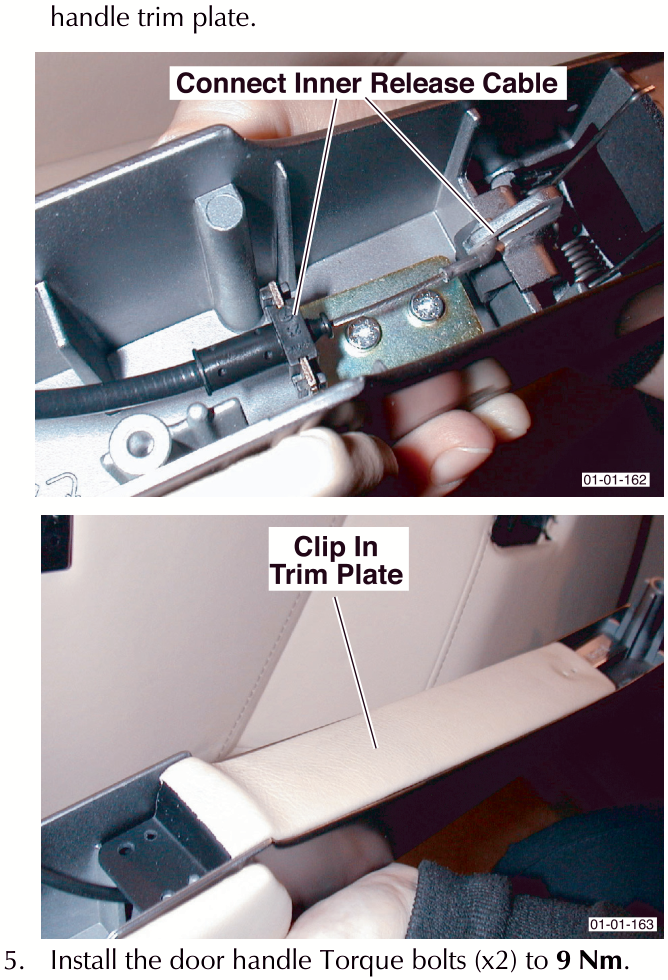

Two images showing the connection of the inner release cable and clipping in the trim plate
  1. Install the door handle Torque bolts (x2) to 9 Nm.

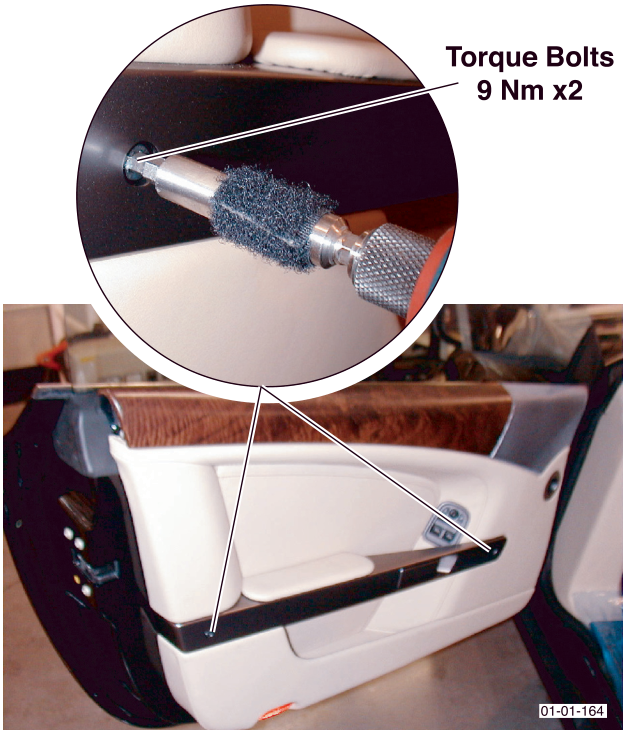

Image showing a torque wrench tightening bolts on the door handle with callout text 'Torque Bolts 9 Nm x2'

9 Nm
0.9 kgm

  1. Install the door outer weather strip.

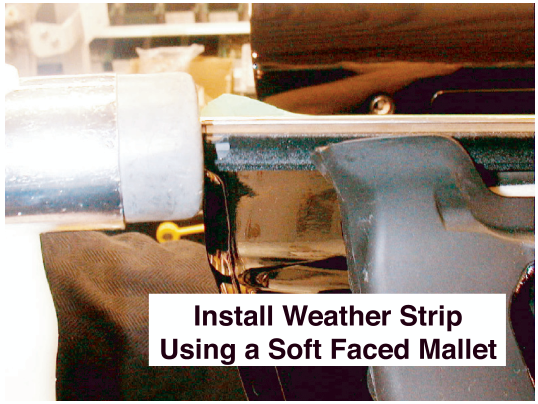

Image showing a soft faced mallet being used to install the weather strip

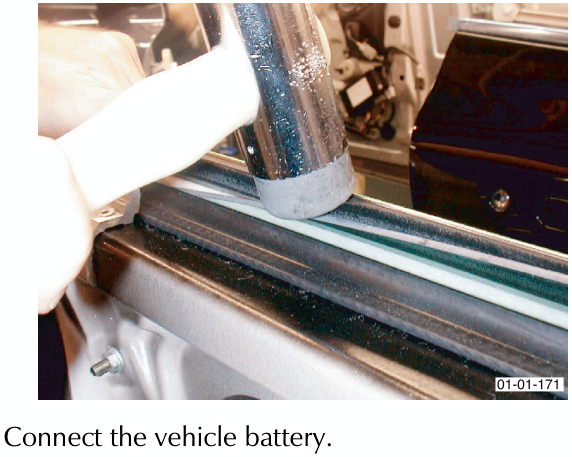

Image showing the installation of the door outer weather strip
  1. Connect the vehicle battery.
  2. Check that the door glass operates correctly. Perform the ‘Door glass Setup’ procedure.

Door Glass Setup

  1. Sit in the driver’s seat.
  2. Ensure both doors are closed and switch the ignition to ‘0’.
  3. Press firmly and hold the window switch until the window is at the maximum down position. Continue to hold the button for 5 seconds then release.
  4. Pull back and hold the window switch until the window is in the maximum up position. Continue to hold the switch for a further 5 seconds, then release.
  5. The window is now reset. Repeat for the second window.
