Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005)02 · 01 Body system
02 · Body & interior

Removal

Make
Aston Martin
Model
DB9 Factory Workshop Manual
Year
Issue 2, 2005
Section
Glass, Frame and Mechanism › Removal
01 Body systemRemoval
Repair Operation Time (ROT)
ItemCode
Door Glass RenewLH01.11.BB
RH01.11.HB
Door Glass AdjustLH01.11.CD
RH01.11.JD

Removal

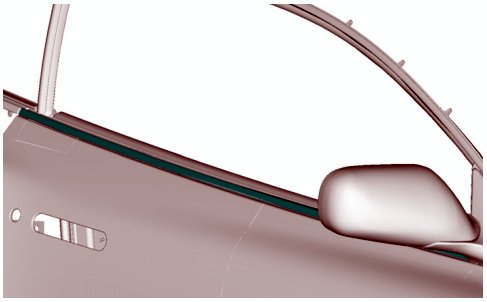

  1. Remove the door outer weather strip.
View of the upper door frame showing the outer weather strip location

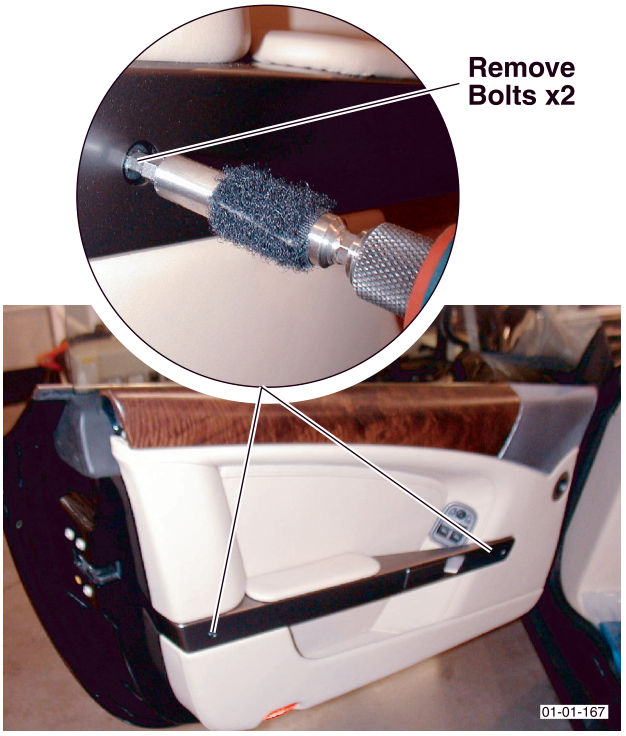

  1. Release the door handle (Bolts x2).
Close-up view of a tool removing bolts from the door handle assembly

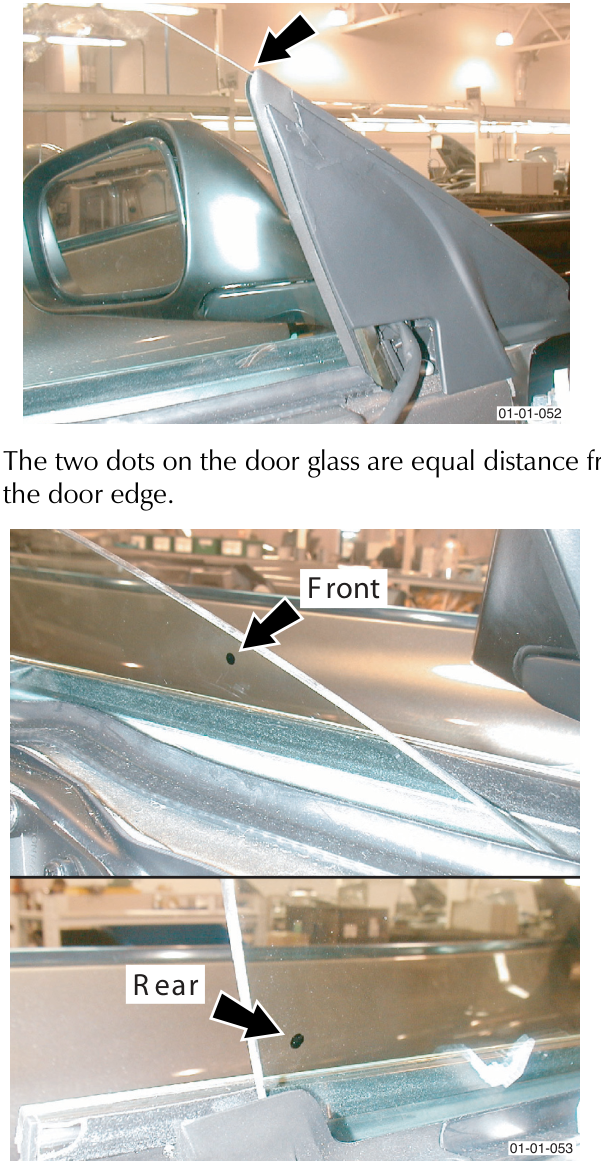

  1. Align the door glass. Ensure the following when installing a new door glass.
  • The glass is flush with the mirror trim edge
Top section of the door glass showing alignment with the mirror trim edge
  • The two dots on the door glass are equal distance from the door edge.
Two views of the door glass showing front and rear alignment dots relative to the door edge
  1. Install the door module (if removed).

⚠ Warning ⚠
Danger of hands being trapped in the window regulator mechanism. Do not put your hands through the door glass aperture with the door harness connected.

  1. Connect the vehicle battery.
  2. Check alignment of the door glass to the door seals.
    If required, disconnect the power to the door and realign the door glass.
    Once satisfactory alignment is achieved, torque both grip screws to 5-6 Nm.
  3. Install the door mirror. If removed.
  4. Install the outer weather strip. If removed.
  5. Install the door trim.
