Rear Quarter Glass (Coupe)

Make
Aston Martin
Model
DB9 Factory Workshop Manual
Year
Issue 2, 2005
Section
Glass, Frame and Mechanism › Rear Quarter Glass (Coupe)
01 Body systemRear Quarter Glass (Coupe) · page 1 of 3

Rear Quarter Glass (Coupe)

Repair Operation Time (ROT)
ItemCode
Rear Quater Glass RenewLH01.11.LB
RH01.11.MB

Remove

  1. Pull the door sealing rubber away from the rear quarter glass.
  2. Remove screws (x2).
  3. Pull the rear quarter glass away from the body.

Installation

  1. Install the rear quarter glass.
  2. Install screws (x2).

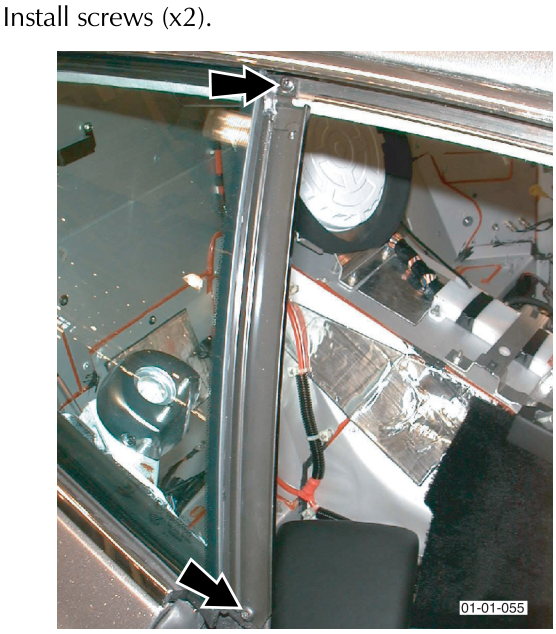

Rear quarter glass installation showing screws securing the glass frame to the vehicle body
  1. Install the door sealing rubber.

Rear Quarter Glass (Volante)

Repair Operation Time (ROT)
ItemCode
Rear Quater Glass RenewLH
RH

Remove

  1. Power the front seat forward.
  2. Lower the convertible roof.
  3. Remove the rear seat back and seat base.
  4. Disconnect the vehicle battery.
  5. Remove the seat belt top mount.

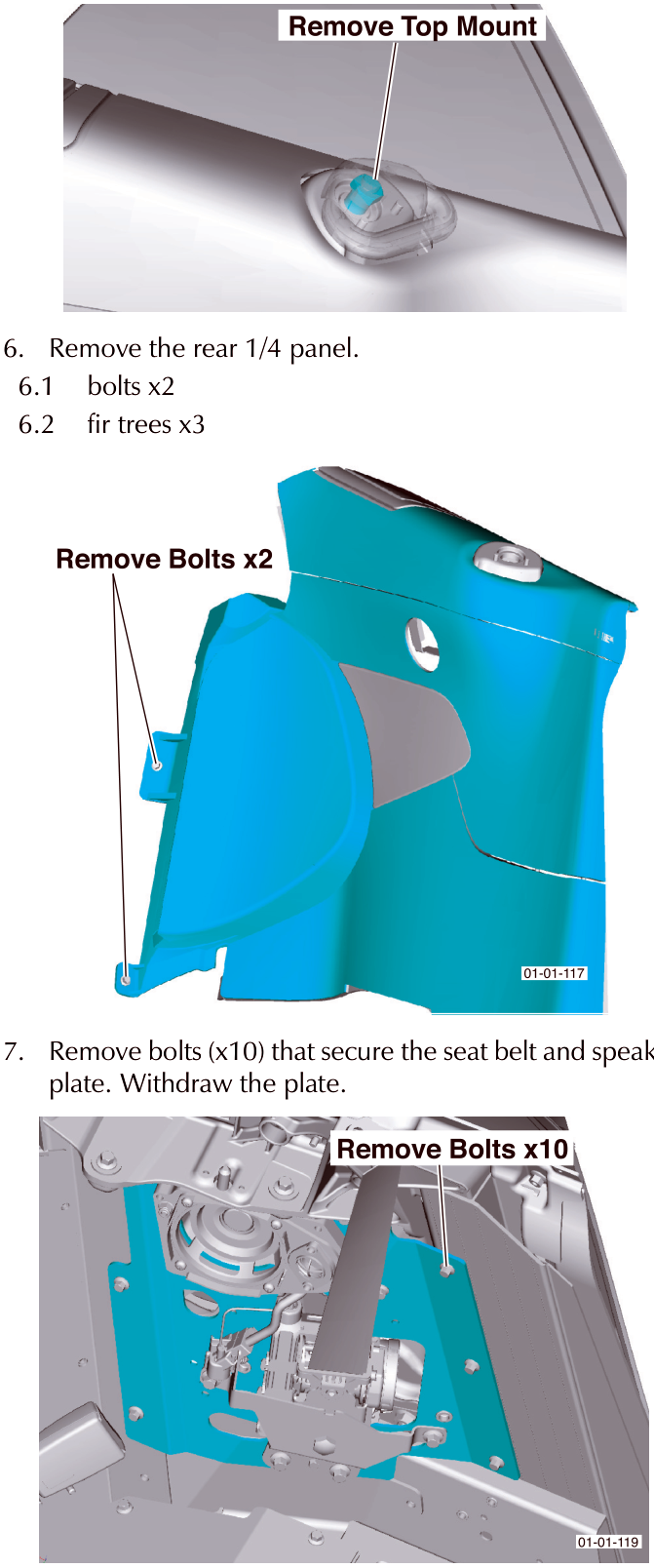

Seat belt top mount removal point located near the upper rear quarter panel
  1. Remove the rear 1/4 panel.
  • bolts x2
  • fir trees x3
  1. Remove bolts (x10) that secure the seat belt and speaker plate. Withdraw the plate.
