Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005)02 · 01 Body system
02 · Body & interior

Rear Quarter Glass (Coupe) (page 2 of 3)

Make
Aston Martin
Model
DB9 Factory Workshop Manual
Year
Issue 2, 2005
Section
Glass, Frame and Mechanism
01 Body systemRear Quarter Glass (Coupe) · page 2 of 3

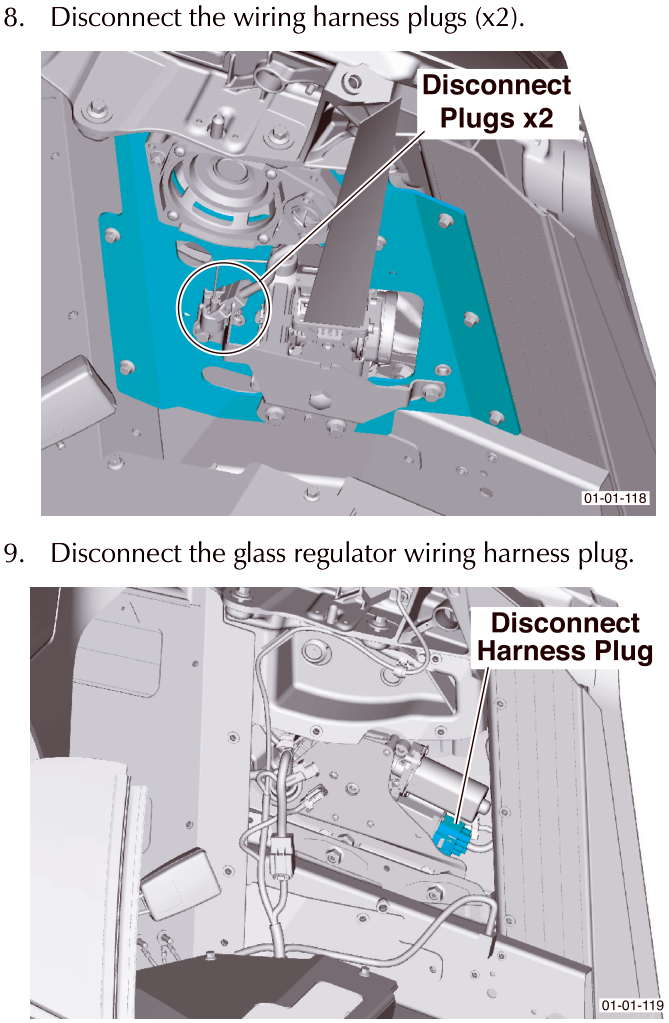

  1. Disconnect the wiring harness plugs (x2).
Diagram showing two wiring harness plugs being disconnected from the glass regulator assembly.
  1. Disconnect the glass regulator wiring harness plug.
Diagram showing a single wiring harness plug being disconnected from the glass regulator motor.

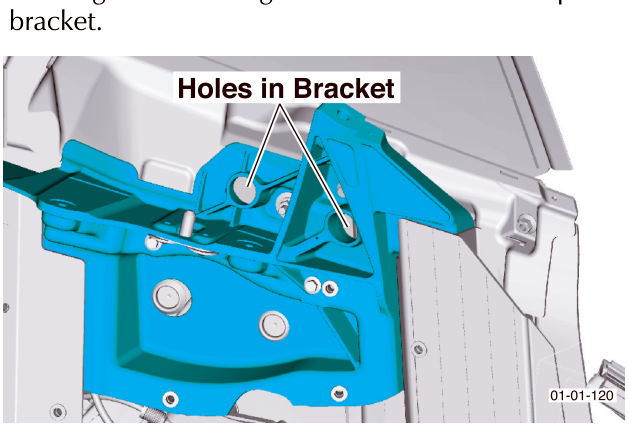

  1. Power up the glass regulator to line up the two glass securing screws through the two holes in the top bracket.
Diagram of the top bracket showing two holes aligned with glass securing screws.

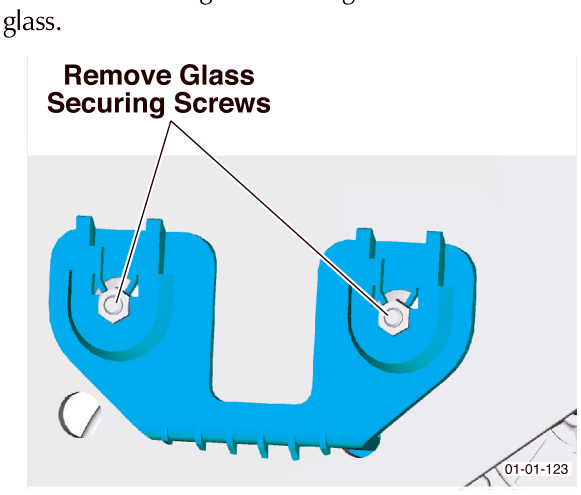

  1. Remove the two glass securing screws and withdraw the glass.
Diagram illustrating the removal of two glass securing screws from the bracket.

12. Power the glass regulator down.

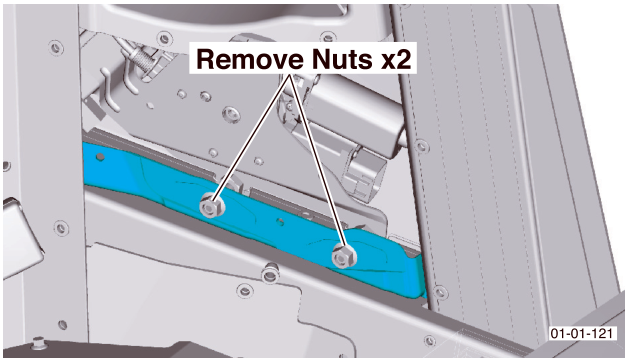

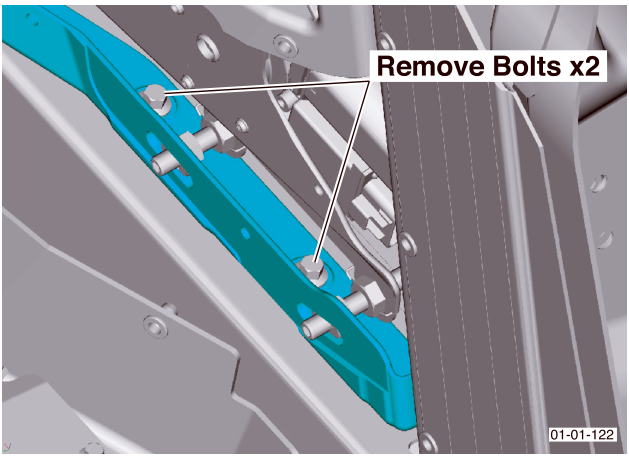

13. Remove the nuts (x2) that secure the bottom of the glass regulator. Pull the bottom of the glass regulator to reveal bolts (x2). Remove the bolts (x2).

Diagram showing two nuts at the bottom of the glass regulator being removed.

14. Remove the nut from the top of the glass regulator and withdraw the glass regulator.
