Automatic Locking Retractor (ALR)

The reductors in all seat positions feature ELR. During any period of sudden deceleration, or under lateral load when cornering at speed, a sensor weight within the safety belt retractor moves a locking pawl against the teeth on the retractor reel, which then locks the retractor preventing any further release of webbing. As soon as the load applied onto the retractor through the safety belt webbing is removed the locking pawl releases the retractor reel and normal movement is returned to the retractor.

Automatic Locking Retractor (ALR)

Automatic locking retractors (ALR) are installed to all passenger seat positions.

The safety belt webbing on these are clearly marked to show their operating feature. To initiate the ALR system, fasten the safety belt into it's buckle and pull all of the webbing from the retractor, as the safety belt is released the retractor locks allowing travel in only one direction thus producing a fixed length restraint and preventing the safety belt from introducing slack, making any child seat it may be restraining secure. The ALR system of the retractor is disengaged by unfastening the safety belt and allowing the safety belt to fully retract onto the reel.

Specifications

Torque Figures

Description

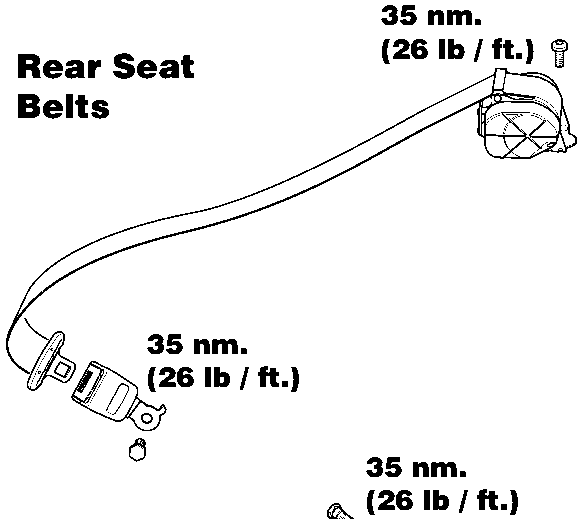

Rear Seat Belts 35 nm. (26 lb / ft.) 35 nm. (26 lb / ft.) 35 nm. (26 lb / ft.)

Description

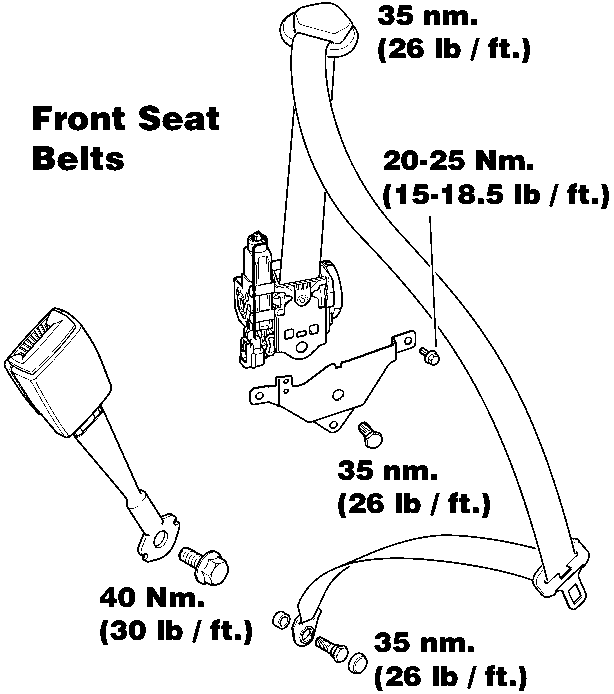

Front Seat Belts 35 nm. (26 lb / ft.) 20-25 Nm. (15-18.5 lb / ft.) 35 nm. (26 lb / ft.) 40 Nm. (30 lb / ft.) 35 nm. (26 lb / ft.)
