Restraining Devices › Install
01 Body systemInstall

Warning
Ensure that the deployable rollbars are secured in the lowered position.

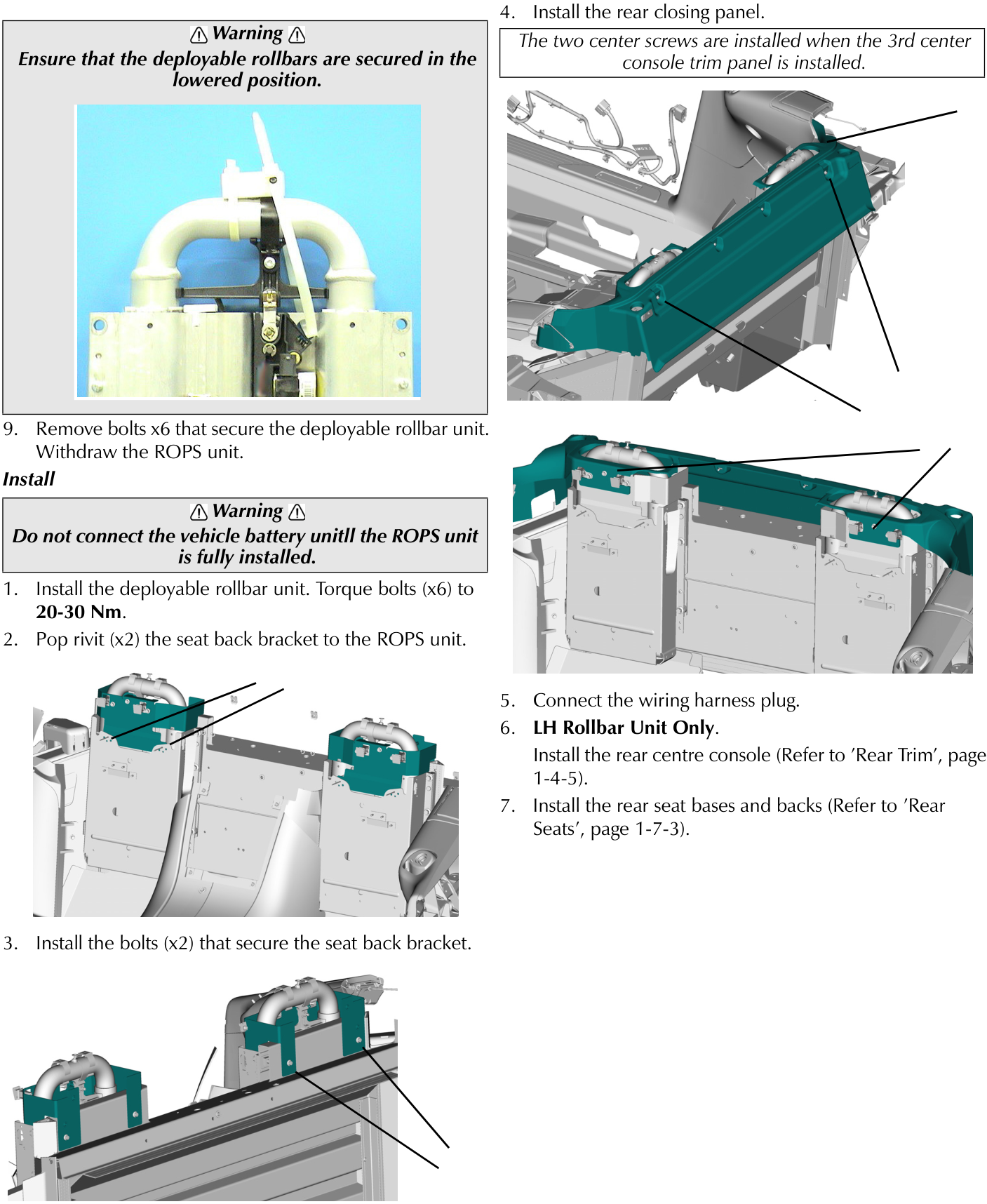

Photo of a deployed rollbar unit with a white zip tie securing it in the lowered position.
  1. Install the rear closing panel.

The two center screws are installed when the 3rd center console trim panel is installed.

Diagram showing the installation of the rear closing panel over the rollbar structure.
  1. Remove bolts x6 that secure the deployable rollbar unit. Withdraw the ROPS unit.

Install

Warning
Do not connect the vehicle battery unitll the ROPS unit is fully installed.

  1. Install the deployable rollbar unit. Torque bolts (x6) to 20-30 Nm.
  2. Pop rivit (x2) the seat back bracket to the ROPS unit.
Diagram showing the pop riveting of the seat back bracket to the ROPS unit.
  1. Install the bolts (x2) that secure the seat back bracket.
Diagram showing the installation of the bolts securing the seat back bracket.
  1. Connect the wiring harness plug.
  2. LH Rollbar Unit Only.
    Install the rear centre console (Refer to 'Rear Trim', page 1-4-5).
  3. Install the rear seat bases and backs (Refer to 'Rear Seats', page 1-7-3).
