Cooling System › Installation
03 EngineInstallation

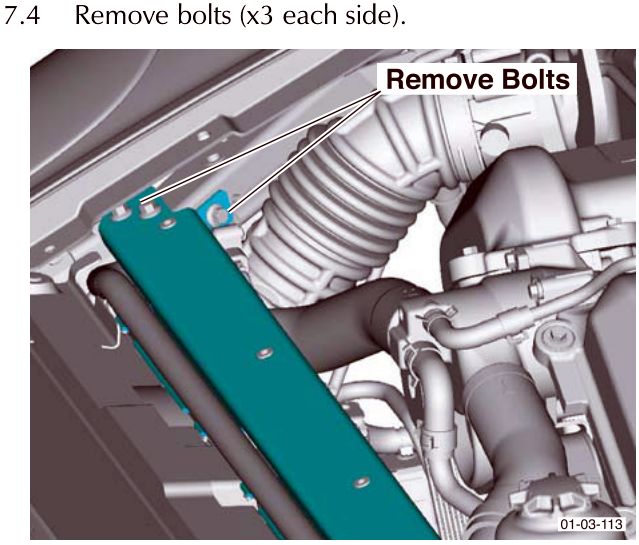

Diagram showing removal of bolts on the front crossmember
7. Remove bolts (x3 each side). 7.5 Remove bolts (x2). Withdraw the front crossmember.

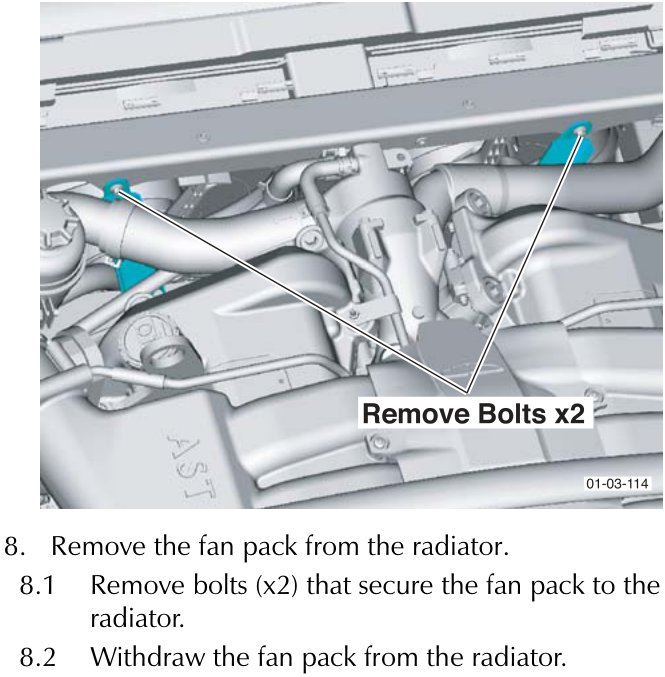

Diagram showing removal of bolts securing the fan pack to the radiator
8. Remove the fan pack from the radiator. 8.1 Remove bolts (x2) that secure the fan pack to the radiator. 8.2 Withdraw the fan pack from the radiator.

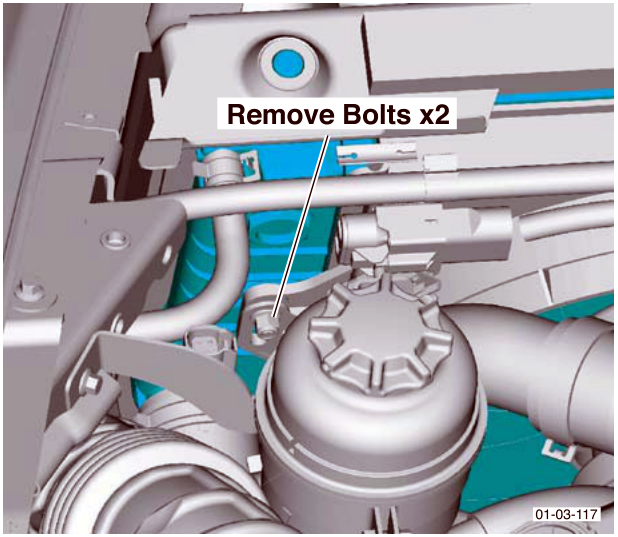

Diagram showing removal of hoses from the radiator
9. Remove hoses from the radiator.

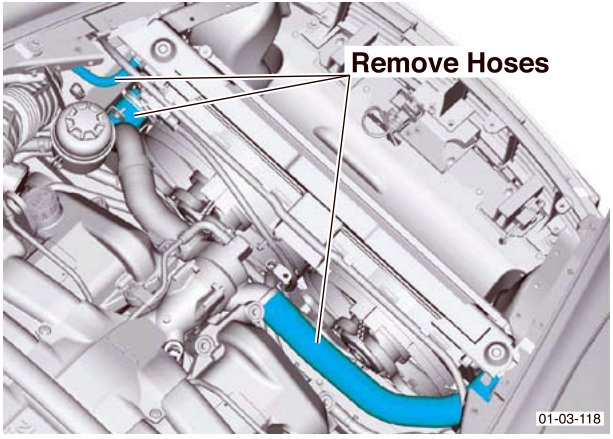

Diagram showing removal of hoses from the engine bay
10. Withdraw the radiator complete with the condenser.

Installation

  1. Install the radiator, complete with the condenser. Connect the radiator hoses.
  2. Install the fan pack.
  3. Install the front crossmember. Install the wings.
  4. Install the condenser A/C pipes. Torque bolts to 8-10 Nm.
  5. Install the 'Slam' panel.
  6. Install the headlight units (Refer to 'Front Lights (17.01)', page 17-1-2).
  7. Install the air filter boxes (Refer to 'Air Charging (03.12)', page 3-13-1).
  8. Fill the coolant system.
  9. Charge the A/C system.

Thermostat

Repair Operation Time (ROT)
ItemCode
Thermostat Renew03.03.GB

Removal

  1. Drain the engine coolant.
  2. Disconnect the hoses.

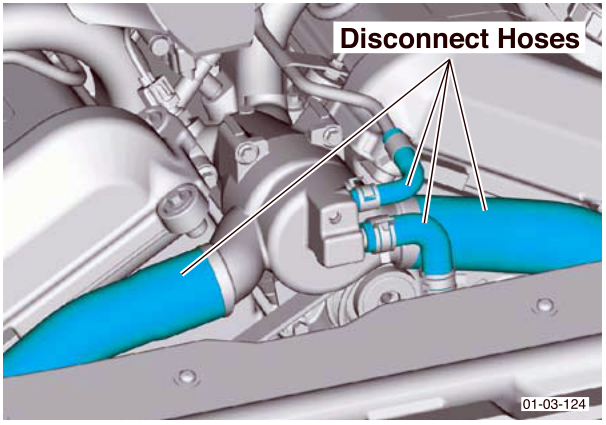

Diagram showing disconnecting hoses at the thermostat housing
3. Remove bolt (x1) from the timing cover (thermostat housing support bracket). 4. Remove the bolts (x3) that secure the thermostat.
