03 EngineEngine (03.00)

Engine (03.00)

Cooling System (03.03)

Description

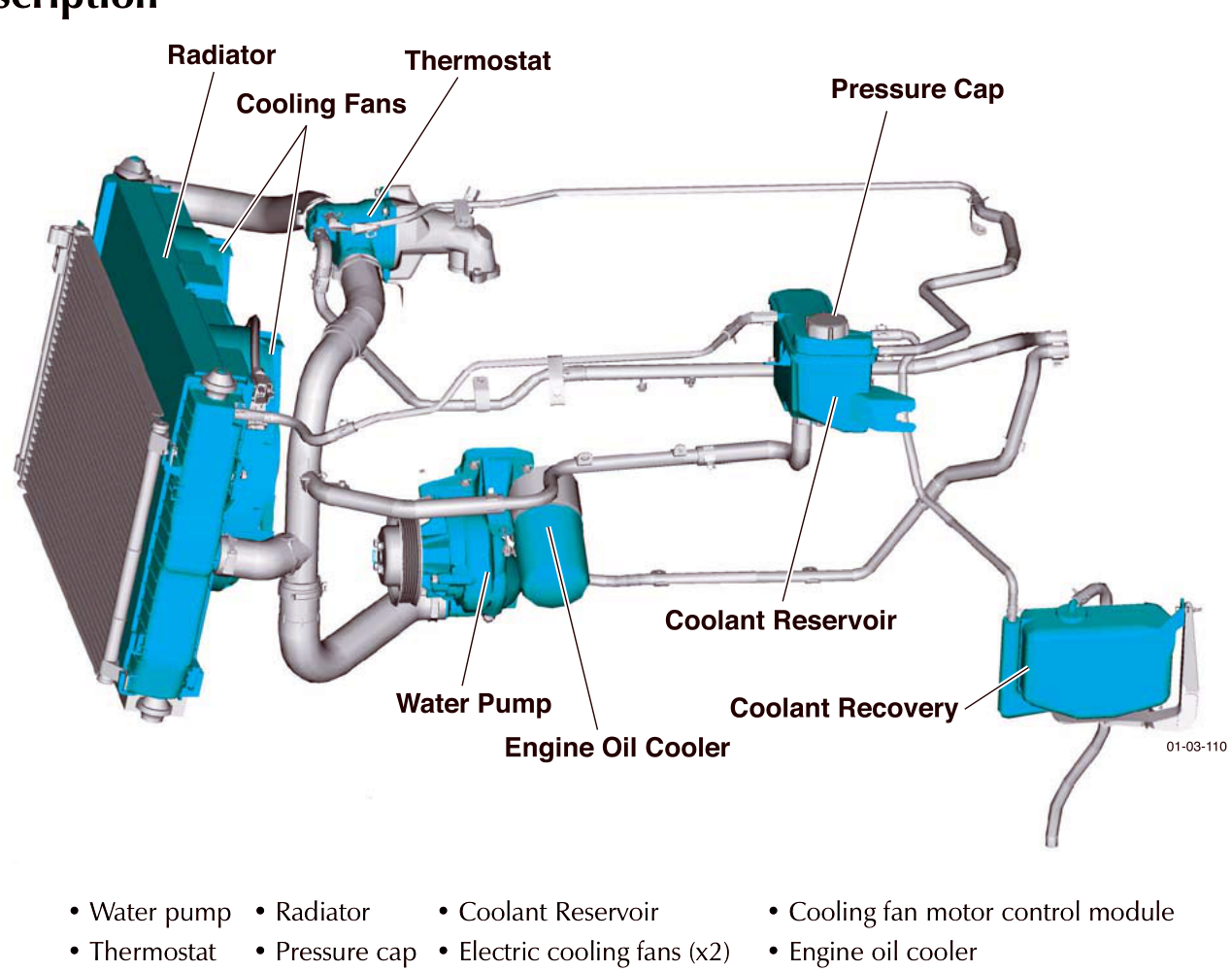

Diagram of the cooling system components including radiator, thermostat, cooling fans, pressure cap, water pump, engine oil cooler, coolant reservoir and coolant recovery
  • Water pump
  • Radiator
  • Coolant Reservoir
  • Cooling fan motor control module
  • Thermostat
  • Pressure cap
  • Electric cooling fans (x2)
  • Engine oil cooler

Coolant Circuit

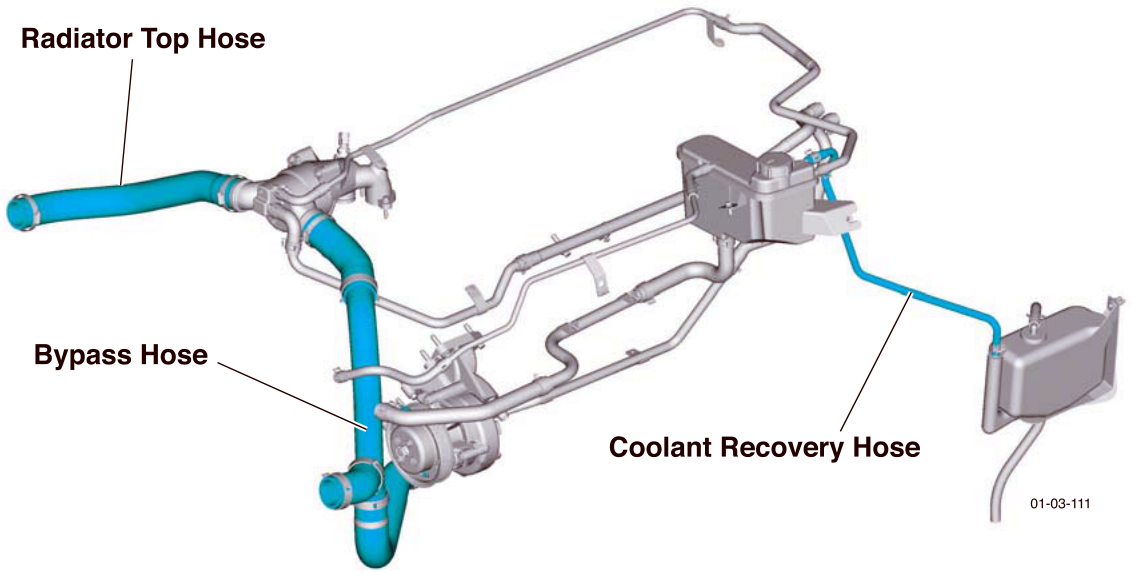

Diagram showing the coolant circuit hoses including radiator top hose, bypass hose and coolant recovery hose
