Maintenance (page 2 of 5)

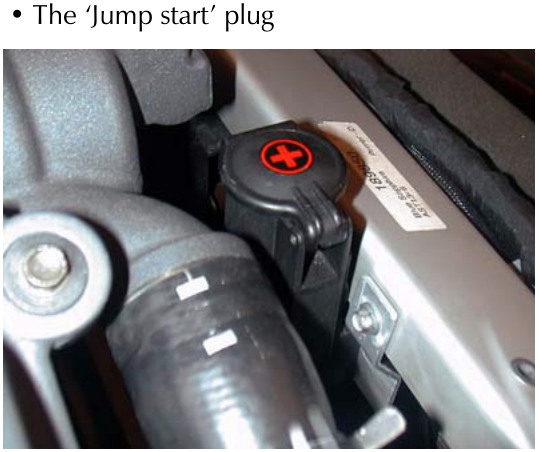

10. Disconnect the following from the forward cross member.

11. Manual Gearbox Only.
    Disconnect the clutch pipe.

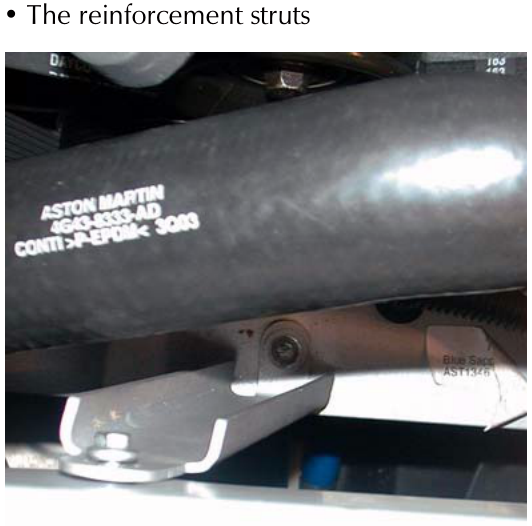

12. Remove the bolts and the reinforcement brackets from the inner wing.

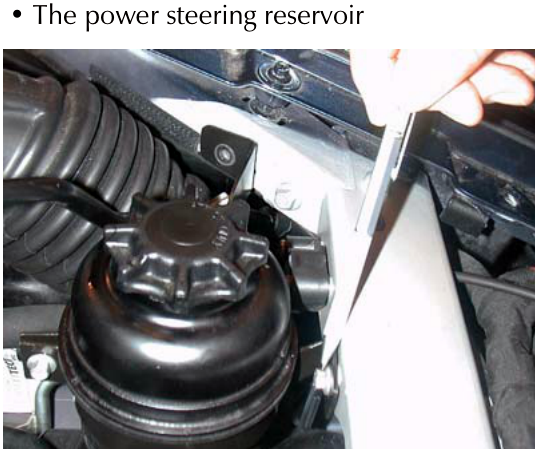

Remove the header tank to gain access. Be aware that there is a wiring harness plug connected to the header tank on the under side.

13. Centre the steering wheel. Remove the ignition key and engage the steering lock with the wheel as accurately centred as possible.

Failure to centre the steering wheel may cause damage to the restraint bag clock-spring and also may cause difficulties in attaining correct alignment of the steering wheel in the straight ahead position.

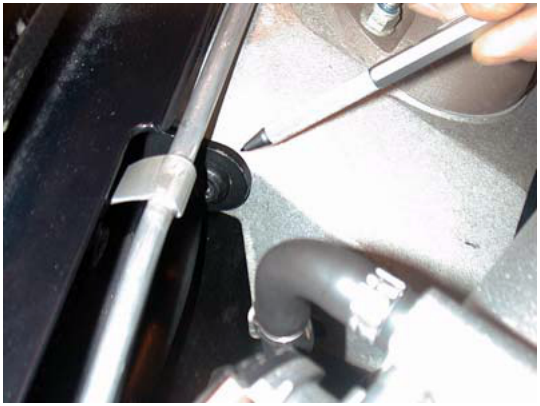

14. From inside the cabin, pull back the steering colum bulkhead seal. Remove the pinch bolt that secures the upper column to the intermediate shaft.

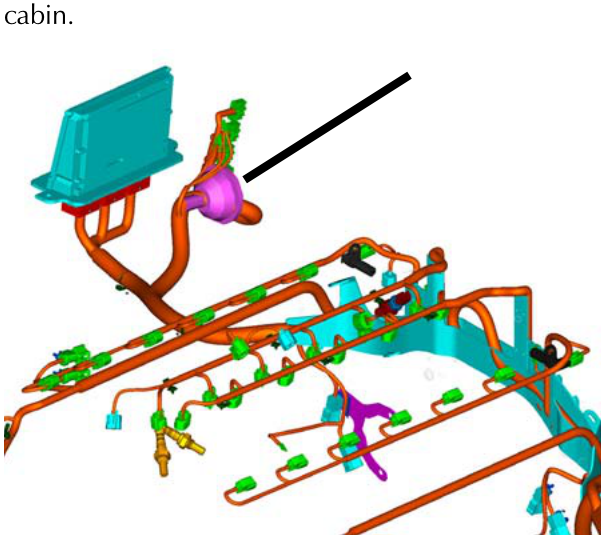

15. Disconnect the engine harness from inside the vehicle cabin.
