Maintenance (page 4 of 5)

26. Remove the PCMs. Disconnect the engine wiring harness plugs and remove the three screws that secure the PCM (each side).

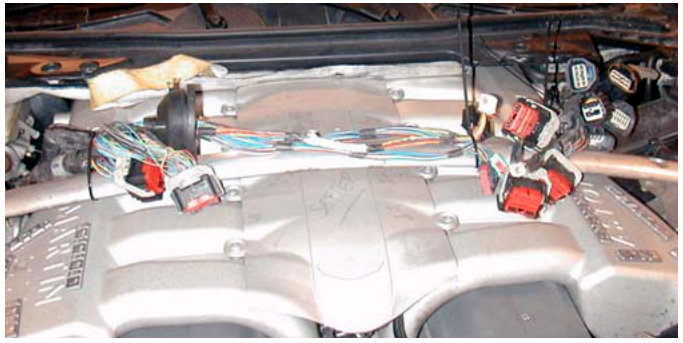

27. Move the removed engine wiring harness plugs into the engine bay and secure to the engine cross brace.

28. Remove the brake booster vacuum pipe
29. Disconnect the heater coolant pipes.

On LH drive vehicles the heater coolant pipes enter the bulkhead on the RH side.

30. Disconnect the front brake pipes:

Caution
Brake fluid must not be allowed to contact vehicle paint work. Remove spilt brake fluid from paint work by rinsing away with running water.

30.1 Disconnect the brake pipe from the brake modulator to the L/H front brake caliper.

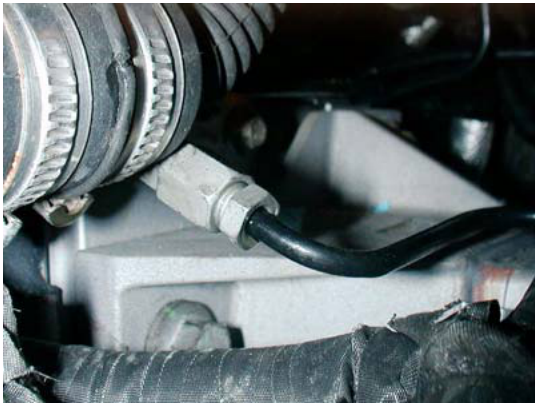

30.2 Disconnect the brake pipe in the RH wing.

31. Remove the intermediate steering shaft.

31.1 Remove the lower pinch bolt. Open the lower mount.

31.2 Pull the intermediate steering shaft downwards and remove.
