Removal
- Make
- Aston Martin
- Model
- DB9 Factory Workshop Manual
- Year
- Issue 2, 2005
- Section
- Engine Sealing › Removal
03 EngineRemoval · page 1 of 2
| Repair Operation Time (ROT) | |
|---|---|
| Item | Code |
| Crankshafts Front Oil Seal | TBA |
Removal
- Remove the timing cover (Refer to 'Camshaft Cover', page 3-11-3).
- Remove the oil seal from the timing cover.
Installation
- Clean the seal recess in the timing cover.
Lubricate the outside of the new seal and seal recess with engine oil. - Install the timing cover (Refer to 'Camshaft Cover', page 3-11-3).

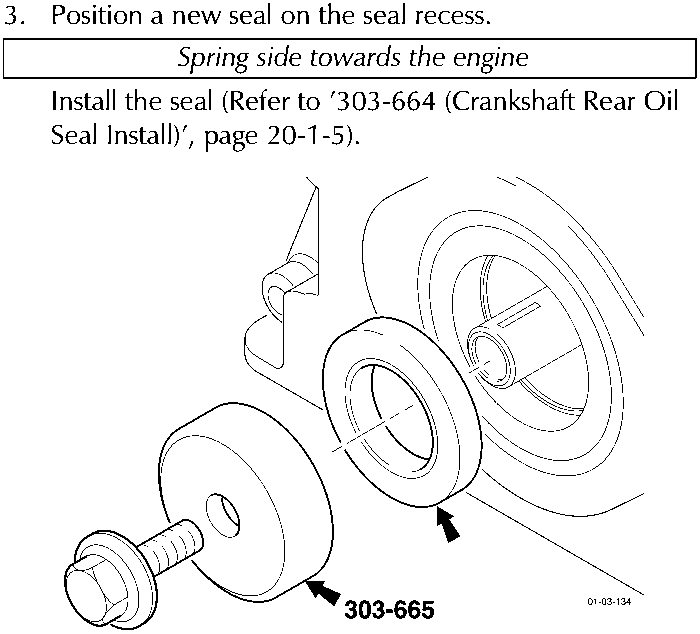

F1 Position a new seal on the seal recess.
Spring side towards the engine
Install the seal (Refer to '303-664 (Crankshaft Rear Oil Seal Install)', page 20-1-5).
Lubricate the seal surface with engine oil before installing the crankshaft damper.
