Circuit sheet 47: Ignition Coils
- Make
- Aston Martin
- Model
- DB9 Factory Workshop Manual
- Year
- Issue 2, 2005
- Section
- Circuit diagrams › Circuit sheet 47: Ignition Coils
18 Electric distribution and electronic controlCircuit sheet 47: Ignition Coils

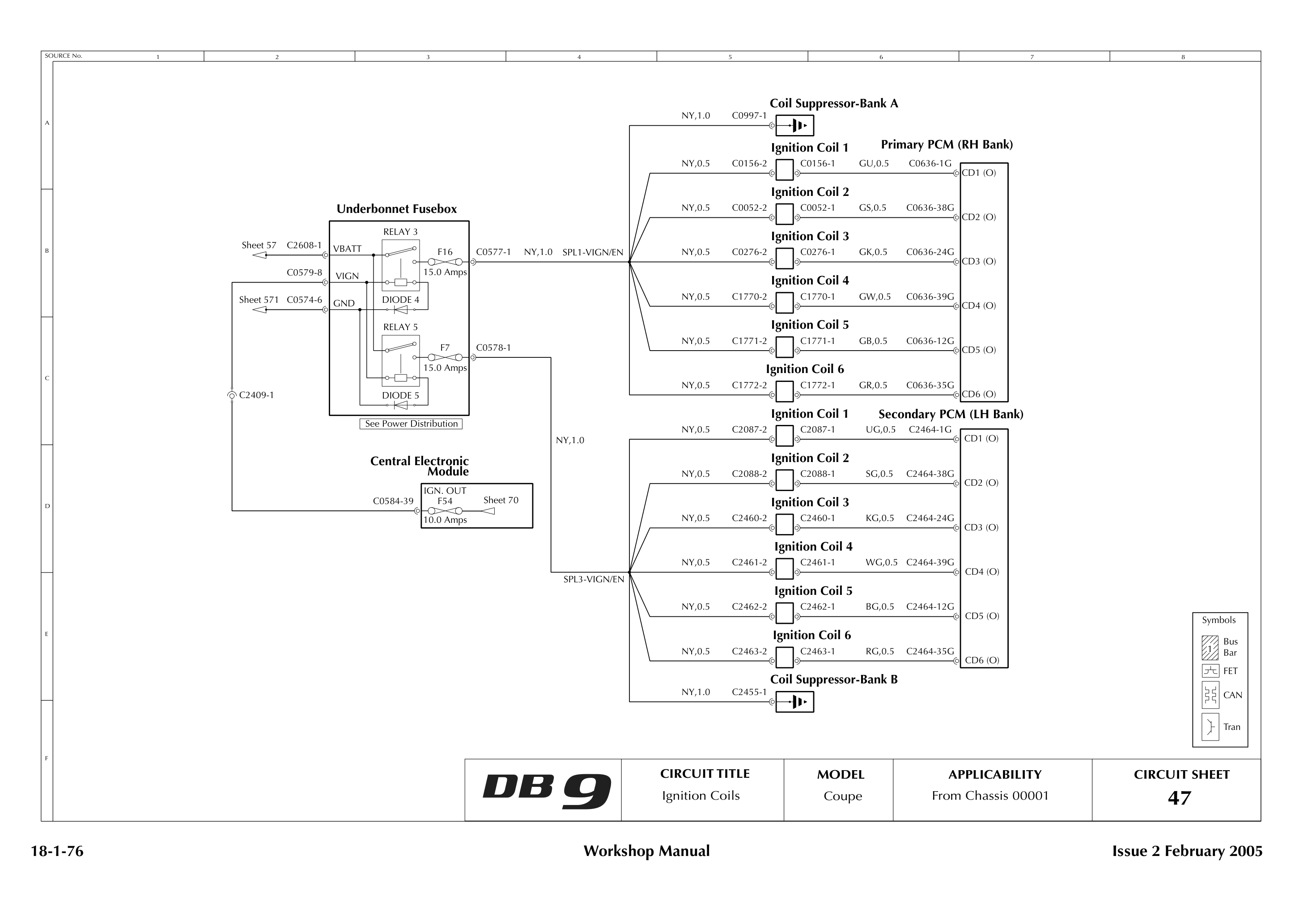

Circuit sheet 47: Ignition Coils – diagram from the 18 Electric distribution and electronic control chapter of the Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005) factory manual.
Circuit sheet 47: Ignition Coils
