Circuit sheet 59: Power Steering
- Make
- Aston Martin
- Model
- DB9 Factory Workshop Manual
- Year
- Issue 2, 2005
- Section
- Circuit diagrams › Circuit sheet 59: Power Steering
‹ Prev Circuit sheet 58: Power Distribution – (Dirty Feeds)Next › Circuit sheet 60: Roll Over Protection
18 Electric distribution and electronic controlCircuit sheet 59: Power Steering

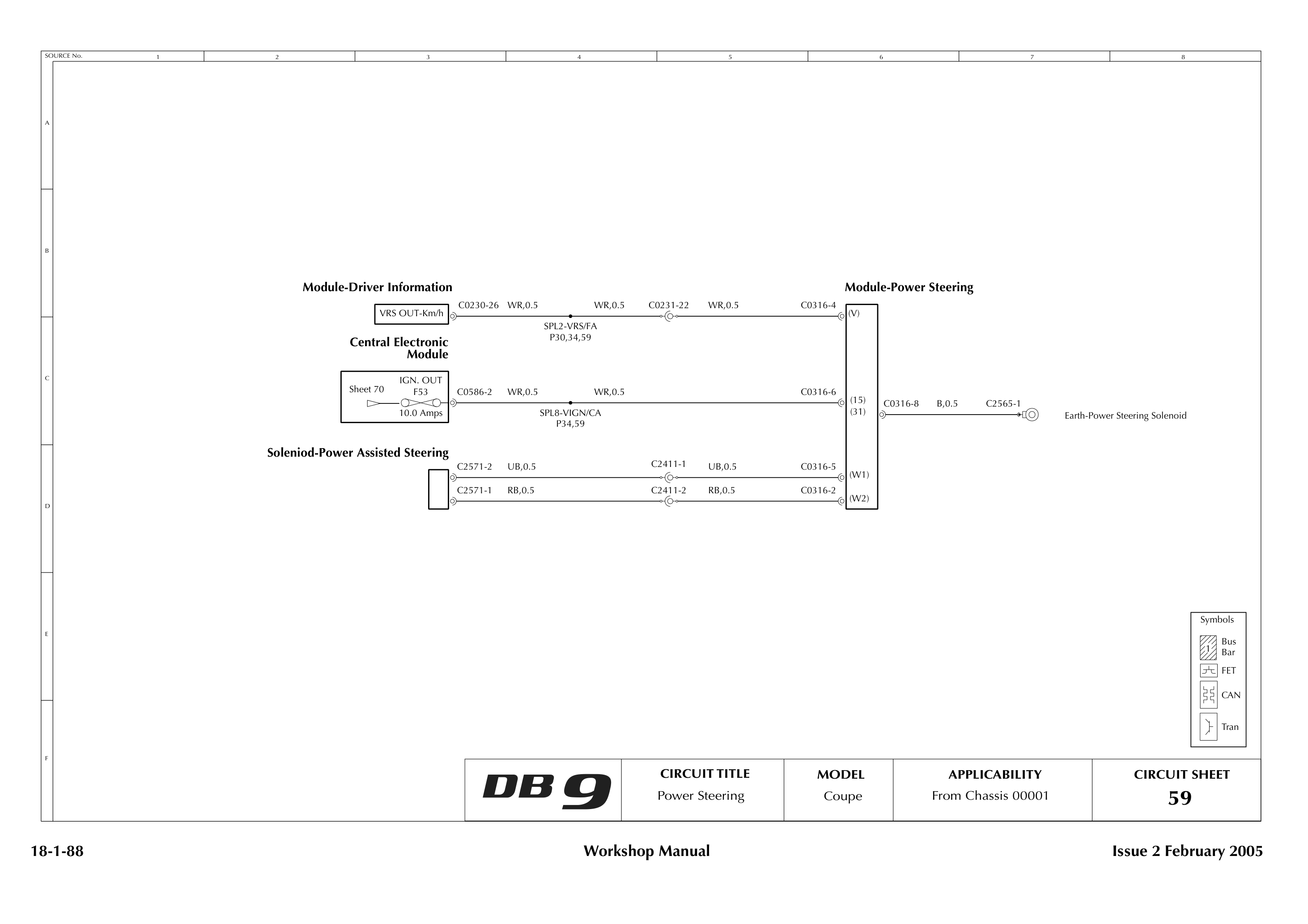

Circuit sheet 59: Power Steering – diagram from the 18 Electric distribution and electronic control chapter of the Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005) factory manual.
Circuit sheet 59: Power Steering
‹ Prev Circuit sheet 58: Power Distribution – (Dirty Feeds)Next › Circuit sheet 60: Roll Over Protection
