Circuit sheet 9: Automatic Transmission
- Make
- Aston Martin
- Model
- DB9 Factory Workshop Manual
- Year
- Issue 2, 2005
- Section
- Circuit diagrams › Circuit sheet 9: Automatic Transmission
18 Electric distribution and electronic controlCircuit sheet 9: Automatic Transmission

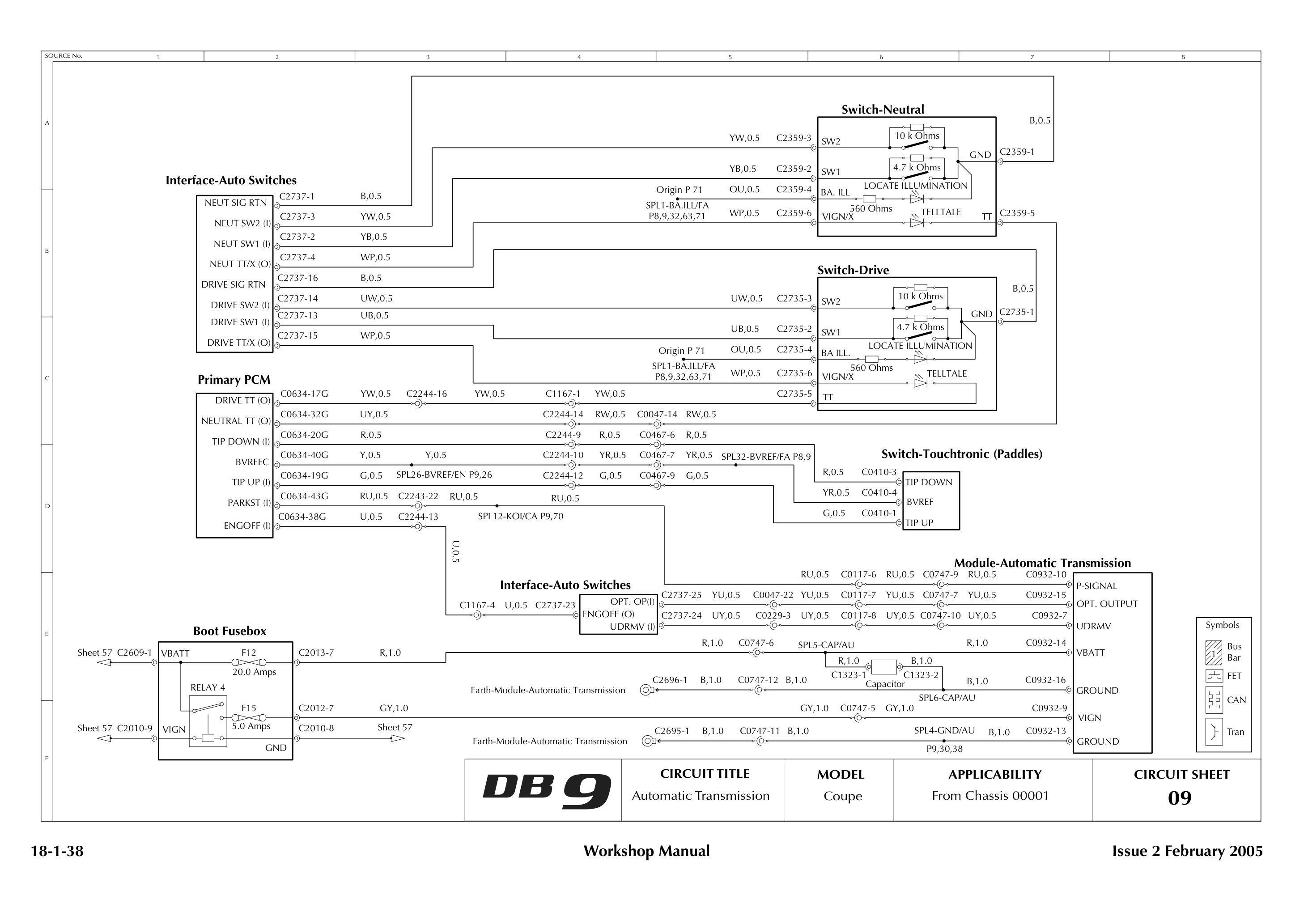

Circuit sheet 9: Automatic Transmission – diagram from the 18 Electric distribution and electronic control chapter of the Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005) factory manual.
Circuit sheet 9: Automatic Transmission
