18 Electric distribution and electronic controlCircuit sheet 8: Automatic Transmission

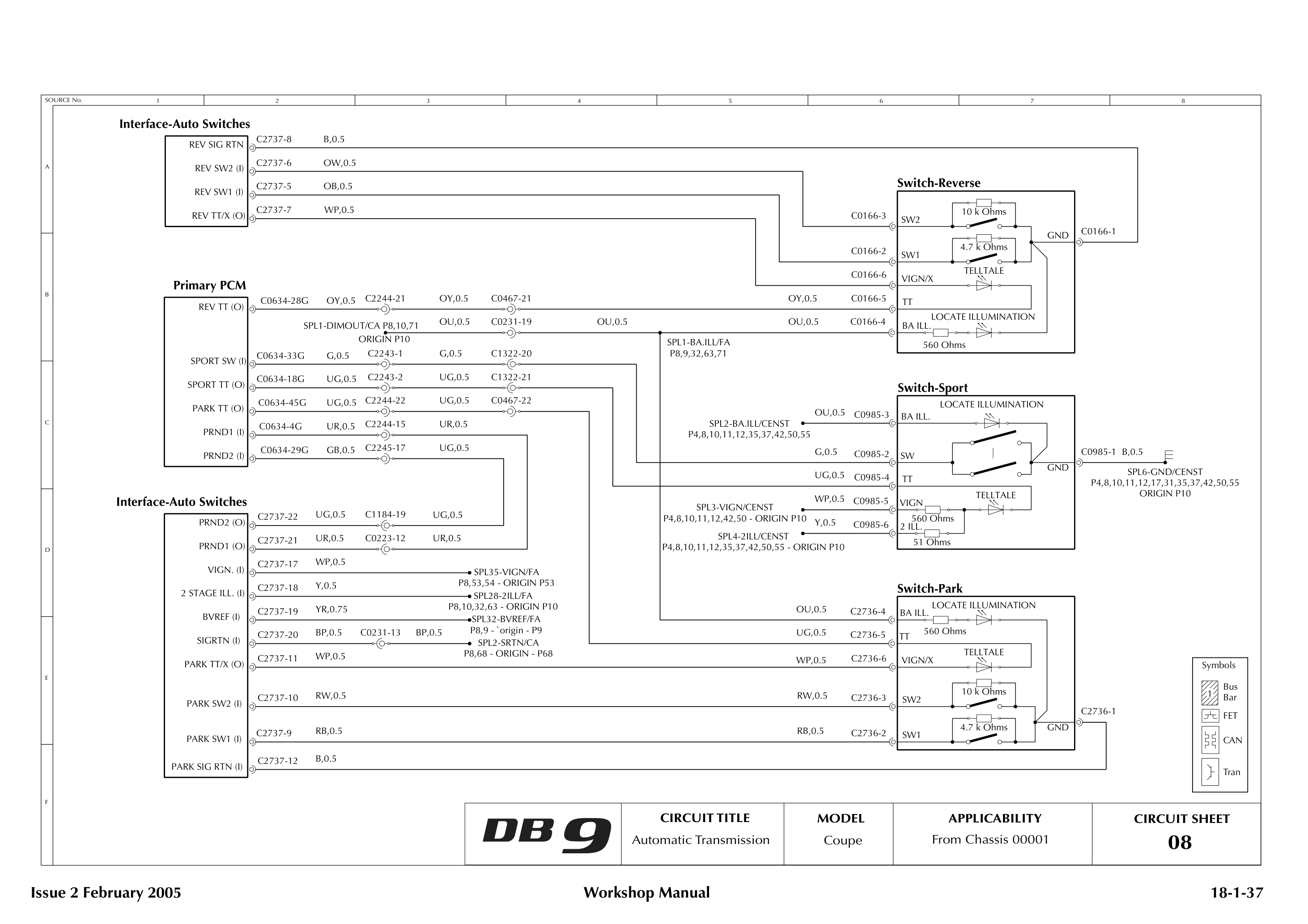

Circuit sheet 8: Automatic Transmission – diagram from the 18 Electric distribution and electronic control chapter of the Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005) factory manual.
Circuit sheet 8: Automatic Transmission
