Torque Figures (page 2 of 2)
- Make
- Aston Martin
- Model
- DB9 Factory Workshop Manual
- Year
- Issue 2, 2005
- Section
- Torque Figures
20 Appendix and glossaryTorque Figures · page 2 of 2
Torque Figures (page 2 of 2) – diagram from the 20 Appendix and glossary chapter of the Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005) factory manual.

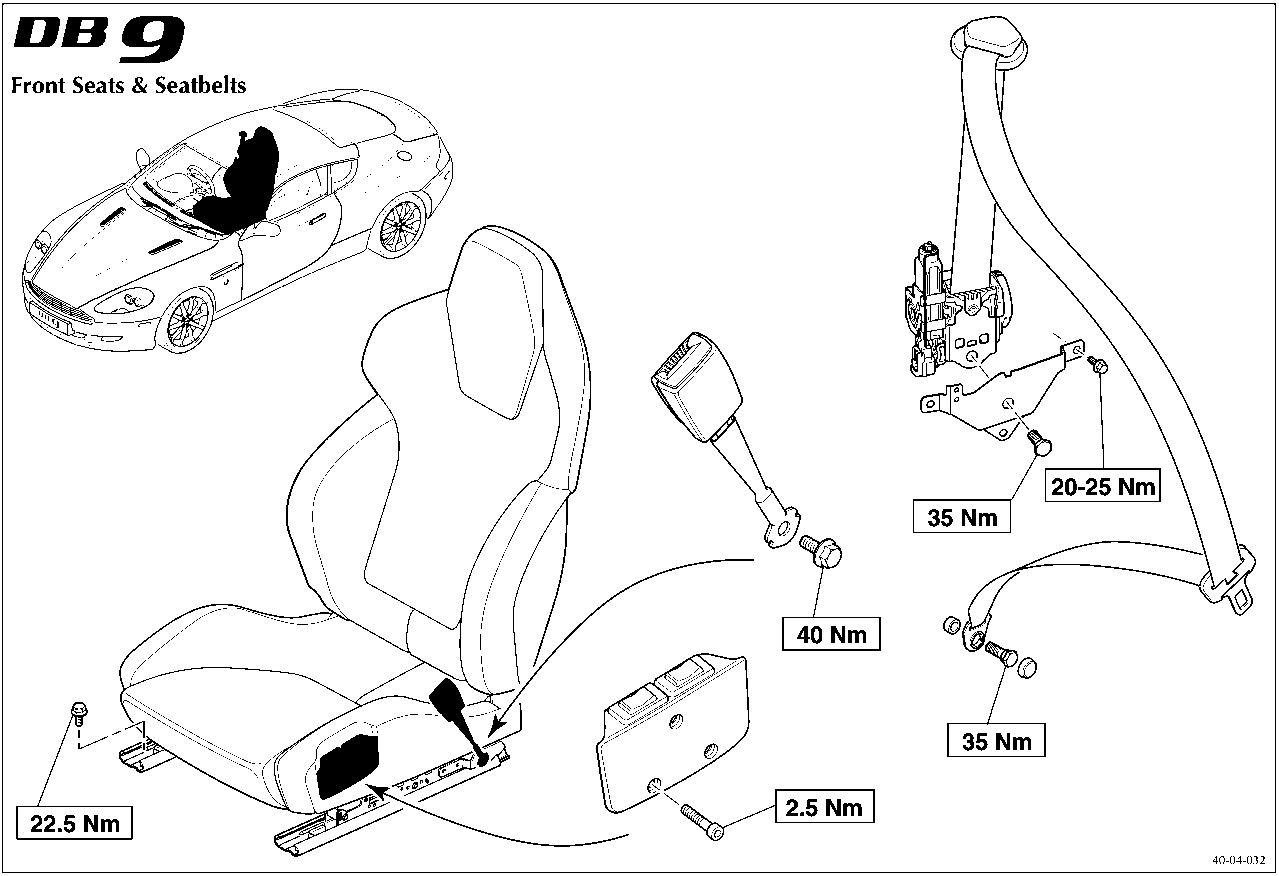

Front Seats & Seatbelts

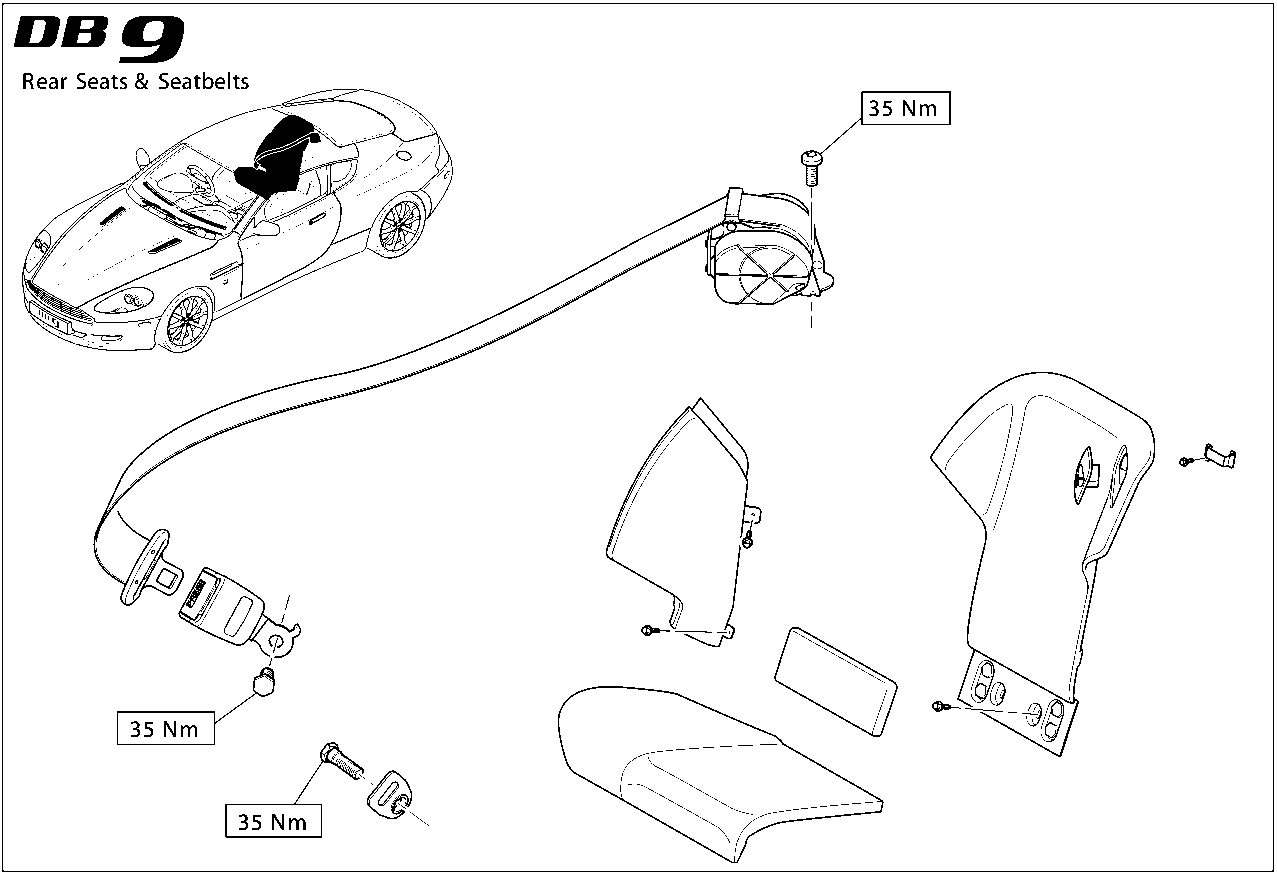

Rear Seats & Seatbelts
