Figure 2

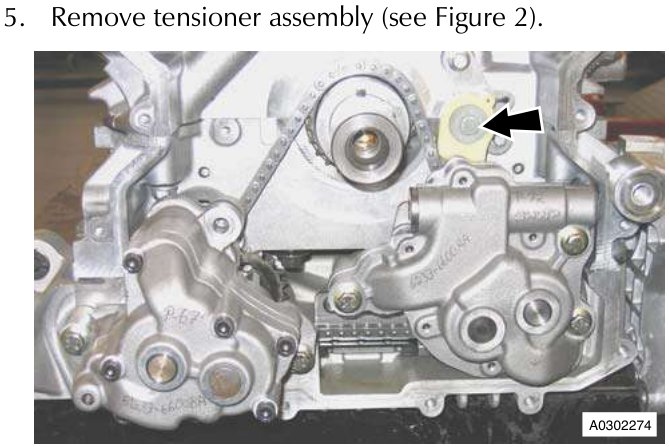

F1 Remove tensioner assembly (see Figure 2).

Figure 2

1. Remove bolts (x3) securing oil pressure pump to sump.
2. Release chain from oil pressure pump sprocket, remove oil pump.
3. Remove and discard oil pressure pump gasket.

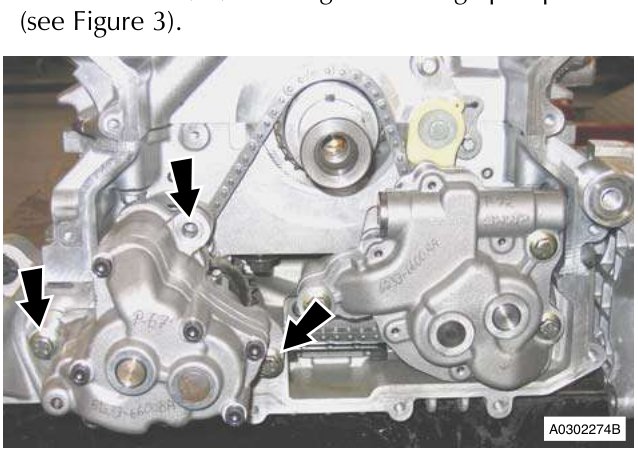

4. Remove bolts (x3) securing oil scavenge pump to sump (see Figure 3).

Figure 5

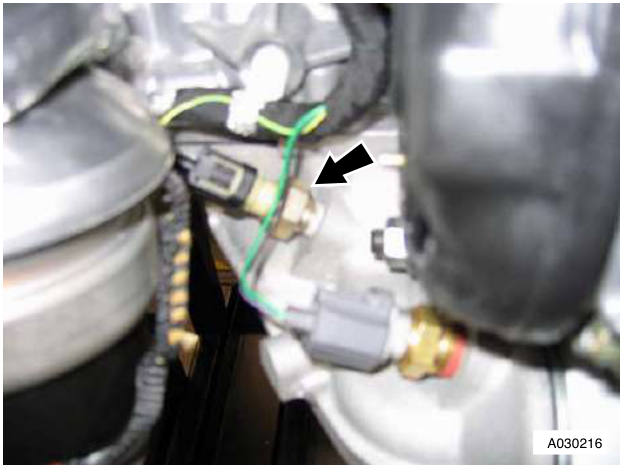

13. Disconnect multiplug from oil pressure sensor (see Figure 5).

Figure 3

10. Release chain from oil scavenge pump sprocket, remove scavenge pump.

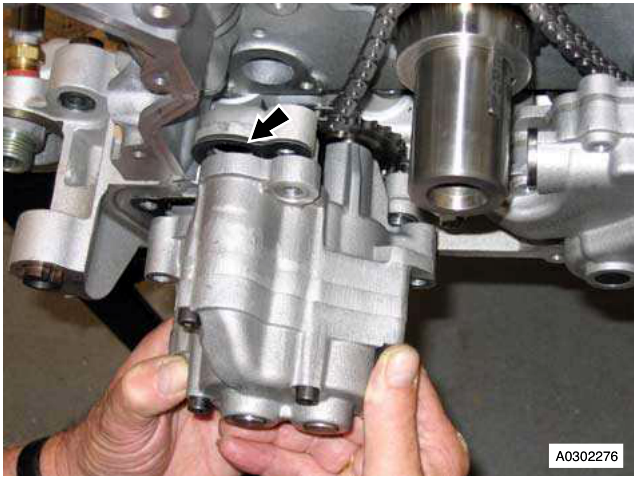

11. Remove and discard oil scavenge pump gasket (see Figure 4).

Figure 4

12. Remove oil pump(s) drive sprocket.

Figure 6

14. Disconnect multiplug from engine electric coolant temperature sensor (see Figure 6).
