Aston Martin V8 Vantage Factory Workshop Manual (2005-2010)04 · 03 Engine
04 · Engine

Figure 8

Make
Aston Martin
Model
V8 Vantage Factory Workshop Manual
Year
2005–2010
Section
Power Conversion › Figure 8
03 EngineFigure 8
  1. Remove bolts (x4) securing LH and RH HEGO sensor multiplug brackets to sump (see Figure 8).

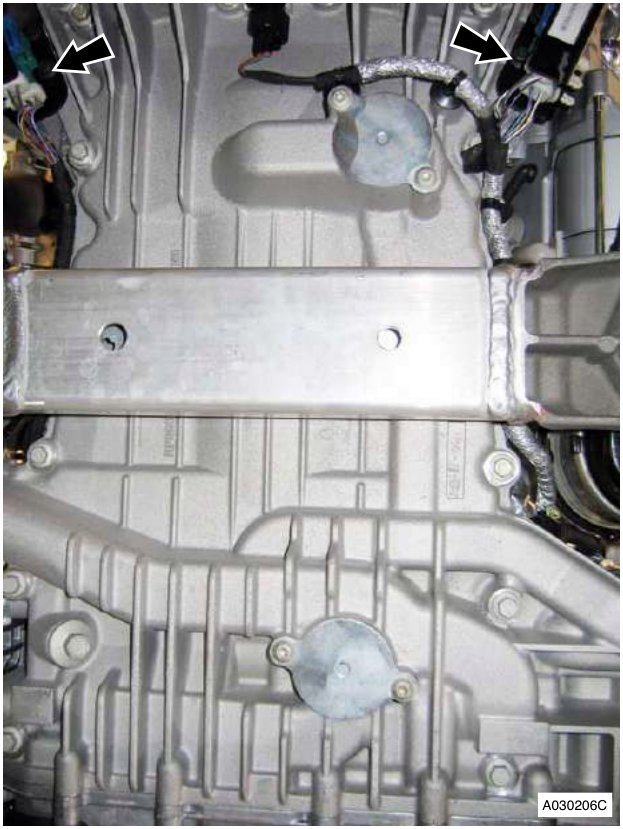

    2. Engine sump area with arrows pointing to bolts securing LH and RH HEGO sensor multiplug brackets

    Figure 8

  2. Disconnect multiplug from A/C compressor.
  3. Remove bolts (x4) securing A/C compressor to mounting bracket. Remove compressor.
  4. Remove bolts (x2) securing inlet and outlet oil pipes to sump (see Figure 9).

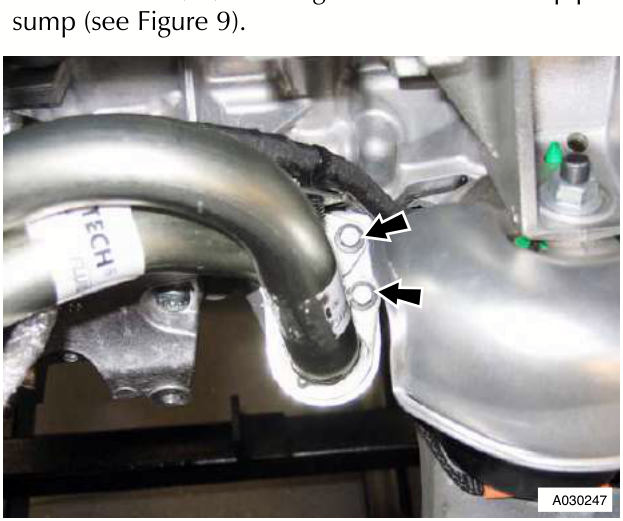

    5. Close-up of oil pipes connected to sump with arrows pointing to the bolts

    Figure 9

  5. Release both oil pipes together from sump, remove and discard O-ring seals from pipes.
  6. Remove Torx bolts (x4) securing A/C compressor mounting bracket to engine bedplate and sump. Remove bracket (see Figure 10).

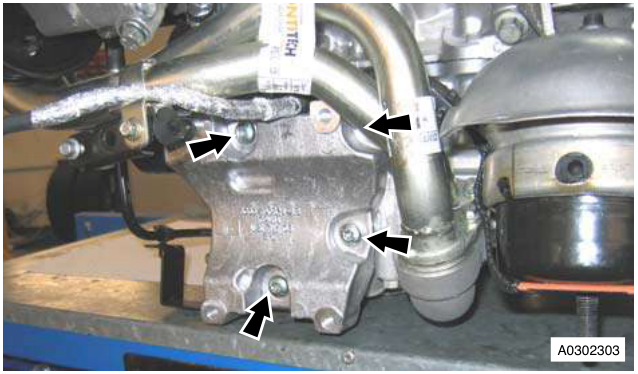

    7. A/C compressor mounting bracket with arrows pointing to the Torx bolts

    Figure 10

  7. Remove bolts (x16) securing sump to engine bedplate (see Figure 11).

    8. Figure 11

  8. Release and remove sump.
  9. Remove bolts (x8) securing windage tray to engine bedplate, remove windage tray.

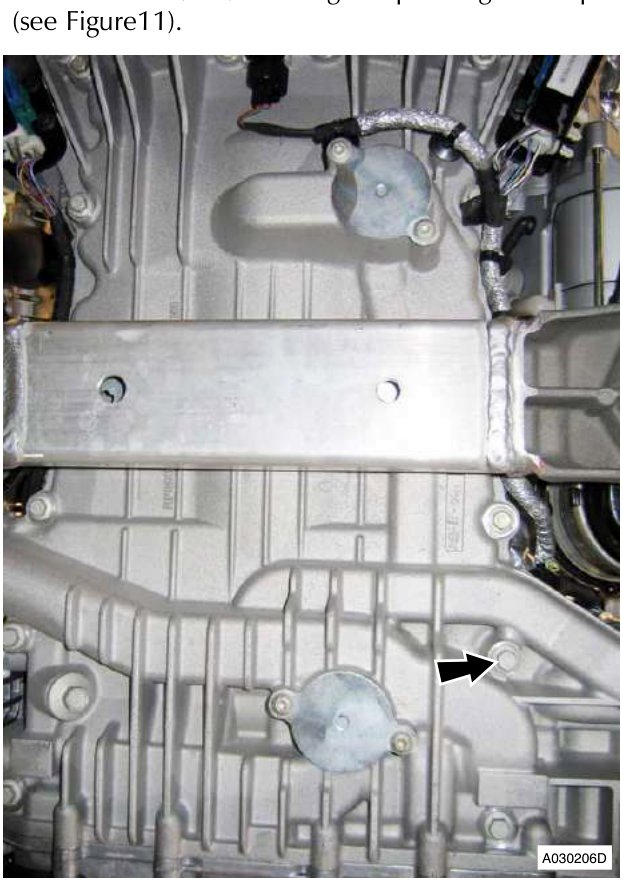

Arrow points to bolt on engine block for removal or installation
