Aston Martin V8 Vantage Factory Workshop Manual (2005-2010)04 · 03 Engine
04 · Engine

Install

Make
Aston Martin
Model
V8 Vantage Factory Workshop Manual
Year
2005–2010
Section
Valve Train › Install
03 EngineInstall · page 1 of 3

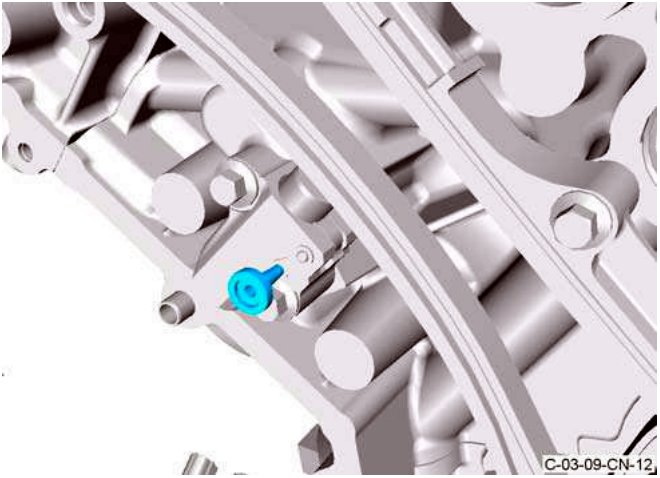

  1. Install an applicable pin into the timing chain tensioner.
Timing chain tensioner with pin installed

Figure 16

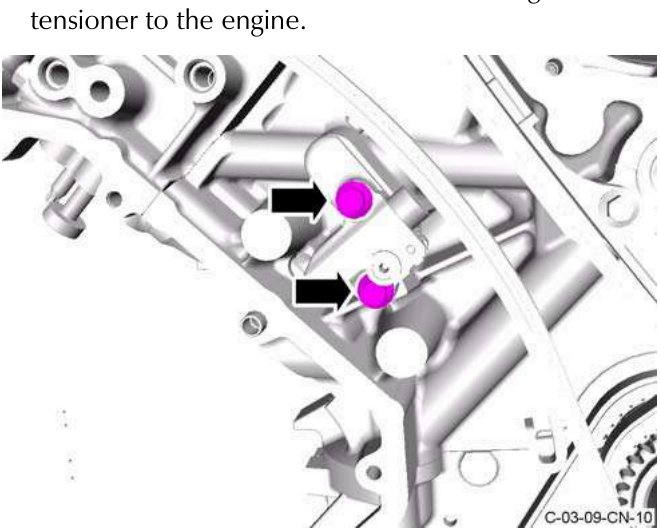

  1. Remove the two bolts that attach the timing chain tensioner to the engine.
Two bolts on timing chain tensioner

Figure 17

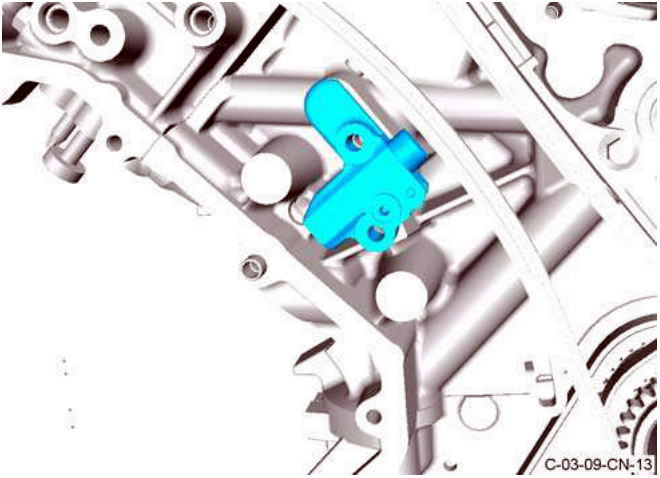

  1. Remove the timing chain tensioner.
Timing chain tensioner removed

Figure 18

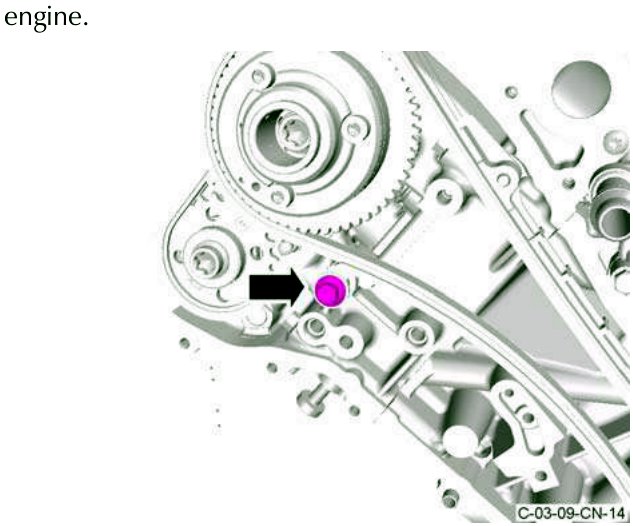

  1. Remove the bolt that attaches the tensioner arm to the engine.
Bolt attaching tensioner arm to engine

Figure 19

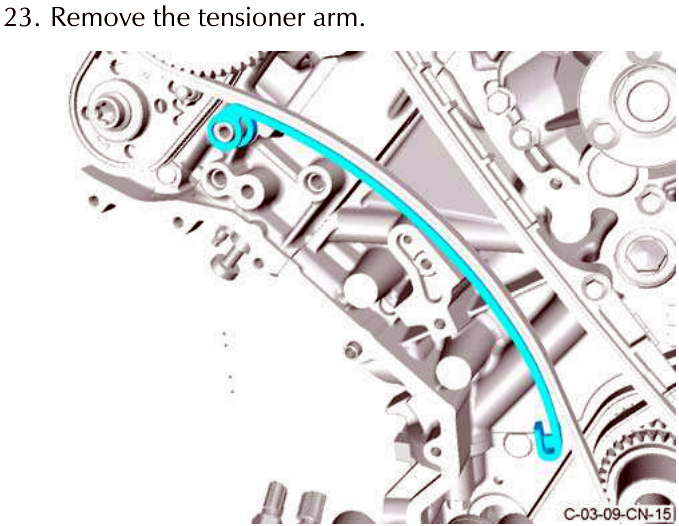

  1. Remove the tensioner arm.
Tensioner arm removed

Figure 20

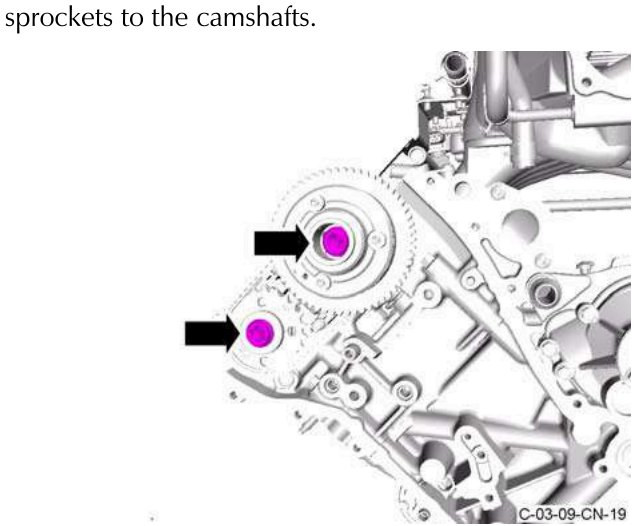

  1. Loosen the two Torx bolts that attach the camshaft pockets to the camshafts.
Two Torx bolts on camshaft pockets

Figure 21

Install

  1. Install the tensioner arm (refer to Figure 20).
