Aston Martin V8 Vantage Factory Workshop Manual (2005-2010)04 · 03 Engine
04 · Engine

Install (page 3 of 3)

Make
Aston Martin
Model
V8 Vantage Factory Workshop Manual
Year
2005–2010
Section
Valve Train
03 EngineInstall · page 3 of 3

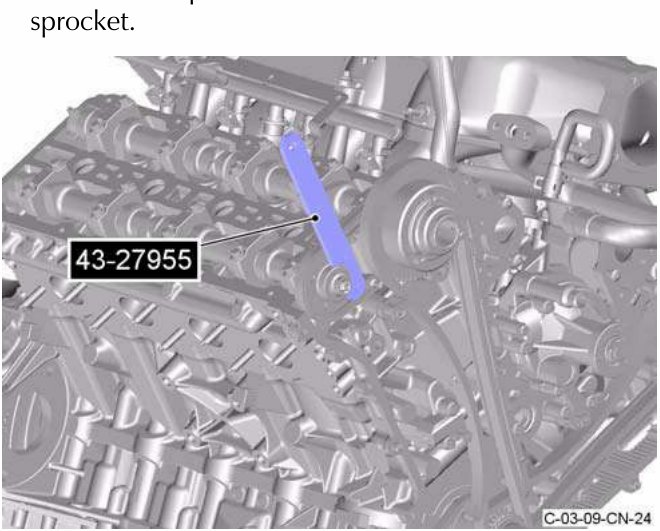

  1. Remove the special tool from the exhaust camshaft procket.
    2. Exhaust camshaft procket with special tool F1

    Figure 26

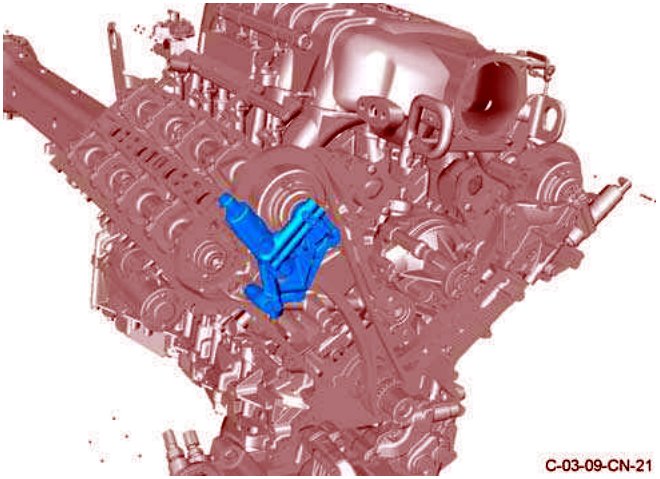

  2. Install the right side bush carrier for the VCT.
    3. Right side bush carrier for the VCT F2

    Figure 27

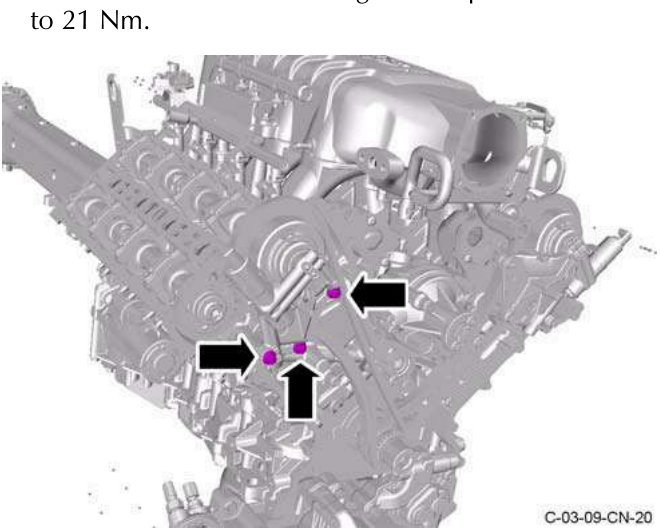

  3. Install the three bolts that attach the right side bush carrier for the VCT to the engine. Torque the three bolts 21 Nm.
    4. Three bolts for right side bush carrier F5

    Figure 28

  4. Use the applicable equipment to lift the vehicle and make it safe.

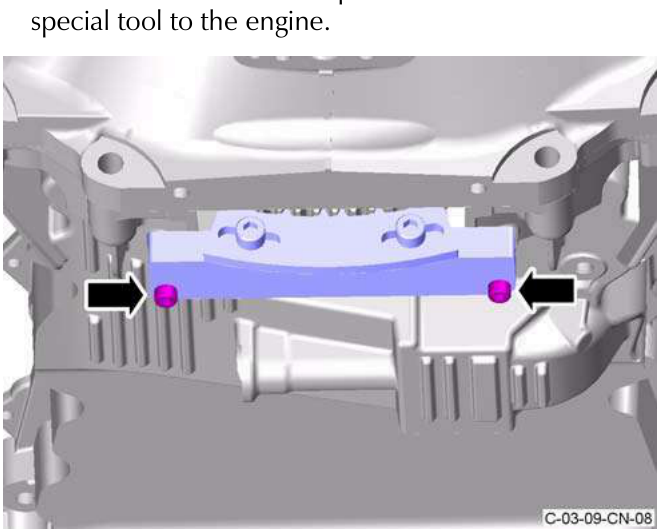

  5. Remove the two socket cap screws that attach the special tool to the engine.
    6. Socket cap screws attaching special tool F3

    Figure 29

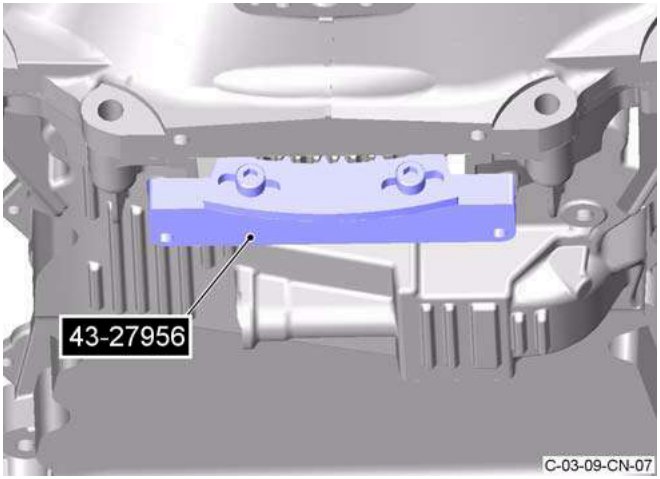

  6. Remove the special tool from the flywheel.
    7. Special tool on flywheel F4

    Figure 30

  7. Lower the vehicle.

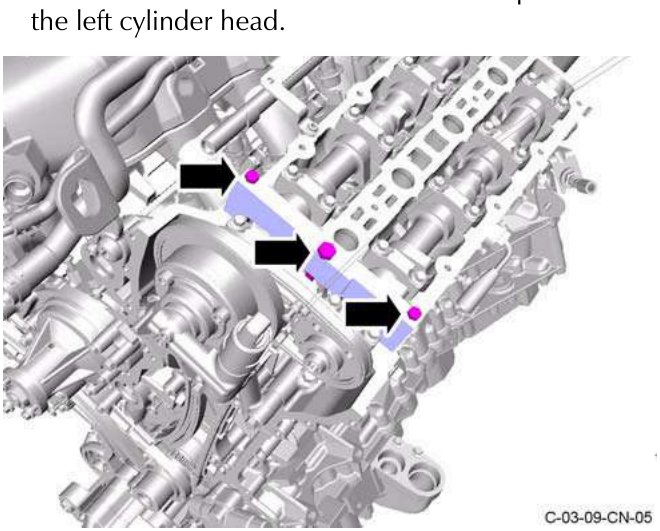

  8. Remove the three screws that attach the special tool to the left cylinder head.
    9. Three screws attaching special tool to left cylinder head F6
  9. Remove the special tool from the left cylinder head.
