Running gearPower steering and hose connections: general view

Power steering and hose connections: general view
Power steering and hose connections: general view – Audi A2
1 - Motor/pump unit
q   Checking → Running gear self-diagnosis for ESP, steering; Rep. Gr.01
q   Checking delivery pressure → Chapter
q   Removing and installing → Chapter
2 - Spacer bracket
3 - Spacer
4 - Return line
q   Must not be clamped during dismantling operations
q   On vehicles with TDI engine, return line must be secured to drive shaft guard plate with cable tie → Fig.
5 - Expansion hose
q   Must not be clamped during dismantling operations
6 - Wiring from power steering sensor -G250-
q   Power steering box - motor/pump unit
7 - Power steering box
q   Removing and installing → Chapter

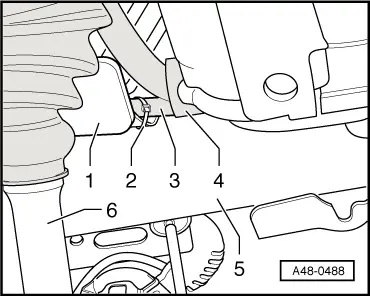

Securing return line
–  Secure return line -3- to guard plate -1- for drive shaft -6- using cable tie -2-.
Note the following points:
t  Take care not to pinch return line with cable tie.
t  Do not push expansion hose -4- too far downwards.
5 - Longitudinal member
  A48-0488
