Removing and installing brake pedal (vehicles with manual gearbox) On vehicles with manual gearbox, the mounting bracket must be removed in order to remove the brake pedal. –  Remove mounting bracket (vehicles with manual gearbox) → Chapter. Removing brake pedal with mounting bracket removed Special tools and workshop equipment required

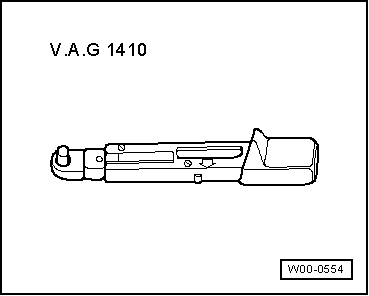

t  Torque wrench -V.A.G 1410-

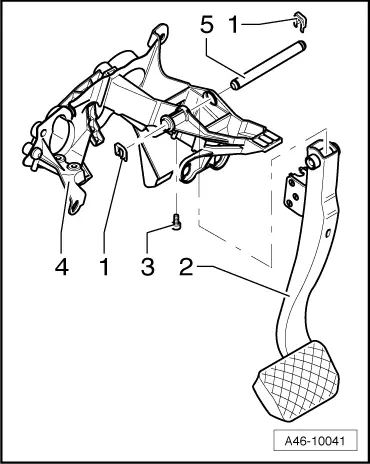

–  Remove bolt -3-.

–  Pull off retaining clip -1- on left side and pull out pin -5- to the right. –  Remove brake pedal. Installing brake pedal with mounting bracket removed   WARNING If possible, stop on brake pedal should always be left installed; otherwise mounting for brake light sensor could break off if brake pedal is released too abruptly.

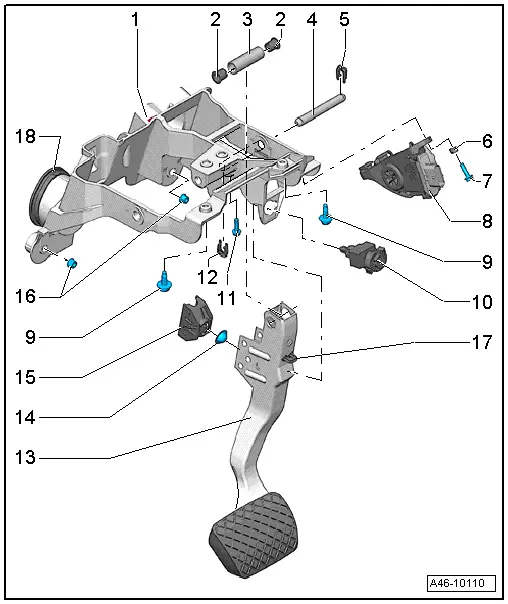

If possible, stop -17- on brake pedal must always be left installed; otherwise mounting for brake light sensor -10- could break off if brake pedal is released too abruptly.

–  Push retaining clip (right-side) onto pin. –  Slide pin from right to left through shaft in brake pedal.

–  Secure pin with retaining clip -1- on left side. The pin must be secured with the retaining clips on both sides.

–  Fit bolt -3- and tighten. –  Install mounting bracket (vehicles with manual gearbox) → Chapter.
