INTRODUCTION - ENGINE CRANKCASE

1.4 16v

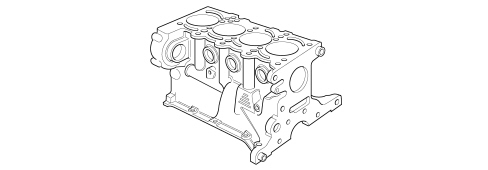

CONSTRUCTION SPECIFICATIONS

The crankcase is made of of high mechanical strength cast iron.

The crankshaft is supported by five main bearings.

The cylinders are formed directly in the crankcase and sorted into three size categories plus one oversize.

Special channels in the crankcase walls carry coolant and lubrication fluid.

LOWER CRANKCASE

The lower crankcase is made from die-cast aluminium alloy with cast iron main bearing caps.

The machining of the supports and main bearing caps is carried out together with the crankcase.

The matching with the upper crankcase is achieved by means of bolts and locating dowels which guarantee the precision of the fitting.

There is a bead of sealant between the two crankcases to prevent oil leaks.

The upper and lower crankcases are illustrated in the diagram below.

1.9 JTD 8v, 1.9 JTD 16v

CONSTRUCTION SPECIFICATIONS

The crankcase is made from spheroid cast iron.

The cylinders are formed directly in the crankcase and sorted into three size categories plus one oversize.

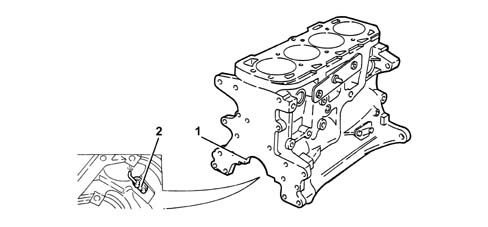

The crankshaft is supported by five main bearings (1).

Special channels in the crankcase walls carry coolant and lubrication fluid.

The lower part of each cylinder contains a jet (2) that sprays oil onto the piston crown to cool it and to ensure the gudgeon pin is lubricated.

1.4 16v TJet

CONSTRUCTION SPECIFICATIONS

The crankcase is made of of high mechanical strength cast iron.

The crankshaft is supported by five main bearings.

The cylinders are formed directly in the crankcase and sorted into three size categories plus one oversize.

Special channels in the crankcase walls carry coolant and lubrication fluid.

Compared with the naturally aspirated version, the new cylinder block/crankcase for the TJet differs through the more efficient internal circulation of the coolant and through the height which has been increased by 0.8 mm

LOWER CRANKCASE

The lower crankcase is made from die-cast aluminium alloy with cast iron main bearing caps.

The machining of the supports and main bearing caps is carried out together with the crankcase.

The matching with the upper crankcase is achieved by means of bolts and locating dowels which guarantee the precision of the fitting.

There is a bead of sealant between the two crankcases to prevent oil leaks.

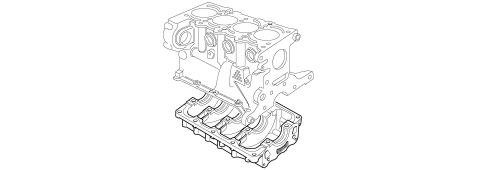

The upper and lower crankcases are illustrated in the diagram below.

The functions of the lower crankcase are:

- it constitutes the load carrying structure with the upper crankcase;

- it supports the crankshaft loads and reactions;

- it allows the return of the engine and turbocharger lubrication oil to the sump;

- it supports the engine oil sump;

- it supports the intermediate shaft bearing support.
