Car size
- Make
- Fiat
- Model
- Croma Factory Service Manual
- Year
- 2005–2010
- Section
- Design descriptions and specifications › Car size
SpecificationsCar size

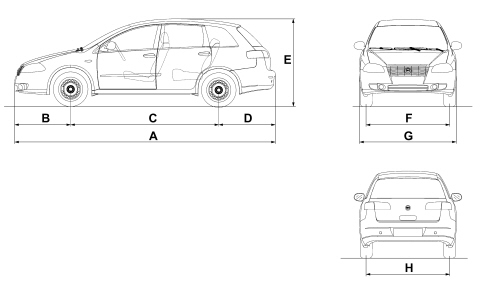

CAR SIZE
Dimensions are expressed in mm and refer to the vehicle equipped with its original tyres.
Height is measured with vehicle unladen.
| 1.8 | 2.2 | 1.9 Multijet 8v | 1.9 Multijet 16v | 2.4 Multijet 20v c.a. | |
|---|---|---|---|---|---|
| A (mm) | 4756 | 4756 | 4756 | 4756 | 4756 |
| B (mm) | 1021 | 1021 | 1021 | 1021 | 1021 |
| C (mm) | 2700 | 2700 | 2700 | 2700 | 2700 |
| D (mm) | 1035 | 1035 | 1035 | 1035 | 1035 |
| E (mm) | 1597 (*) | 1597 (*) | 1597 (*) | 1597 (*) | 1597 (*) |
| F (mm) | 1514 (**) | 1514 (**) | 1514 (**) | 1514 (**) | 1514 (**) |
| G (mm) | 1775 | 1775 | 1775 | 1775 | 1775 |
| H (mm) | 1495 (**) | 1495 (**) | 1495 (**) | 1495 (**) | 1495 (**) |
(*) 1618 mm with carrier bars; small variations in size are possible depending on the dimensions of the rims
(**) Kerb weight with 3 people on board
Luggage compartment capacity (V.D.A. standards): dm3 500
Luggage compartment volume (VDA standard) with back seat folded down: dm3 893
Maximum luggage compartment capacity (V.D.A. standards): dm3 1610
