Engine oil recovery pipe - r + r

Operation 1080D30 · Crankcase vapour/gas recirculation system

Removing

Position the car on the ramp.

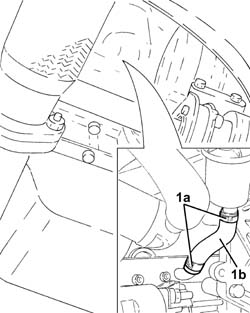

1. Loosen the bands (1a) and remove the engine oil vapour recovery pipe (1b).

Refitting

Place the engine oil vapour recovery pipe in its seat and secure it using the bands.
