STARTER MOTOR - R+R

Operation 5520B10 · STARTER MOTOR AND COMPONENTS

Removing

- Position the vehicle on the lift.

Op. 7055B54 UNDER-ENGINE GUARD - R R

- Disconnect the negative battery terminal.

- Raise the vehicle.

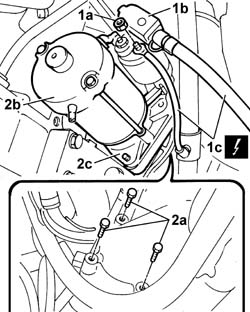

1. Undo the nut (1a), remove the protective cover (1b) and disconnect the starter motor supply leads (1c).

2. Undo the retaining bolts (2a) and remove the starter motor (2b), complete with spacer (2c).

2.3 JTD 16V

Refitting

- Position the starter motor spacer.

All versions

- Connect the starter motor electrical wiring and close the protective cover.

- Lower the vehicle.

- Connect the negative battery terminal.

Op. 7055B54 UNDER-ENGINE GUARD - R R

- Remove the vehicle from the lift.

2.3 JTD 16V, 2.8 JTD 8V

- Fit the starter motor and tighten the retaining bolts to torque.

2.0 JTD 8V

- Fit the starter motor and tighten the retaining bolts to torque.

2.0 16V

- Fit the starter motor and tighten the retaining bolts to torque.
