INTRODUCTION - ABS SYSTEM PIPES

CONSTRUCTION SPECIFICATIONS

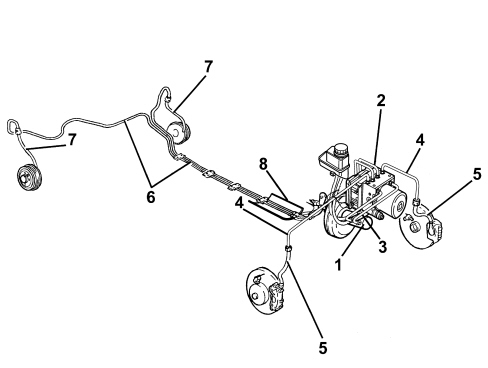

VIEW OF ASSEMBLY

1 - Brake pump

2 - ABS control unit

3 - Pipes from brake pump to ABS control unit

4 - Rigid pipes from control unit to flexible front brake pipes

5 - Front caliper flexible pipes

6 - Rigid pipes from control unit to flexible rear brake pipes

7 - Flexible rear brake pipes

8 - Rear brake pipes guard

The ABS pipes can be divided into three sections:

- pipes from the brake pump to the ABS control unit which, on versions with ESP, have a larger diameter and a flexible section

- rigid connecting pipes from the ABS control unit to the front and rear flexible pipes. The rear brake pipes are divided into two sections, for fitting requirements, and they are protected by a special shield in the section exposed to the risk of damage.

- flexible connecting pipes between the rigid pipes and the brake calipers.

The rigid and flexible pipes are secured to the bodyshell by means of special brackets and/or fastening springs.
