H001 ignition switch
- Make
- Fiat
- Model
- Grande Punto Factory Service Manual
- Year
- 2005–2012
- Section
- Manual electric controls › H001 ignition switch
Connectors and pin-outsH001 ignition switch

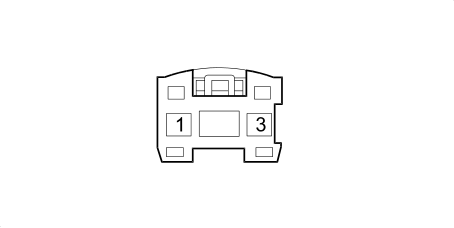

H001 IGNITION SWITCH
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | C | See M001D BODY COMPUTER (DASHBOARD) | 32 | ||
| 2 | R | See M001D BODY COMPUTER (DASHBOARD) | 48 | ||
| 3 | MB | See M001D BODY COMPUTER (DASHBOARD) | 31 | ||
